Single Phase Electric Vehicle Charging

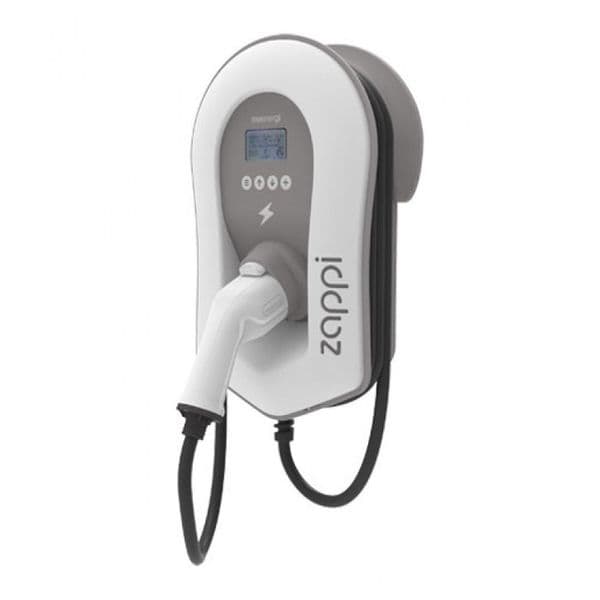

ZAPPI-207TW V2 7Kw 1 Phase White EV Charger Tethered Type 2 Modes ECO, ECO+ & FAST

ZAPPI-207TW V2 7Kw 1 Phase White EV Charger Tethered Type 2 Modes ECO, ECO+ & FAST

£739.00 £615.83 (ex. VAT)
Stock Status: In Stock

ZAPPI-207TW V2 7Kw 1 Phase White Tethered Type 2 Modes ECO, ECO+ & FAST 240V ~50Hz 1Ph

Zappi has special eco charging modes which will benefit homeowners with grid-tied micro-generation systems, like wind or solar generation. Charging current is automatically and continually adjusted in response to on-site generation and household power consumption. In FAST charge mode, zappi operates like an ordinary EV charging station.

Key Product Features:

  • 3 charging modes (Fast, Eco and Eco+)
  • OLEV approved
  • Optimises micro-generation self-consumption
  • Works with solar PV or wind turbine systems
  • Economy tariff sense input
  • Programmable timer function
  • Charge and event logging
  • Pin-code lock function
  • Tap operated display backlight
  • Built-in RCD protection
  • Integral cable holster
  • Remote control and monitoring add-on option
  • Supplied with clip-on grid current sensor

Technical Data:

  • Rated Power: 7kW (1-ph)
  • Rated Supply: Voltage 230V AC Single Phase
  • Supply Frequency: 50 Hz
  • Rated Current: 32A max
  • Standby Power Consumption: 3W
  • Earth Leakage Protection: Integral 30mA Type A RCD (EN 61008) + 6mA DC protection (EN 62955)
  • Economy Tariff Sense Input: 230V AC sensing (4.0kV isolated)
  • Wireless Interface: 868 MHz (proprietary protocol) for wireless sensor and remote monitoring options
  • Grid Current Sensor: 100A max. primary current, 16mm max. cable diameter
  • Supply Cable Entry: Rear, bottom or side
  • Enclosure Dimensions: 439 x 282 x 122mm
  • Protection Degree: IP65 (weatherproof)
  • Enclosure Material: ABS 6 & 3mm (UL 94 flame retardant) colours: white RAL 9016 and grey RAL 9006
  • Operating Temperature: -25°C to +40°C
  • Circuit Breaker: 40A curve B (2-pole 1-ph)
  • Earthing Arrangement TN : Can be connected to the PME supply. Complies with BS 7671:2018, 722.411.4.1 (iii)
  • Earthing Arrangement TT : Earth resistance < 200 Ω according to BS 7671:2018, or < 100 Ω for some vehicles

PDF Data:


PDF Installation Data:
