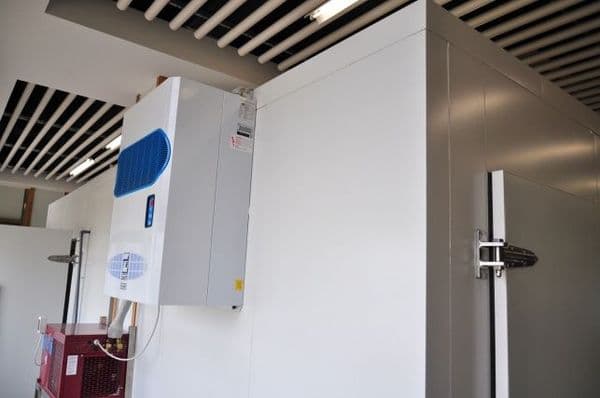

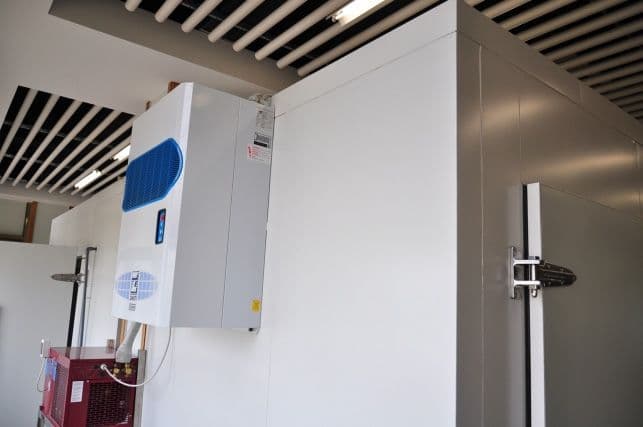

An all in one -5DegC to 5DegC chiller cold room plant Through wall type non weatherproof packaged unit in plug-and-play configuration, suitable for installation on the chiller wall within a building, wall kit supplied loose.

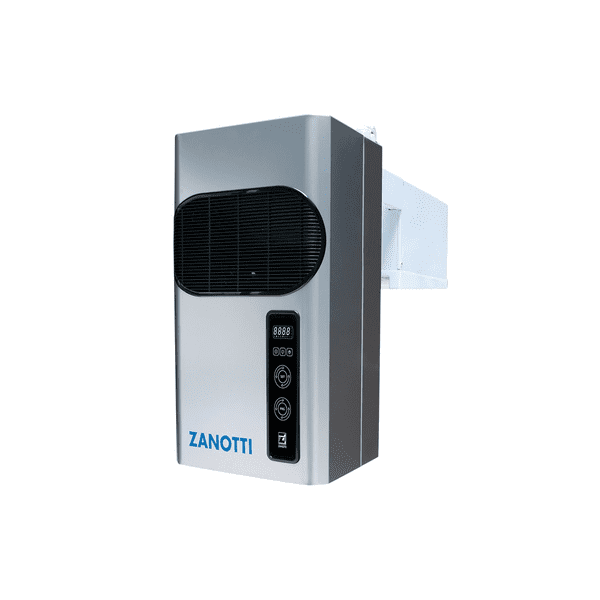

The Zanotti MGM320EB11XB is a high-performance packaged chiller refrigeration unit designed for efficient cooling in various applications. This monoblock unit features an integrated electrical cabinet and control panel, simplifying installation and operation. It is equipped with a robust 1 hp hermetic compressor that includes integral protection, ensuring reliable and safe performance. The use of R134A refrigerant fluid and gas expansion by capillary guarantees optimal cooling efficiency and environmental compliance.
One of the standout features of the MGM320EB11XB is its cyclic defrosting by hot gas, which helps maintain consistent cooling performance and extends the unit's lifespan by preventing ice build-up. Additionally, the unit boasts an automatic elimination of condensation water, reducing maintenance requirements and ensuring continuous operation. The chiller also includes essential wiring, such as the line cable, door microphone cable, ceiling light cable, and lamp, making it a comprehensive solution for cooling needs.
The Zanotti MGM320EB11XA is designed to provide reliable and efficient cooling with minimal maintenance. Its hermetic compressor and integrated protection ensure that the unit operates safely under various conditions. The automatic features, such as the elimination of condensation water and cyclic defrosting, contribute to its low maintenance requirements and extended operational life.
The Zanotti MGM320EB11XB R134a Packaged Chiller Refrigeration Mono-block is a versatile and efficient cooling solution ideal for a range of applications. Its integrated design, robust compressor, and advanced features make it a reliable choice for maintaining optimal temperatures in different settings. Whether used in commercial or industrial environments, this chiller provides consistent performance and ease of use, backed by Zanotti's reputation for quality and innovation.
Key Product Features:
- Integrated Control Panel: Simplifies operation with a built-in control panel.
- Hermetic Compressor: 1 hp compressor with integral protection for reliable performance.
- Efficient Refrigerant: Utilizes R134A fluid for optimal cooling efficiency.
- Cyclic Defrosting: Features hot gas defrosting to prevent ice build-up.
- Automatic Condensation Elimination: Reduces maintenance by automatically removing condensation water.
Technical Specifications:
- Cooling Capacity: 1237 W / 11 m³ at 0°C room temperature
- Nominal Power Consumption: 0.70 kW
- Voltage: 400V / 1~ / 50 Hz
- Nominal Absorbed Intensity: 4.3 AMP
- Weight: 56 kg
- Condenser Air Flow: 600 m³/h
- Evaporator Air Flow: 600 m³/h
- Air Projection: 4 m
