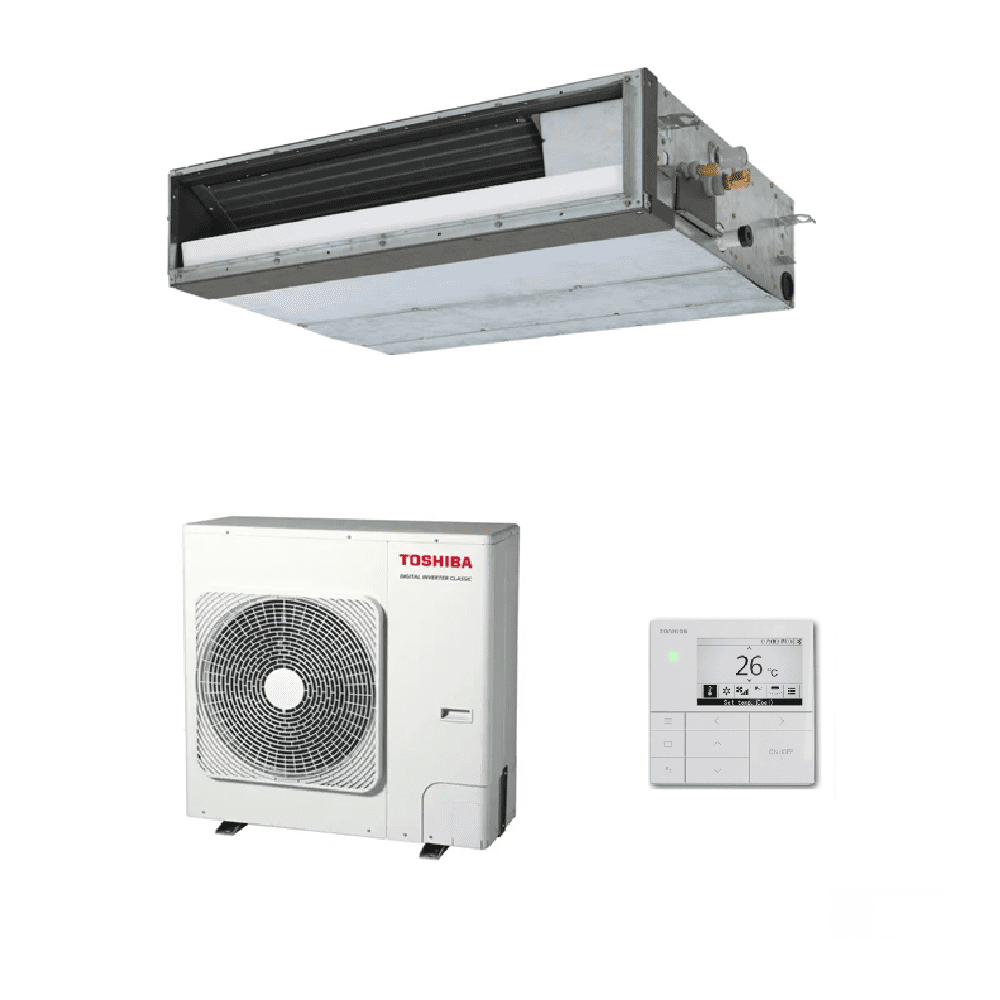

This Kit Includes:

• 1 × Toshiba Standard Ducted Indoor Unit RAV-HM1101BTP-E
  High-capacity 9.5kW cooling / 10.0kW heating ducted indoor chassis with deep 275 × 1400 × 750mm frame, adjustable air pressure, quiet operation and flexible ducting options for medium-large commercial HVAC applications.

• 1 × Toshiba Digital Inverter Outdoor Unit RAV-GV1101ATP-E (Single-Phase)
  Heavy-duty 220-240V~50Hz/60Hz Digital Inverter outdoor unit delivering stable performance, strong airflow, energy-efficient operation and wide temperature range capability for demanding installations.

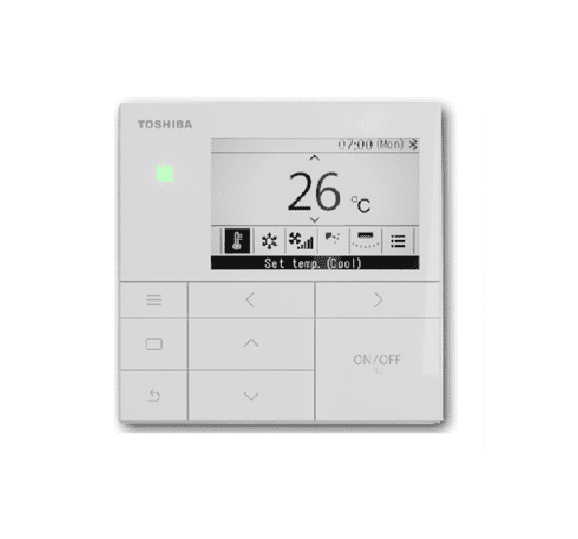

• 1 × Toshiba RBC-AMSU52-E Wired Controller
  Professional wired controller with advanced scheduling, fan control, temperature precision and installer configuration menus.

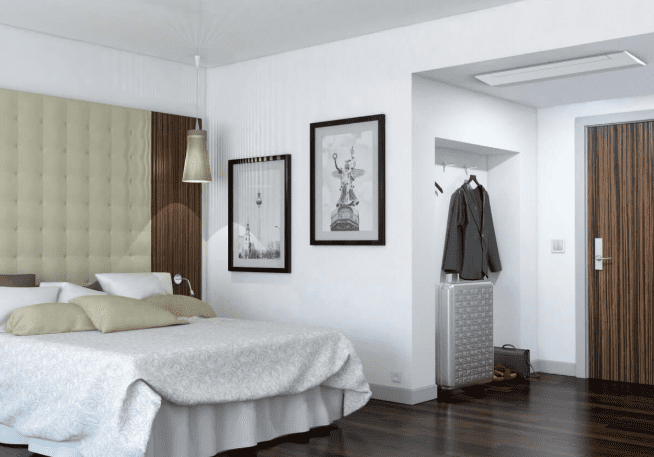

High-performance ducted solution for offices, hospitality, retail and engineered HVAC installations

The Toshiba RAV-HM1101BTP-E ducted system provides robust heating and cooling performance for larger commercial and residential environments. With an output of 9.5kW cooling and 10.0kW heating, this system is ideal for open-plan offices, medium retail spaces, hospitality rooms, and multi-room duct networks. Its adjustable static pressure (120–30Pa) supports a wide range of duct runs, while the slim yet extended chassis ensures strong airflow delivery across extended layouts. The Digital Inverter outdoor unit guarantees efficient, quiet and stable performance for continuous all-season use.

Key Product Features:

• High-capacity 9.5kW cooling / 10.0kW heating

• Extended 1400mm duct chassis for enhanced airflow distribution

• Adjustable external static pressure: 120–30Pa

• Quiet indoor operation: 40–36–33 dB(A)

• Advanced Digital Inverter outdoor unit

• Wide airflow delivery: 583 / 458 / 350 l/s

• Powerful outdoor airflow up to 3000–833 m³/h

• Gravity drain + high-lift pump compatibility

• Compact outdoor footprint (630 × 800 × 300mm)

• Compatible with wired or infrared controls

• R32 refrigerant for reduced carbon impact

• Up to 30m pipe run allowed

• Ideal for commercial and technical HVAC applications

Technical Specifications:

Cooling Capacity: 9.5kW
Heating Capacity: 10.0kW
UK Cooling Total/Sensible: 9.00 / 7.80kW
UK Heating: 5.5kW
SEER / SCOP: 5.10–3.80 – A / A
Indoor Weight: 40–45kg
Outdoor Weight: 40–45kg
Indoor Dimensions (H×W×D): 275 × 1400 × 750mm
Outdoor Dimensions (H×W×D): 630 × 800 × 300mm
Indoor Airflow (H-M-L): 583 – 458 – 350 l/s
External Static Pressure: 120 – 30Pa
Outdoor Airflow (High): 3000 – 833 m³/h
Sound Pressure (H-M-L): 40 – 36 – 33 dB(A)
Outdoor Sound Level: 51 / 53 dB(A)
Suggested Power & Fuse Rating: 220/240-1-50 & 20A
Interconnecting Cable: (3C+E)
Flare Connections (Gas/Liquid): 5/8″ – 3/8″
Min/Max Pipe Length – Height: 5/30m – 30m
Refrigerant – Additional Charge: R32 / 1.7kg

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
