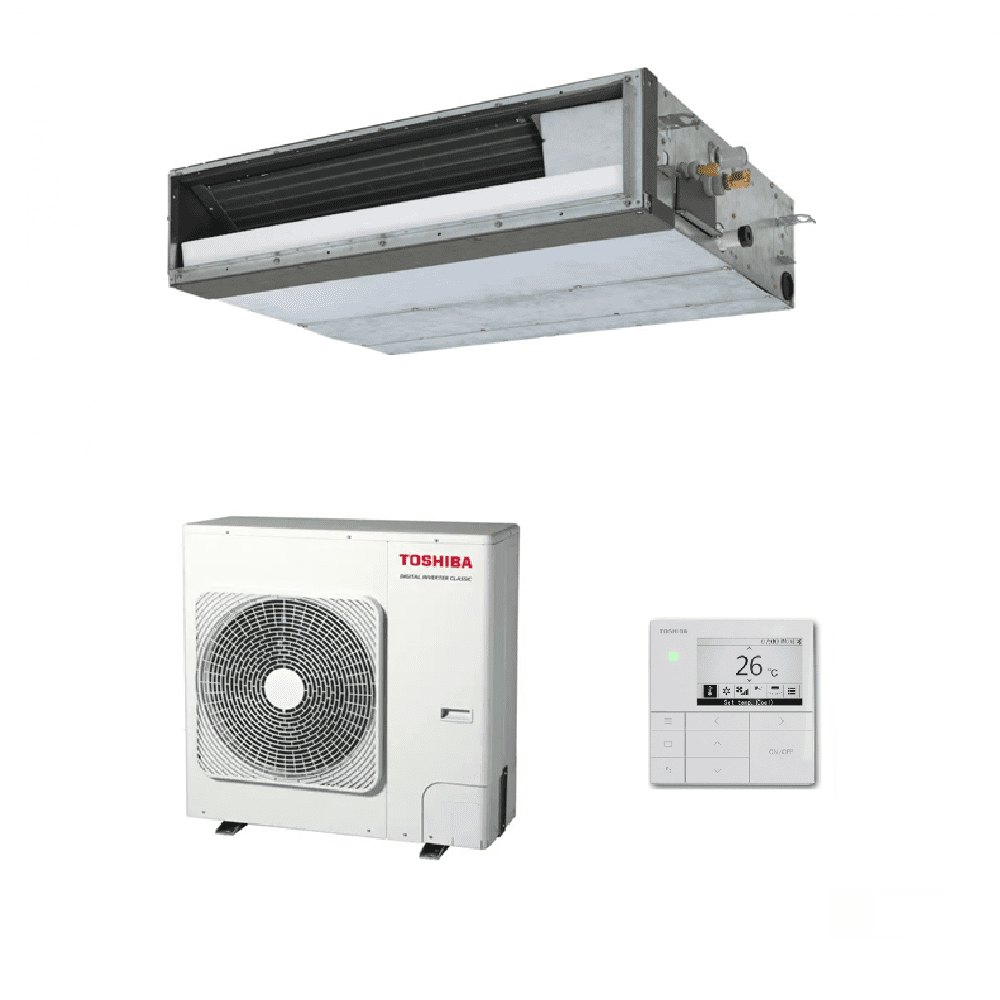

This Kit Includes:

1 × Toshiba RAV-HM1101BTP-E Standard Ducted Indoor Unit– 9.5kW Cooling / 10.0kW Heating
– High static capability (120–30Pa)
– Ultra-slim 275mm chassis for tight ceiling voids
– Quiet DC fan technology


1 × Toshiba RAV-GV1101AT8P-E Digital Inverter Outdoor Unit (Three-Phase) – 9.5kW Cooling / 10.0kW Heating
– Heavy-duty 380-415V~50Hz/60Hz 3-Phase operation
– A/A efficiency
– Large airflow capability with wide operating range
– Commercial-grade chassis engineered for continuous duty

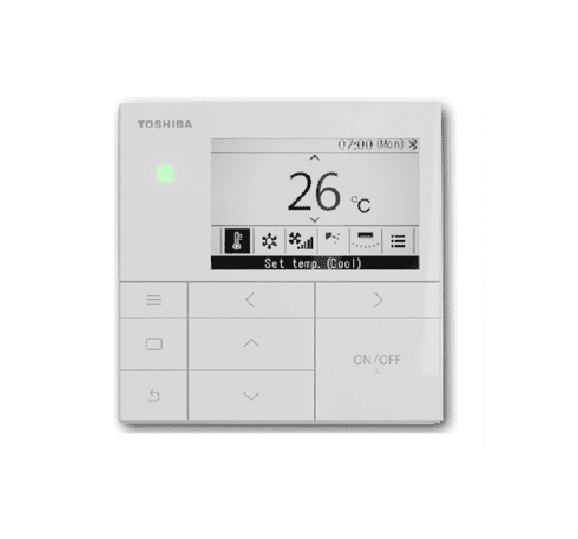

1 × Toshiba RBC-AMSU52-E Wired Controller
Fully featured wired control for commercial operation.

High-Performance Three-Phase Ducted System for Commercial Spaces

This Toshiba Digital Inverter Classic ducted system is a robust 3-phase heating and cooling solution designed for medium to large commercial environments where stability, efficiency and long duct runs are essential. The HM1101BTP-E indoor unit delivers strong airflow performance with low noise levels, making it ideal for offices, restaurants, retail units, schools, banks and open-plan areas.

The three-phase RAV-GV1101AT8P-E outdoor unit provides exceptional electrical stability and reduced start-up load, a major advantage for commercial buildings with heavier HVAC loads. Its inverter-driven compressor ensures efficient part-load operation and reliable performance year-round.

This system is designed for users who require dependable, quiet and energy-efficient ducted air conditioning with the installation flexibility required in modern commercial buildings.

Key Product Features:

• 9.5kW cooling / 10.0kW heating output
• Three-phase 380–415V~50Hz/60Hz outdoor unit
• Ultra-slim 275mm indoor unit for low ceiling voids
• High static pressure range (120–30Pa) for ducting flexibility
• Quiet indoor operation: 40 / 36 / 33 dB(A)
• Large outdoor airflow: 4080–1133 m³/h
• Inverter technology for strong part-load efficiency
• R32 refrigerant for improved environmental performance
• Long pipe runs up to 30m
• Detachable panels for easier servicing
• Wired controller included (RBC-AMSU52-E)
• Ideal for offices, retail, hospitality, classrooms and larger workspaces

Technical Specifications:

Category: Indoor Unit

Model: RAV-HM1101BTP-E
Cooling Capacity: 9.5 kW
Heating Capacity: 10.0 kW
UK Cooling (Total/Sensible): 9.00 / 7.80 kW
UK Heating: 5.5 kW
SEER / SCOP / Class: 5.30 / 3.80 — A/A
Dimensions (H × W × D): 275 × 1400 × 750 mm
Weight: 40–59 kg
Airflow (H–M–L): 583 / 458 / 350 l/s
External Static Pressure: (120–30) Pa
Sound Pressure (H–M–L): 40 / 36 / 33 dB(A)
Pipe Connections (Gas–Liquid): 5/8″ – 3/8″
Min–Max Pipe Length / Max Height: 5–30 m / 30 m
Chargeless Pipe Length: 30 m
Refrigerant: R32
Additional Charge: 1.7 kg base charge

Category: Outdoor Unit

Model: RAV-GV1101AT8P-E
Cooling Capacity: 9.5 kW
Heating Capacity: 10.0 kW
Efficiency Class: A/A
Dimensions (H × W × D): 710 × 900 × 320 mm
Weight: 40–57 kg
Sound Pressure (Outdoor): 53–60 dB(A)
Power Supply: 380–415V~50Hz/60Hz (3-Phase)
Interconnecting Cable: 4C+E (3PH)

Controller

Model: RBC-AMSU52-E
Type: Wired Controller

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
