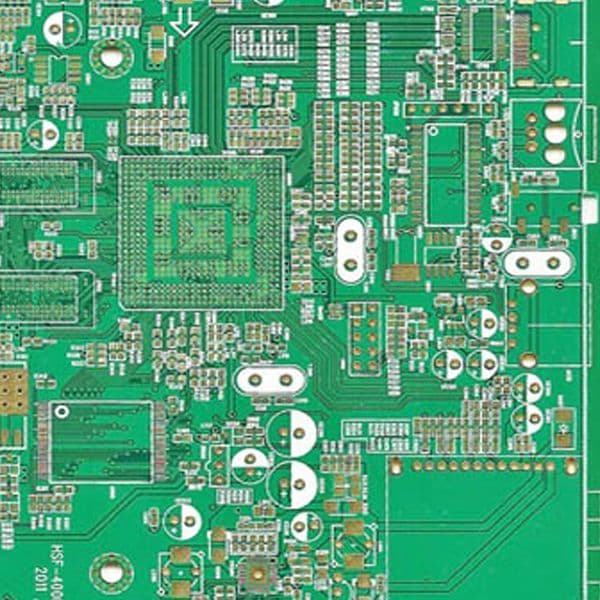

Toshiba Air Conditioning Spare Part 43T6V932 PCB MMK, RAC, RAV, Genuine Toshiba Air Conditioning Spare part.

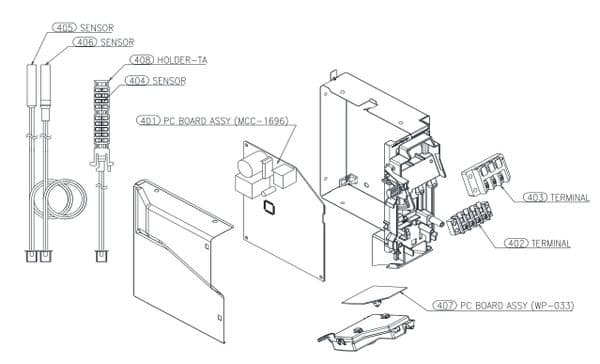

PART NO. 407 ON DRAWING
|
Location No.
|
Part No.
|
Description.
|
|
201
|
43T00770
|
FRONT PANEL ASSY
|
|
202
|
43T00771
|
CAP SCREW ASSY
|
|
203
|
43T09571
|
GRILLE OF AIR INLET ASSY
|
|
204
|
43T80356
|
AIR FILTER
|
|
205
|
43T03416
|
BACK BODY ASSY
|
|
206
|
43T22361
|
VERTICAL LOUVER ASSY
|
|
208
|
4302C106
|
MOTOR-LOUVER
|
|
209
|
43T72349
|
DRAIN PAN ASSY
|
|
210
|
43T2D303
|
GEAR ASSY
|
|
211
|
43T22362
|
HORIZONTAL LOUVER FRONT
|
|
212
|
43T22363
|
HORIZONTAL LOUVER BACK
|
|
213
|
43T70325
|
DRAIN HOSE ASSY
|
|
214
|
43T79322
|
DRAIN CAP
|
|
215
|
43T21492
|
FAN-MOTOR
|
|
216
|
43T20358
|
CROSS FLOW FAN ASSY
|
|
217
|
43T39402
|
BASE BEARING ASSY
|
|
218
|
43T22312
|
BEARING ASSY, MOLD
|
|
219
|
43T39401
|
MOTOR COVER ASSY
|
|
220
|
43T39403
|
MOTOR BAND BACK
|
|
221
|
43T39404
|
MOTOR BAND FRONT
|
|
Location No.
|
Part No.
|
Description
|
|
222
|
43T44671
|
REFRIGERATION CYCLE ASSY
|
|
223
|
43T19333
|
HOLDER, SENSOR
|
|
224
|
43T49381
|
PIPE, SHIELD
|
|
225
|
43T49383
|
SEAL, FRONT
|
|
226
|
43T49384
|
SEAL, UP
|
|
227
|
43T49043
|
HOLDER, PIPE
|
|
228
|
43T49382
|
PIPE FIXTURE
|
|
229
|
43T82345
|
PLATE, INSTALLATION ASSY
|
|
230
|
43T62364
|
TERMINAL COVER ASSY
|
|
231
|
43T66324
|
WIRELESS REMOCO
|
|
232
|
43T83305
|
HOLDER, REMOTE CONTROL
|
|
233
|
43T60511
|
CORD MOTOR LOUVER HR
|
|
236
|
43T91385
|
PACKING BOX
|
|
237
|
43T91382
|
PACKING CUSHION RIGHT
|
|
238
|
43T91383
|
PACKING CUSHION LEFT
|
|
239
|
43T91384
|
PACKING CUSHION CENTER
|
|
240
|
43T85746
|
OWNER'S MANUAL (FOR RAV-GM1101KRTP-E)
|
|
240
|
43T85747
|
OWNER'S MANUAL (FOR RAV-GM1101KRTP-TR)
|
|
241
|
43T62365
|
CLAMP BASE ASSY
|
|
Location No.
|
Part No.
|
Description
|
|
401
|
43T6W633
|
PC BOARD ASSY
|
|
402
|
43T60448
|
TERMINAL
|
|
403
|
43T60331
|
TERMINAL, 3P
|
|
404
|
43T50391
|
SENSOR; THERMOSTAT
|
|
Location No.
|
Part No.
|
Description
|
|
405
|
43T50324
|
SENSOR; HEAT EXCHANGER
|
|
406
|
43T50603
|
TEMPERATURE SENSOR
|
|
407
|
43T6V932
|
PC BOARD ASSY
|
|
408
|
43T63356
|
HOLDER-TA
|
Fits Models:
40VK005C-7S-TEE, 40VK007C-7S-TEE, 40VK009C-7S-TEE, 40VK012C-7S-TEE, MMK-AP0057HP-E, MMK-AP0057HP-E1, MMK-AP0057HP-TR, MMK-AP0057HP-TR1, MMK-AP0077HP-E, MMK-AP0077HP-E1, MMK-AP0077HP-TR, MMK-AP0077HP-TR1, MMK-AP0097HP-E, MMK-AP0097HP-E1, MMK-AP0097HP-TR, MMK-AP0097HP-TR1, MMK-AP0127HP-E, MMK-AP0127HP-E1, MMK-AP0127HP-TR, MMK-AP0127HP-TR1, RAV-RM301KRTP-E, RAV-RM301KRTP-TR, RAV-RM401KRTP-E, RAV-RM401KRTP-TR, RAV-RM561KRTP-E, RAV-RM561KRTP-TR, RAV-RM801KRTP-E, RAV-RM801KRTP-TR, MMK-AP0157HP-E, MMK-AP0187HP-E, MMK-AP0247HP-E, MMK-AP0157HP-TR, MMK-AP0187HP-TR, MMK-AP0247HP-TR, RAV-GM1101KRTP-E, RAV-GM1101KRTP-TR, RAV-GM901KRTP-E, RAV-GM901KRTP-TR, 40VK015S-7S-TEE, 40VK018S-7S-TEE, 40VK024S-7S-TEE
