Toshiba Air Conditioning Spare Part 4312C102 Replaces 4312C071 MOTOR, FAN, DC280V, STF-340A1000-1 MMY-MAP, Genuine Toshiba Air Conditioning Spare Part.

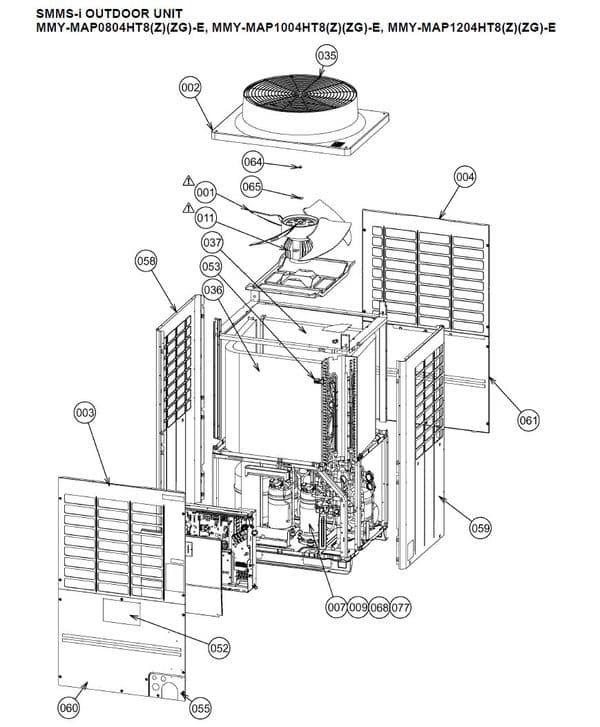

PART 11 ON DRAWING
4312C102
Fits Models:
MMY-MAP0804HT8-E, MMY-MAP0804HT8-TR, MMY-MAP0804HT8Z-E, MMY-MAP0804HT8ZG-E, MMY-MAP0804HT8ZGTR, MMY-MAP0804HT8Z-TR, MMY-MAP0804T8-E, MMY-MAP0804T8Z-E, MMY-MAP0804T8ZG-E, MMY-MAP1004HT8-E, MMY-MAP1004HT8-TR, MMY-MAP1004HT8Z-E, MMY-MAP1004HT8ZG-E, MMY-MAP1004HT8ZGTR, MMY-MAP1004HT8Z-TR, MMY-MAP1004T8-E, MMY-MAP1004T8Z-E, MMY-MAP1004T8ZG-E, MMY-MAP1204HT8-E, MMY-MAP1204HT8-TR, MMY-MAP1204HT8Z-E, MMY-MAP1204HT8ZG-E, MMY-MAP1204HT8ZGTR, MMY-MAP1204HT8Z-TR, MMY-MAP1204T8-E, MMY-MAP1204T8Z-E, MMY-MAP1204T8ZG-E, MMY-MAP1404HT8-E, MMY-MAP1404HT8-TR, MMY-MAP1404HT8Z-E, MMY-MAP1404HT8ZG-E, MMY-MAP1404HT8ZGTR, MMY-MAP1404HT8Z-TR, MMY-MAP1404T8-E, MMY-MAP1404T8Z-E, MMY-MAP1404T8ZG-E, MMY-MAP1604HT8-E, MMY-MAP1604HT8-TR, MMY-MAP1604HT8Z-E, MMY-MAP1604HT8ZG-E, MMY-MAP1604HT8ZGTR, MMY-MAP1604HT8Z-TR, MMY-MAP1604T8Z-E, MMY-MAP1604T8ZG-E
|
Ref. No.
|
Part No.
|
Description
|
Q’ty/Set MMY-
|
|
MAP0804H T8(Z)(ZG)-E
|
MAP1004H T8(Z)(ZG)-E
|
MAP1204H T8(Z)(ZG)-E
|
MAP1404H T8(Z)(ZG)-E
|
MAP1604H T8(Z)(ZG)-E
|
|
001
|
43120252
|
FAN, PROPELLER
|
1
|
1
|
1
|
1
|
1
|
|
002
|
43100471
|
CABINET, AIR OUTLET
|
1
|
1
|
1
|
1
|
1
|
|
003
|
43100472
|
CABINET, AIR INLET, FRONT
|
1
|
1
|
1
|
|
|
|
004
|
43100473
|
CABINET, AIR INLET, BACK
|
1
|
1
|
1
|
|
|
|
005
|
43100474
|
CABINET, AIR INLET, FRONT
|
|
|
|
1
|
1
|
|
006
|
43100475
|
CABINET, AIR INLET, BACK
|
|
|
|
1
|
1
|
|
007
|
43141518
|
COMPRESSOR, DA421A3FB-29M
|
2
|
2
|
2
|
3
|
3
|
|
008
|
43151283
|
SWITCH, PRESSURE ACB-4UB32W
|
2
|
2
|
2
|
3
|
3
|
|
009
|
43157276
|
HEATER, CASE, 29W 240V
|
2
|
2
|
2
|
3
|
3
|
|
010
|
43157290
|
HEATER, CASE, 55W 240V
|
1
|
1
|
1
|
1
|
1
|
|
011
|
4312C071
|
MOTOR, FAN, DC280V,STF-340A1000-1
|
1
|
1
|
1
|
1
|
1
|
|
012
|
43146724
|
VALVE, BALL, SBV-JA5GTC-1
|
|
|
|
1
|
1
|
|
013
|
43146741
|
VALVE, PACKED, 9.52
|
1
|
1
|
1
|
1
|
1
|
|
014
|
43046498
|
VALVE, PACKED, 12.7
|
1
|
1
|
1
|
|
|
|
015
|
4314N041
|
VALVE, BALL, 25.4
|
1
|
1
|
1
|
1
|
1
|
|
016
|
4314N038
|
COIL, SOLENOID, VPV-MOAJ510B0
|
6
|
6
|
6
|
8
|
8
|
|
017
|
4314N104
|
COIL, VALVE, 4WAY, ASSY
|
1
|
1
|
1
|
1
|
1
|
|
018
|
43146711
|
VALVE, 2WAY,VPV-122DQ1
|
5
|
5
|
5
|
5
|
5
|
|
019
|
4314N028
|
COIL, PMV,HAM-MD12TF-6
|
2
|
2
|
2
|
3
|
3
|
|
020
|
43146712
|
VALVE, 2WAY,VPV-303DQ1
|
|
|
|
2
|
2
|
|
021
|
43146730
|
VALVE, 2WAY,VPV-603DQ2
|
1
|
1
|
1
|
1
|
1
|
|
022
|
4314N101
|
VALVE, 4WAY, ASSY
|
1
|
1
|
1
|
1
|
1
|
|
023
|
43146734
|
VALVE, CHECK,ZGV-S55B-A
|
1
|
1
|
1
|
1
|
1
|
|
024
|
43146742
|
VALVE, CHECK,ZGV-S66B-A
|
|
|
|
1
|
1
|
|
025
|
4314N043
|
VALVE, PMV,HAM-BD28TF-1
|
2
|
2
|
2
|
3
|
3
|
|
026
|
4314N044
|
VALVE, 2WAY,FDF3A06
|
3
|
3
|
3
|
3
|
3
|
|
027
|
4314N047
|
COIL, VALVE, 2WAY,FQ-G593
|
3
|
3
|
3
|
3
|
3
|
|
028
|
43148241
|
SEPARATOR,5L
|
1
|
1
|
1
|
|
|
|
029
|
43148249
|
SEPARATOR,6L
|
|
|
|
1
|
1
|
|
030
|
43148247
|
TANK, LIQUID,11L
|
1
|
1
|
1
|
|
|
|
031
|
43148248
|
TANK, LIQUID,20L
|
|
|
|
1
|
1
|
|
032
|
43148245
|
ACCUMULATOR,28L
|
|
|
|
1
|
1
|
|
033
|
43148246
|
ACCUMULATOR,24L
|
1
|
1
|
1
|
|
|
|
|
|
|
|
|
|
|
|
|
035
|
43119506
|
GUARD, FAN
|
1
|
1
|
1
|
1
|
1
|
|
036
|
4314G295
|
CONDENSER ASSY, TWO ROW, LEFT
|
1
|
1
|
1
|
|
|
|
037
|
4314G296
|
CONDENSER ASSY, TWO ROW, RIGHT
|
1
|
1
|
1
|
|
|
|
038
|
4314G297
|
CONDENSER ASSY, THREE ROW, LEFT
|
|
|
|
1
|
1
|
|
039
|
4314G298
|
CONDENSER ASSY, THREE ROW, RIGHT
|
|
|
|
1
|
1
|
|
040
|
43146715
|
VALVE, CHECKED,BCV-804DY
|
2
|
2
|
2
|
3
|
3
|
|
041
|
43146721
|
VALVE, CHECK,BCV-603DY
|
1
|
1
|
1
|
1
|
1
|
|
042
|
37547751
|
VALVE, CHECKED,BCV-302DY
|
3
|
3
|
3
|
4
|
4
|
|
043
|
43146676
|
JOINT,CHECK
|
3
|
3
|
3
|
3
|
3
|
|
044
|
43149317
|
RUBBER, SUPPORTER, PIPE,25.4
|
2
|
2
|
2
|
2
|
2
|
|
045
|
43149338
|
RUBBER, SUPPORTER, PIPE,22.2
|
1
|
1
|
1
|
2
|
2
|
|
046
|
43149318
|
RUBBER, SUPPORTER, PIPE,19.0
|
3
|
3
|
3
|
5
|
5
|
|
047
|
43149319
|
RUBBER, SUPPORTER, PIPE,15.9
|
1
|
1
|
1
|
5
|
5
|
