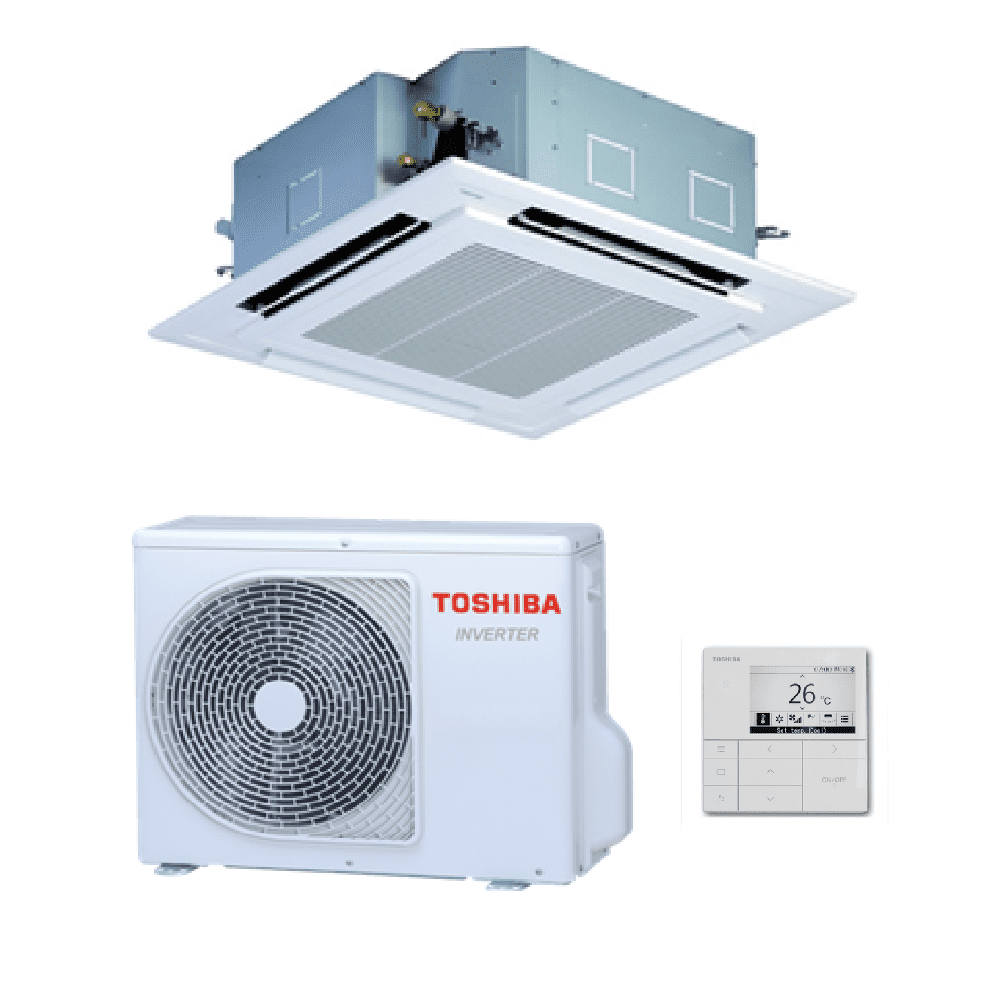

This Kit Includes:

1 × Toshiba Compact Ceiling Cassette Indoor Unit RAV-HM901UTP-E
8.0kW Cooling / 9.0kW Heating | 220-240V~50Hz | Wide-Airflow Commercial Cassette

1 × Toshiba Cassette Fascia Panel RBC-U33P-E

1 × Toshiba Digital Inverter Outdoor Unit RAV-GM901ATP-E (Single-Phase)
8.0kW Cooling / 9.0kW Heating | 220-240V~50Hz Heavy-Duty Operation

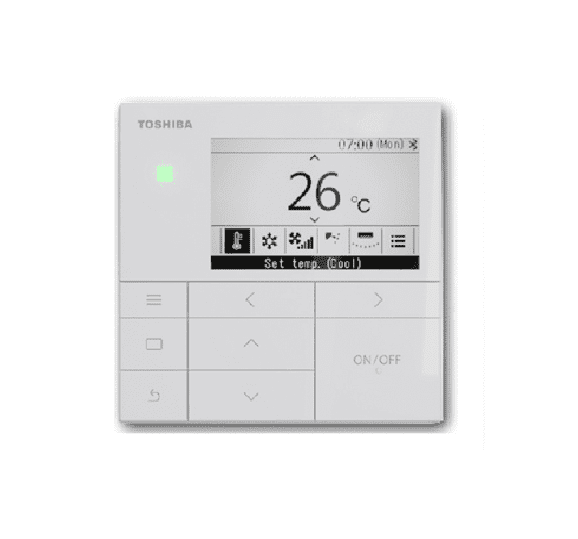

1 × Toshiba Wired Controller RBC-AMSU52-E

High-capacity cassette for powerful commercial heating and cooling

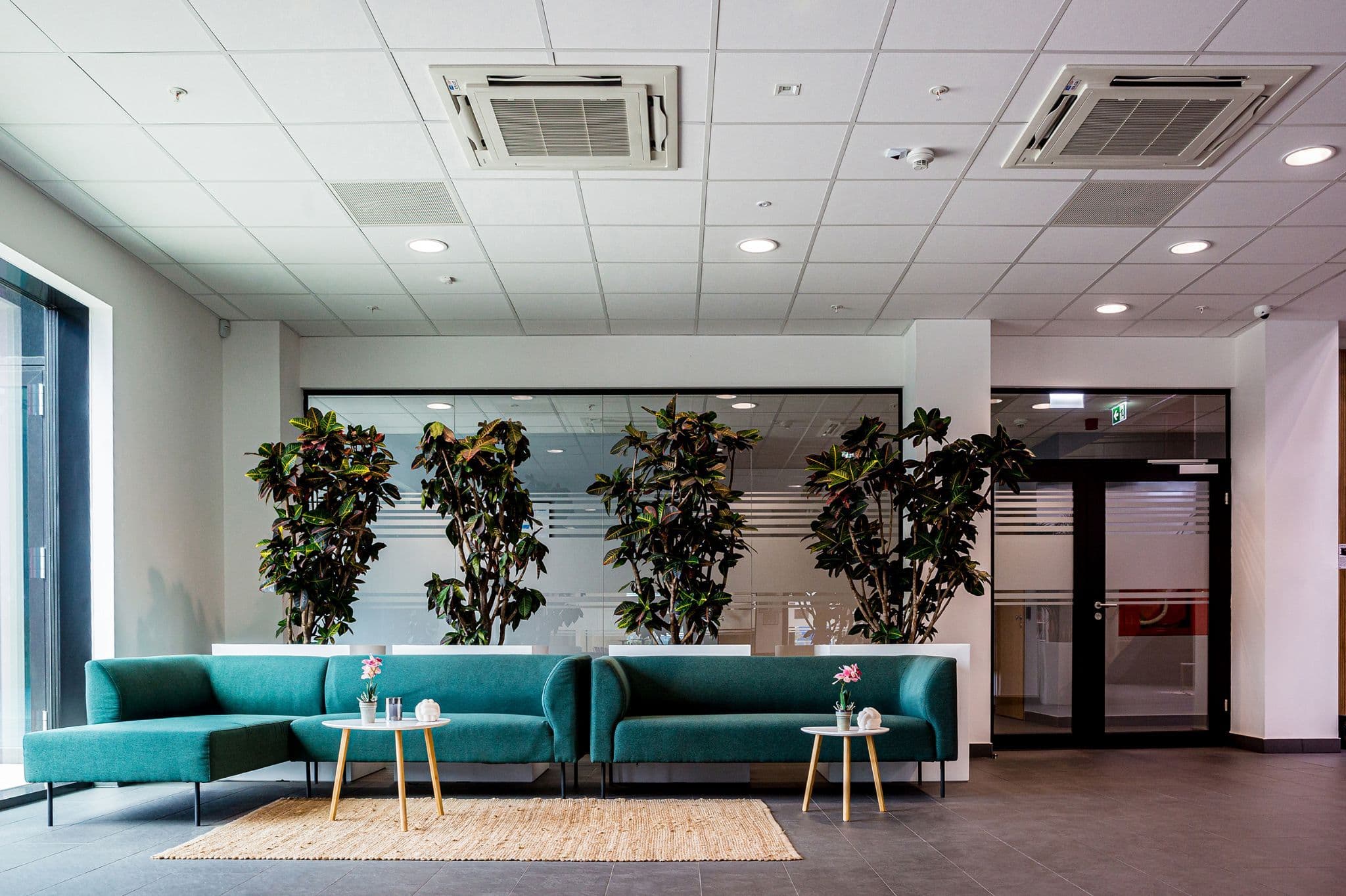

The Toshiba RAV-HM901UTP-E standard cassette provides strong, uniform airflow and large-area coverage, making it ideal for offices, hospitality venues, classrooms and retail environments. This cassette delivers enhanced throw distance and efficient temperature distribution.

Paired with the robust RAV-GM901ATP-E Digital Inverter outdoor unit, the system ensures stable performance, excellent seasonal efficiency and powerful heating output even in colder climates. The system includes the fascia panel and Toshiba’s AMSU52-E wired controller for full zoning and comfort management.

Engineered for reliability, quiet operation and premium efficiency, this package is suitable for open-plan commercial spaces, shops, reception areas and high-demand environments requiring dependable year-round climate control.

Key Product Features:

• 8.0kW cooling / 9.0kW heating
• Large 840×840 cassette – ideal for bigger commercial rooms
• High airflow performance: 444–306–250 l/s
• Strong heating output: 9.0kW for year-round comfort
• Advanced DC motor for quiet, efficient operation
• Energy rating up to A++ / A++
• Outdoor airflow up to 2900–806 m³/h
• Low-profile fascia panel for professional ceiling integration
• Wired controller included
• R32 refrigerant – lower GWP
• Ideal for retail units, offices, classrooms, hospitality, shared commercial spaces

Technical Specifications:

Indoor Unit – RAV-HM901UTP-E
Cooling capacity: 8.0kW
Heating capacity: 9.0kW
UK Cooling Total/Sensible: 7.83 / 6.35kW
UK Heating: 6.12kW
SEER / SCOP / Energy Label: 7.20–4.60 – A++ / A++
Weight: 24–47kg
Dimensions (H×W×D): 319 × 840 × 840 mm
Indoor airflow (H-M-L): 444 – 306 – 250 l/s
Sound pressure (H-M-L): 40 – 36 – 33 dB(A)

Outdoor Unit – RAV-GM901ATP-E
Cooling capacity: 8.0kW
Heating capacity: 9.0kW
Dimensions (H×W×D): 630 × 800 × 300 mm
Outdoor airflow (High): 2900 – 806 m³/h
Sound pressure (OD): 51 / 55 dB(A)
Flare connections: 5/8″ – 3/8″
Min/Max pipe length – Height: 5 / 50 – 30 m
Refrigerant type/charge: R32 / 2.0 kg / 35 g/m
Power supply: 220–240V ~ 1Ph ~ 50Hz
Interconnecting cable: 3C+E

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
