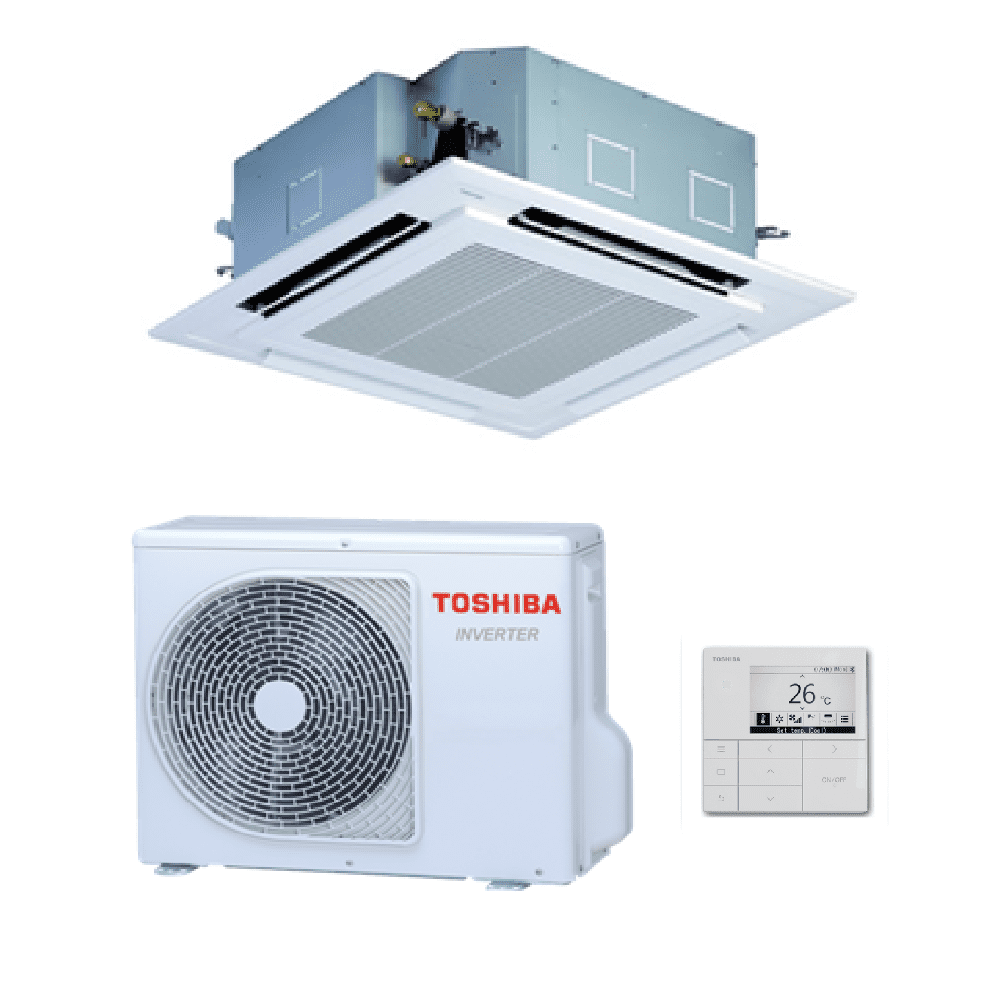

This Kit Includes:

• Toshiba RAV-HM801UTP-E Digital Inverter 4-Way Cassette Indoor Unit 220-240V~50Hz

• Toshiba RAV-GV801ATP-E Digital Inverter Outdoor Unit 6.7kW/23000Btu 220-240V~50Hz

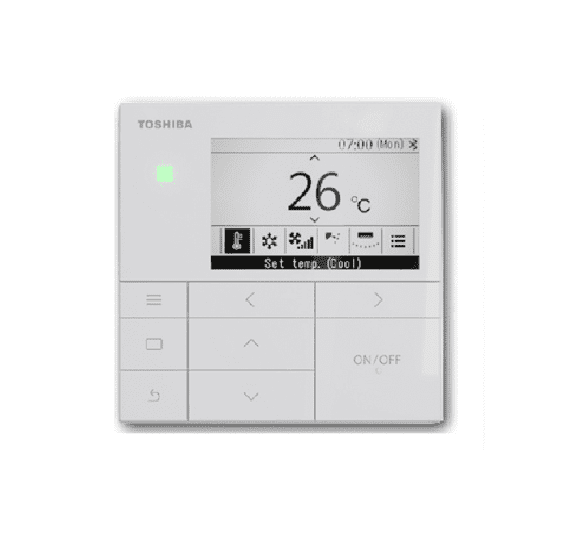

• Toshiba RBC-AMSU52-E Hard-Wired Controller

• 1 x Toshiba Facia Panel RBC- U33P-E

• Installation and user documentation

Product Description:

The Toshiba RAV-HM801UTP-E 4-Way Cassette System is a high-performance commercial air conditioning solution designed for medium to large offices, retail spaces, restaurants and mixed-use commercial environments. Engineered around Toshiba’s Digital Inverter technology, this system delivers stable cooling and heating performance, reduced running costs and long operational life.

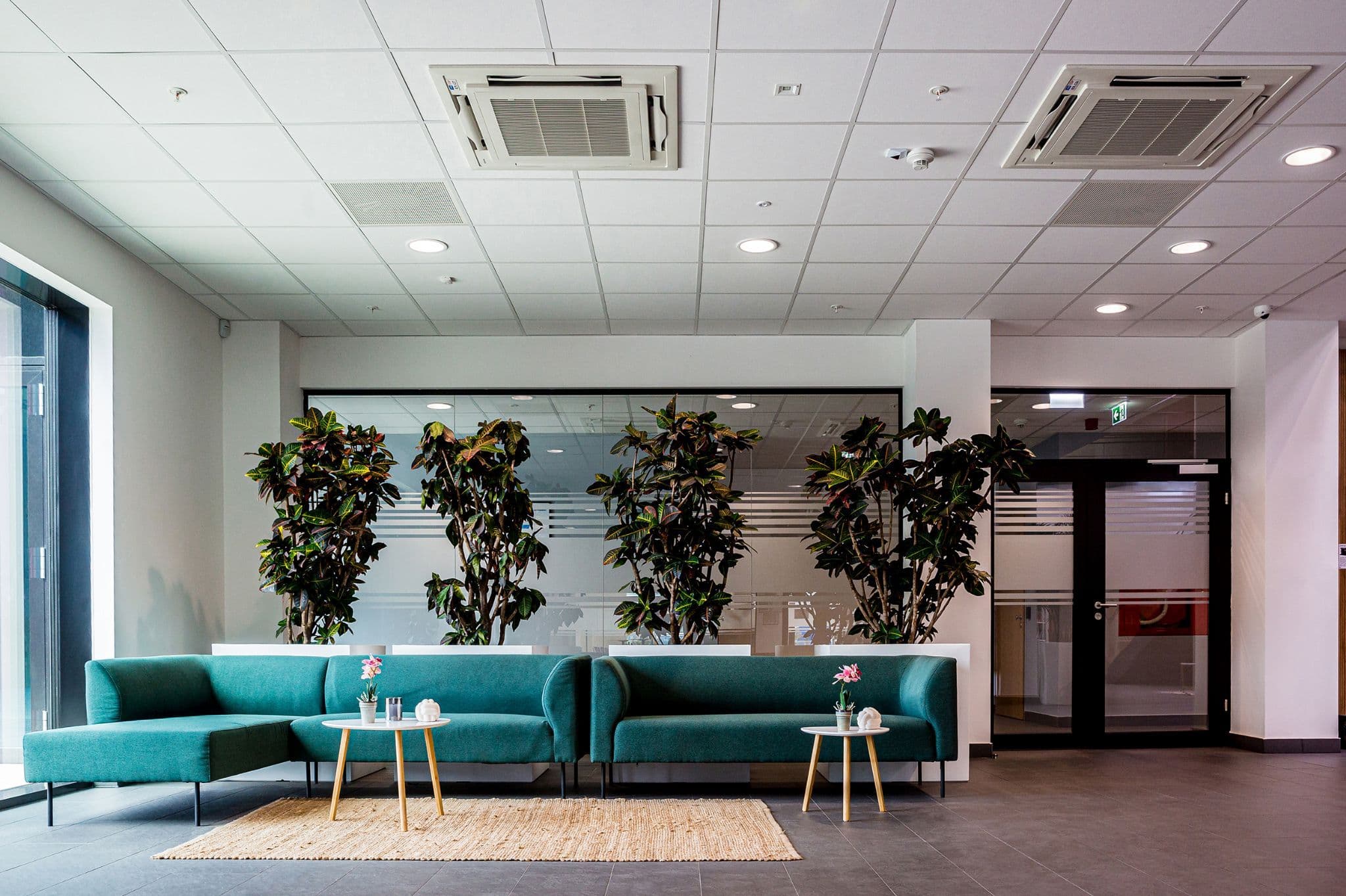

The compact 4-way cassette fits standard ceiling grids and provides even, 360° airflow using intelligent multi-directional louvres. This ensures balanced air distribution with no cold or warm spots, making it ideal for meeting rooms, open-plan areas, hospitality venues and spaces with variable occupancy. A built-in lift pump allows flexible condensate management, simplifying installation across commercial ceiling layouts.

The RAV-HM801UTP-E incorporates Toshiba’s self-cleaning coil function and enhanced drain pan hygiene design to reduce mould build-up and maintain clean airflow. Combined with low indoor sound levels (as low as 41 dB(A)), the unit blends unobtrusively into customer-facing and professional environments.

Paired with the RAV-GV801ATP-E Digital Inverter outdoor unit, the system provides 6.7kW of efficient cooling and 7.0kW of heating while using environmentally friendly R32 refrigerant. The outdoor unit features a high-efficiency DC twin-rotary inverter compressor for smooth modulation and quiet operation even under demanding conditions. Replacement technology compatibility also allows the reuse of suitable existing R410A/R22/R407C pipework, making it an ideal choice for refurbishment projects.

This system offers refined control through the included RBC-AMSU52-E hard-wired controller, providing precise temperature management, scheduling, fan control and multiple energy-saving modes. Together, the HM801UTP-E and GV801ATP-E provide a robust, quiet and highly efficient HVAC solution for commercial applications.

Technical Specifications:

Cooling / Heating Capacity: 6.7 kW / 7.0 kW
UK Total/Sensible Cooling: 6.40 / 5.50 kW
UK Heating: 3.95 kW
Energy Label: A+ Cooling / A Heating
Cooling Range (Min–Max): 2.0 – 8.0 kW
Heating Range (Min–Max): 2.0 – 8.1 kW
Indoor Sound Pressure (H–M–L): 45 – 41 – 35 dB(A)
Outdoor Sound Pressure: 48 – 52 dB(A)
Indoor Airflow (H–M–L): 1150 – 930 – 750 m³/h
Outdoor Airflow (High): 2700 m³/h
Indoor Dimensions (H × W × D): 305 × 840 × 840 mm
Panel Dimensions (H × W × D): 30 × 950 × 950 mm
Indoor Weight: 22 kg
Panel Weight: 4.2 kg
Outdoor Dimensions (H × W × D): 550 × 780 × 290 mm
Outdoor Weight: 39 kg
Interconnecting Cable: 3C+E
Pipe Connections (Liquid / Gas): 3/8″ – 5/8″
Min / Max Pipe Length: 5 – 20 m
Chargeless Pipe Length: 20 m
Refrigerant Additional Charge: R32 / 1.4 kg / 35 g/m
Power Supply: 220–240V~50Hz

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
