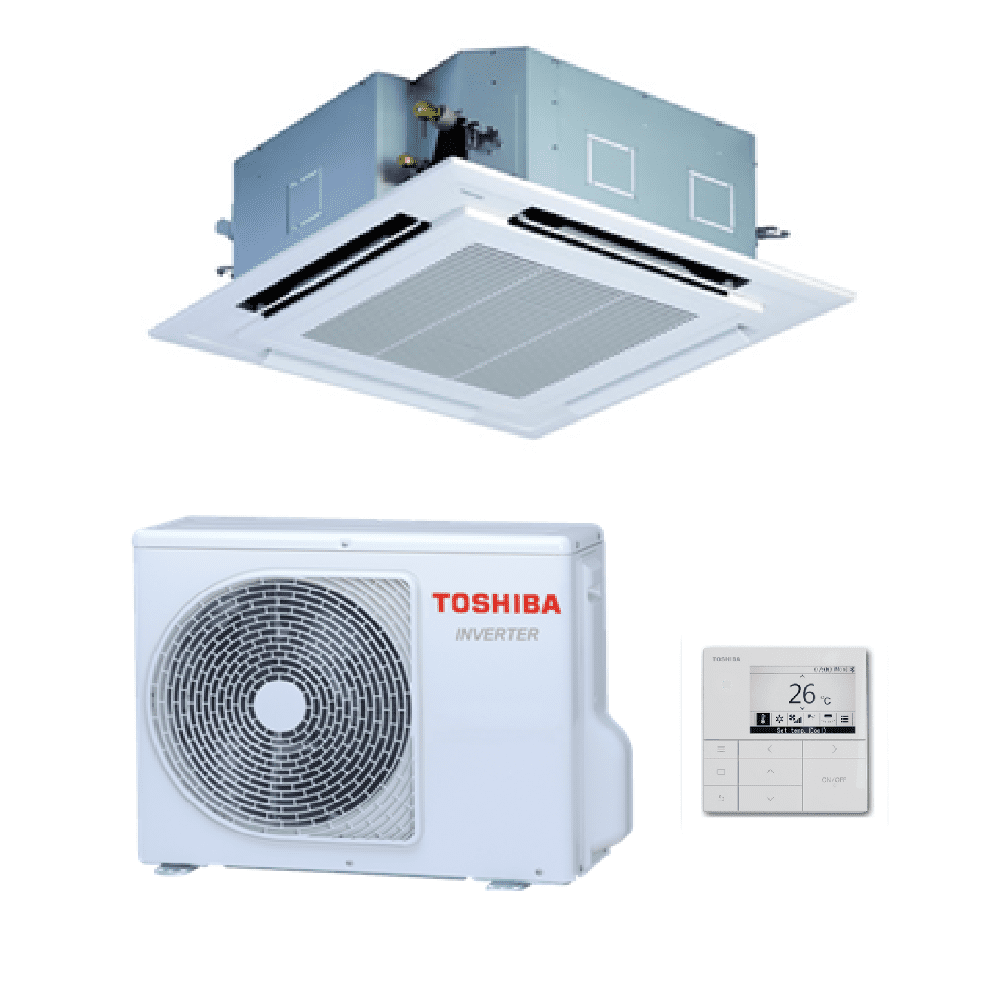

This Kit Includes:
1 x Toshiba RAV-HM561UTP-E Digital Inverter 4-Way Cassette Indoor Unit 220-240V~50Hz
1 x Toshiba RAV-GV561ATP-E Digital Inverter Outdoor Unit 5kW/18000Btu 220-240V~50Hz

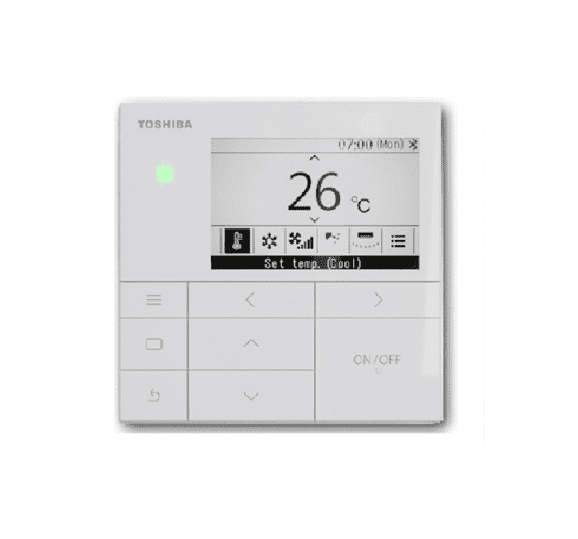

1 x Toshiba RBC-AMSU52-E Hard-Wired Controller
1 x Toshiba Facia Panel RBC- U33P-E
Installation and user documentation
Product Description:
The Toshiba RAV-HM561UTP-E 4-Way Cassette System is a highly efficient commercial cooling and heating solution designed for professional environments such as offices, retail, hospitality spaces, education facilities, medical rooms and public buildings. Featuring Toshiba’s Digital Inverter technology, this system provides stable temperature control, reduced running costs and exceptionally quiet operation.

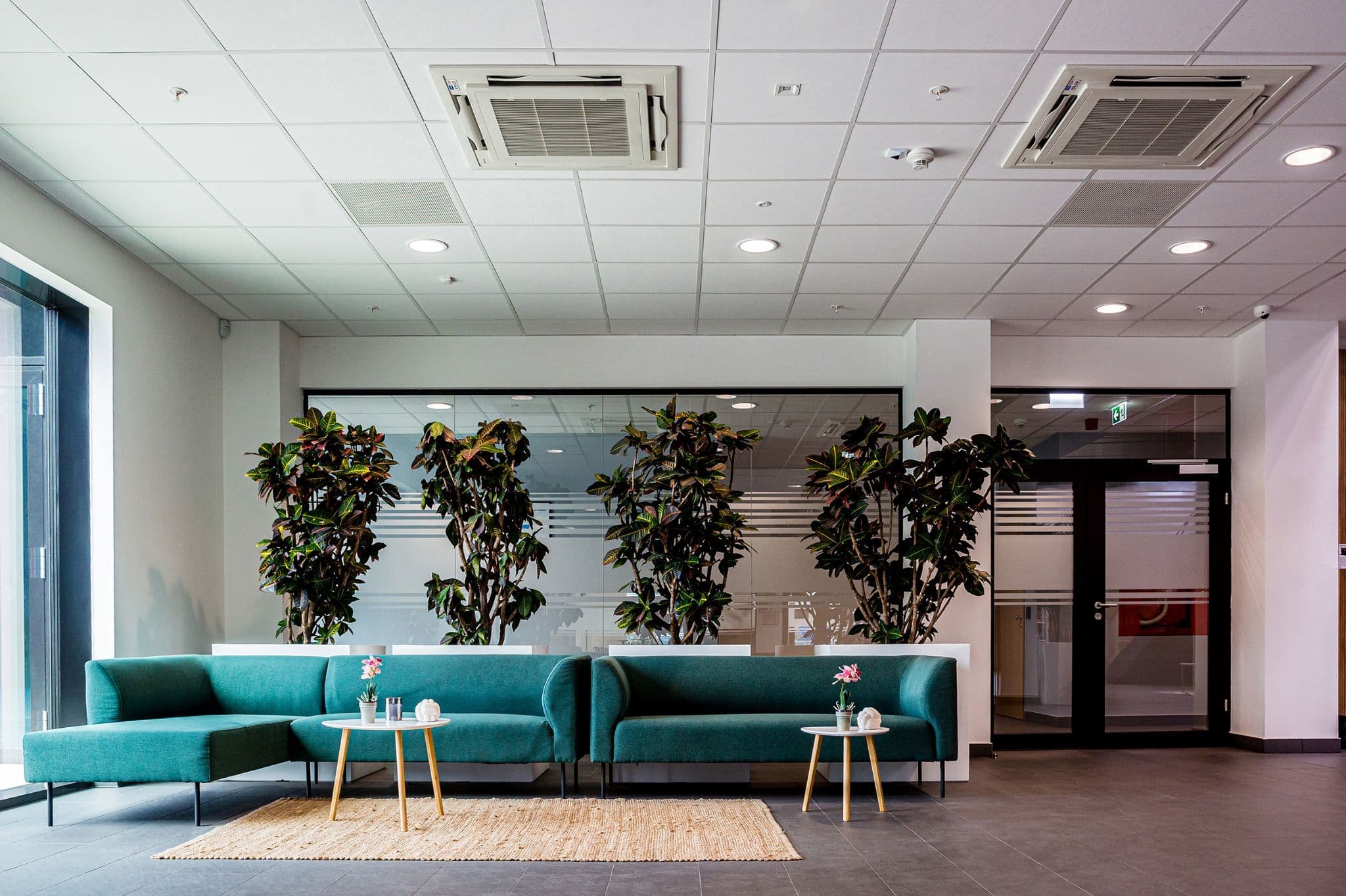

The 4-way cassette design ensures uniform airflow in all directions, delivering consistent comfort throughout the space. The cassette fits a standard ceiling grid, making it ideal for both new installations and refurbishment projects. Toshiba’s self-cleaning coil function and anti-mould drain components help maintain long-term hygiene and performance, while the integrated lift pump provides flexibility during installation.
The paired RAV-GV561ATP-E Digital Inverter outdoor unit uses an advanced DC twin-rotary inverter compressor to deliver dependable performance with reduced noise and excellent energy efficiency. The system also supports Toshiba’s replacement technology, allowing re-use of existing R410A, R22 or R407C pipework where suitable, reducing installation costs and downtime.
Together, these units form a reliable, quiet and energy-efficient solution suitable for a wide range of commercial HVAC applications.
Technical Specifications:
Cooling / Heating Capacity: 5.0 kW / 5.3 kW
Cooling Range (Min–Max): 1.5 – 6.3 kW
Heating Range (Min–Max): 1.5 – 6.3 kW
Power Input (Cooling / Heating): 1.60 kW / 1.79 kW
SEER / SCOP – Energy Label: 6.20 A+ / 4.20 A+
Indoor Sound Pressure (H–M–L): 47 – 44 – 40 dB(A)
Outdoor Sound Pressure: 46 – 48 dB(A)
Indoor Airflow (H–M–L): 1050 / 780 / 290 m³/h
Outdoor Airflow (High): 2350 m³/h
Indoor Dimensions (H × W × D): 305 × 840 × 840 mm
Panel Dimensions (H × W × D): 30 × 950 × 950 mm
Indoor Unit Weight: 22 kg
Panel Weight: 4.2 kg
Outdoor Dimensions (H × W × D): 550 × 780 × 290 mm
Outdoor Unit Weight: 36 kg
Interconnecting Cable: 3C+E
Pipe Connections (Liquid / Gas): 1/4″ – 1/2″
Min / Max Pipe Length: 5 m / 20 m
Chargeless Pipe Length: 20 m
Refrigerant Additional Charge: R32 / 0.9 kg / 20 g/m
Power Supply: 220–240V~50/60Hz
Options:
| Model |
Description |
Price |
| RBC-AX31U(W)-E |
Wireless Receiver Kit for 4-Way Cassette |
£191 |
| RBC-AX33UYP-E |
Wireless Receiver Kit for 1-Way Cassette |
£57 |
| RBC-AX31U-E |
Wireless Remote Controller Kit – Ceiling |
£211 |
| RBC-AX31UMP-E |
Wireless Remote Controller Kit – Others (Exclude High Static Ducted) |
£317 |
| RBC-AX31U1-E |
Wireless Receiver Kit for 4-Way Cassette |
£225 |
| RBC-AX31UME-E |
Wireless Receiver Kit for Compact Cassette |
£141 |
| RBC-AX31U4WE-E |
Wireless Remote Controller Kit for 2-Way Cassette |
£142 |
| RBC-AX31U3MP-E |
Wireless Remote Controller Kit for Compact 4-Way White |
£185 |
| RBC-AX31U3MPB-E |
Wireless Remote Controller Kit for Compact 4-Way Black |
£185 |
| RBC-AX33U4PE-E |
Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) |
£185 |
| RBC-AX41U-E |
Wireless Receiver Kit for 4-Way Cassette |
£225 |
| RBC-AXU33UPB-E |
Wireless Remote Controller Kit (IR receiver + handset), Black |
£173 |
| Model |
Description |
Price |
| RBC-AS41E |
Simplified Remote Controller |
£106 |
| RBC-ASCU11-E |
Compact Remote Controller |
£76 |
| RBC-ASCU32YP-E |
Compact Remote Controller |
£81 |
| RBC-AMT32E |
Standard Remote Controller |
£126 |
| RBC-AMT32E2 |
Standard Remote Controller |
£126 |
| RBC-AMT54E |
Standard Remote Controller C/W 24/7 Schedule Timer |
£173 |
| RBC-AMT52E |
Premium Remote Controller C/W 24/7 Schedule Timer |
£173 |
| RBC-AMT52U-E |
Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth |
£157 |
| RBC-MTSC1 |
Mini Touch Screen Controller |
£272 |
| RBC-MTSC2 |
Mini Touch Screen Controller C/W Schedule Timer |
£272 |
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
