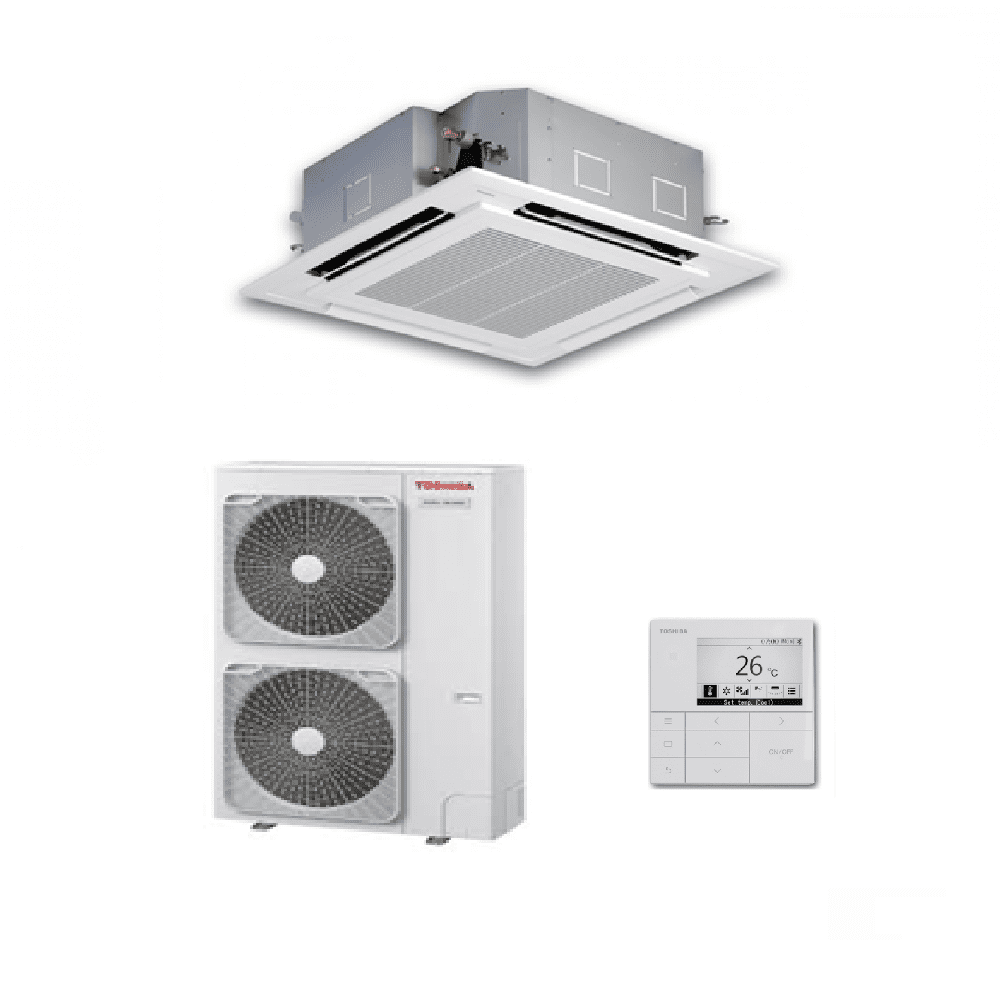

This Kit Includes:

1 x Toshiba RAV-HM1601UTP-E Digital Inverter 4-Way Cassette Indoor Unit
1 x Toshiba RAV-GV1601ATP-E Digital Inverter Outdoor Heat Pump Unit 220–240V~50Hz 1Ph
1 x Toshiba RBC-U33P-E Fascia Panel

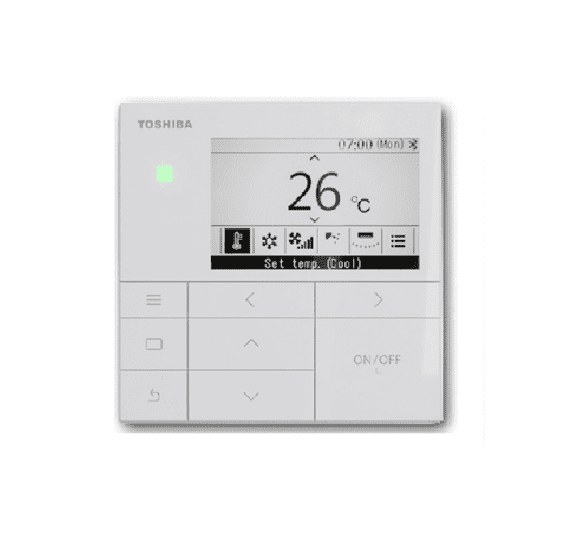

1 x Toshiba RBC-AMSU52-E Hard-Wired Controller

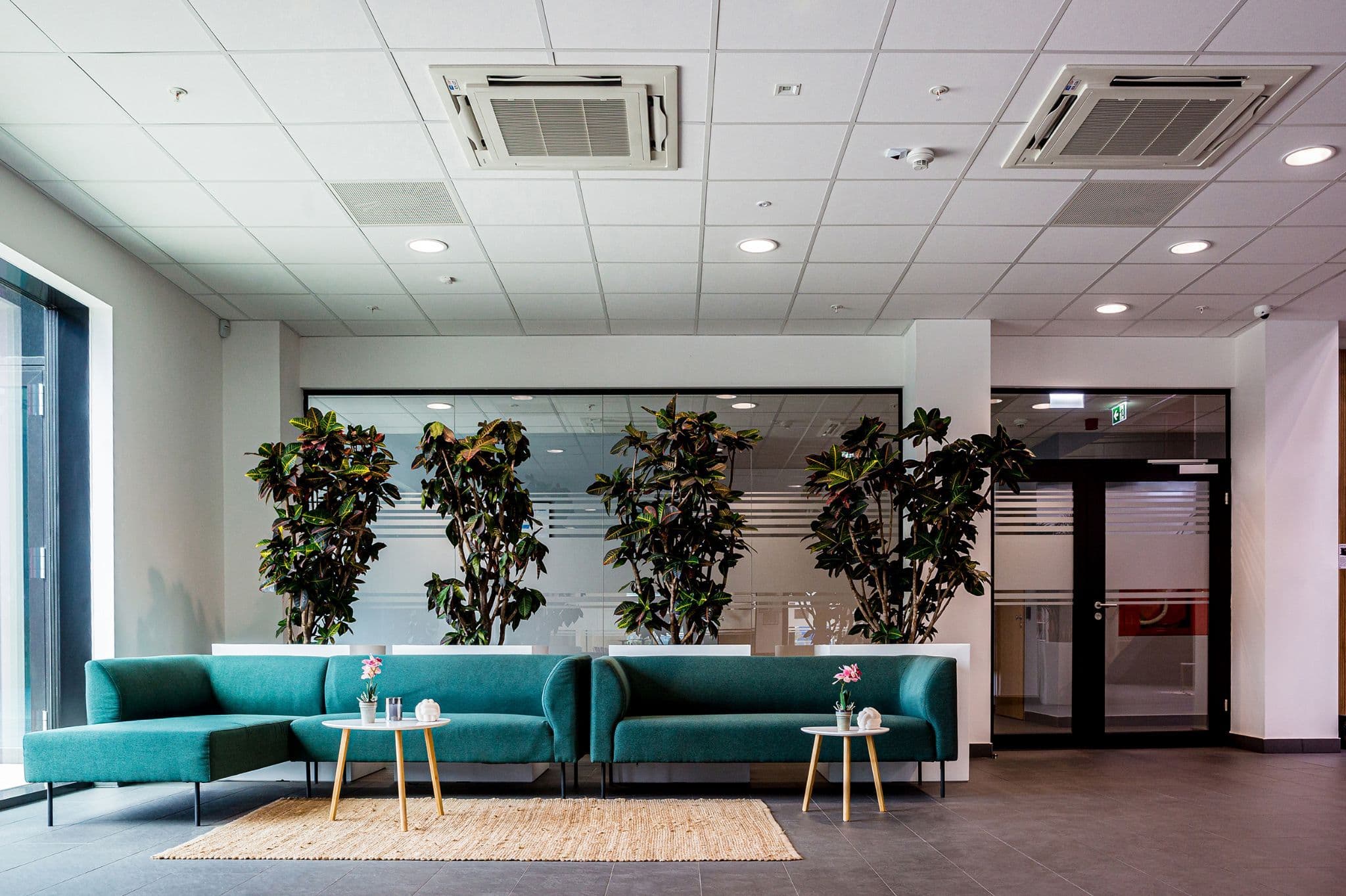

The Toshiba RAV-HM1601UTP-E Digital Inverter 4-Way Cassette is a high-capacity commercial climate control system engineered for large-area environments such as open-plan offices, retail stores, hospitality venues, meeting rooms, schools and public buildings. With a powerful 13.0 kW cooling and 13.5 kW heating output, this system is designed to maintain stable temperatures even under heavy load conditions.

This cassette model features a true 4-way discharge, ensuring perfectly balanced airflow in all directions for even temperature distribution across the conditioned space. Its compact chassis allows installation in standard ceiling grids, while the integrated high-lift drain pump simplifies condensate management. Toshiba’s Digital Inverter technology ensures fast temperature pull-down, low energy consumption and exceptional part-load efficiency—ideal for dynamically occupied commercial spaces.

The indoor unit delivers an impressive 592 l/s airflow on high fan speed, ensuring excellent coverage in large rooms. Sound levels remain controlled at 45–40–36 dB(A), providing quiet, unobtrusive comfort. The self-cleaning coil system and Ag-ion drain-cap protection minimise maintenance requirements while maintaining long-term hygiene and performance.

Paired with the outdoor RAV-GV1601ATP-E Digital Inverter Heat Pump Unit, the system benefits from stable, efficient and reliable operation. Rated at 13.0 kW cooling and 13.5 kW heating, the unit features wide operational envelopes, long pipe-run capabilities and Toshiba’s latest energy-efficient compressor design. Operating from a single-phase 220–240V~50Hz supply, the system is ideally suited to commercial premises requiring high-output cooling and heating without three-phase power.

With its flexible control options, modern design, robust performance and exceptional efficiency, the Toshiba RAV-HM1601UTP-E cassette system is an outstanding solution for demanding commercial HVAC applications.

Key Product Features:

• 13.0 kW cooling / 13.5 kW heating output

• High-efficiency Digital Inverter compressor technology

• 4-way cassette for even air distribution across large rooms

• Quiet indoor operation: 45 / 40 / 36 dB(A)

• High airflow delivery up to 592 l/s

• Self-cleaning coil and Ag-ion antimicrobial drain-cap

• Built-in high-lift drain pump

• Wired controller included (RBC-AMSU52-E)

• Slim, discrete design for suspended-ceiling installations

• Long pipe runs up to 30 metres

• Suitable for offices, retail, restaurants, hospitality and commercial premises

Technical Specifications:

Cooling / Heating: 13.0 kW / 13.5 kW
UK Total / Sensible Cooling: 12.40 / 10.50 kW
UK Heating: 7.43 kW
Energy Label: A++ Cooling / A Heating
Indoor Dimensions (H×W×D): 319 × 840 × 840 mm
Outdoor Dimensions (H×W×D): 890 × 900 × 320 mm
Indoor Airflow (H–M–L): 592 – 408 – 350 l/s
Outdoor Airflow (High): 6900 m³/h (≈1917 l/s)
Sound Pressure (ID): 45 – 40 – 36 dB(A)
Sound Pressure (OD): 57 / 59 dB(A)
Power Supply: 220–240V / 1Ph / 50Hz
Interconnecting Cable: (3C+E)
Pipe Connections (liquid/gas): 5/8″ – 3/8″
Max Pipe Length: 30 m
Max Height Difference: 30 m
Charge-Free Length: 20 m
Refrigerant Additional Charge: R32 / 2.2 kg

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
