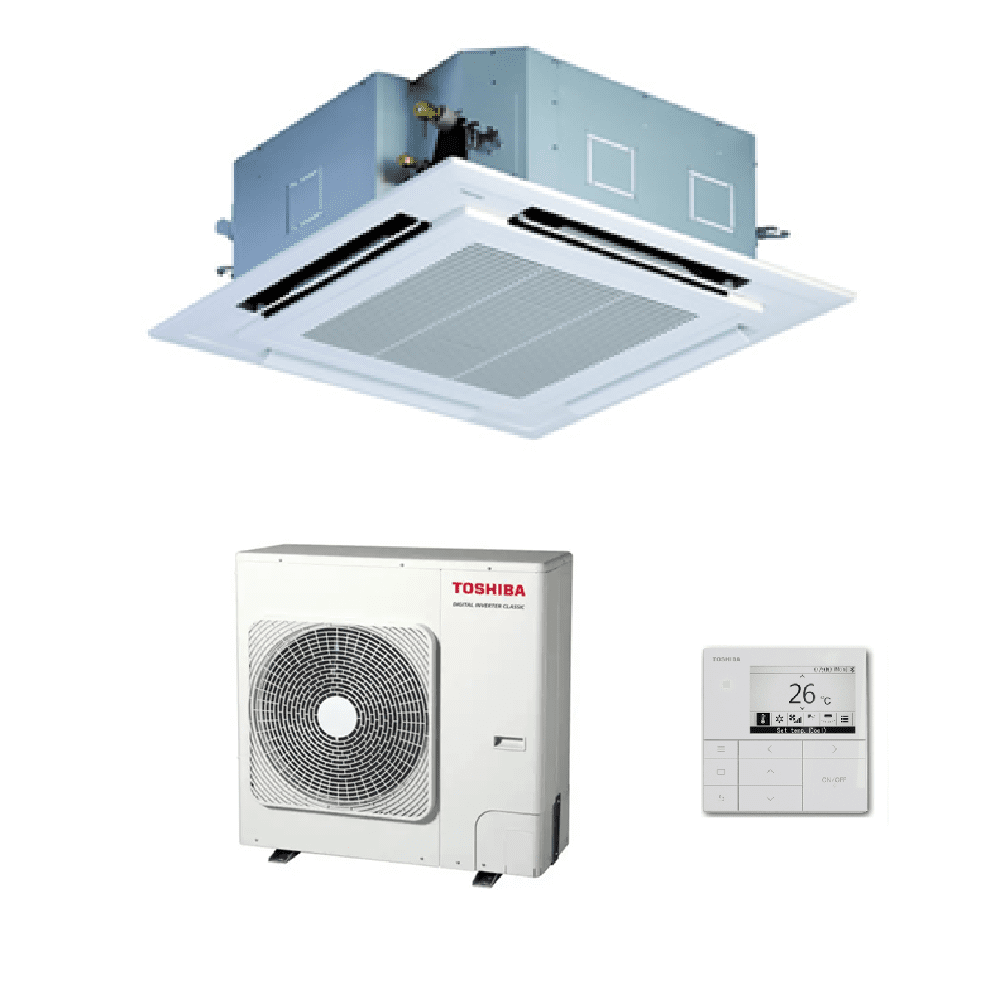

This Kit Includes:

• Toshiba RAV-HM1101UTP-E Digital Inverter 4-Way Cassette Indoor Unit 220-240~50Hz

• Toshiba RAV-GV1101ATP-E Digital Inverter Outdoor Unit 9.5kW/34000Btu 220-240V~50Hz

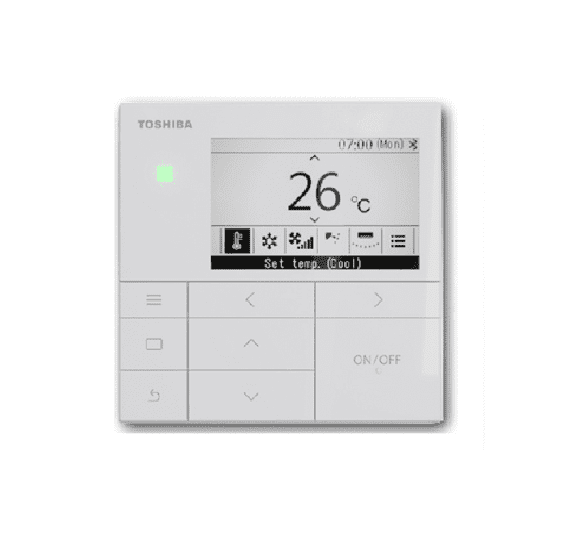

• Toshiba RBC-AMSU52-E Hard-Wired Controller

• 1 x Toshiba Facia Panel RBC- U33P-E

• Installation and user documentation

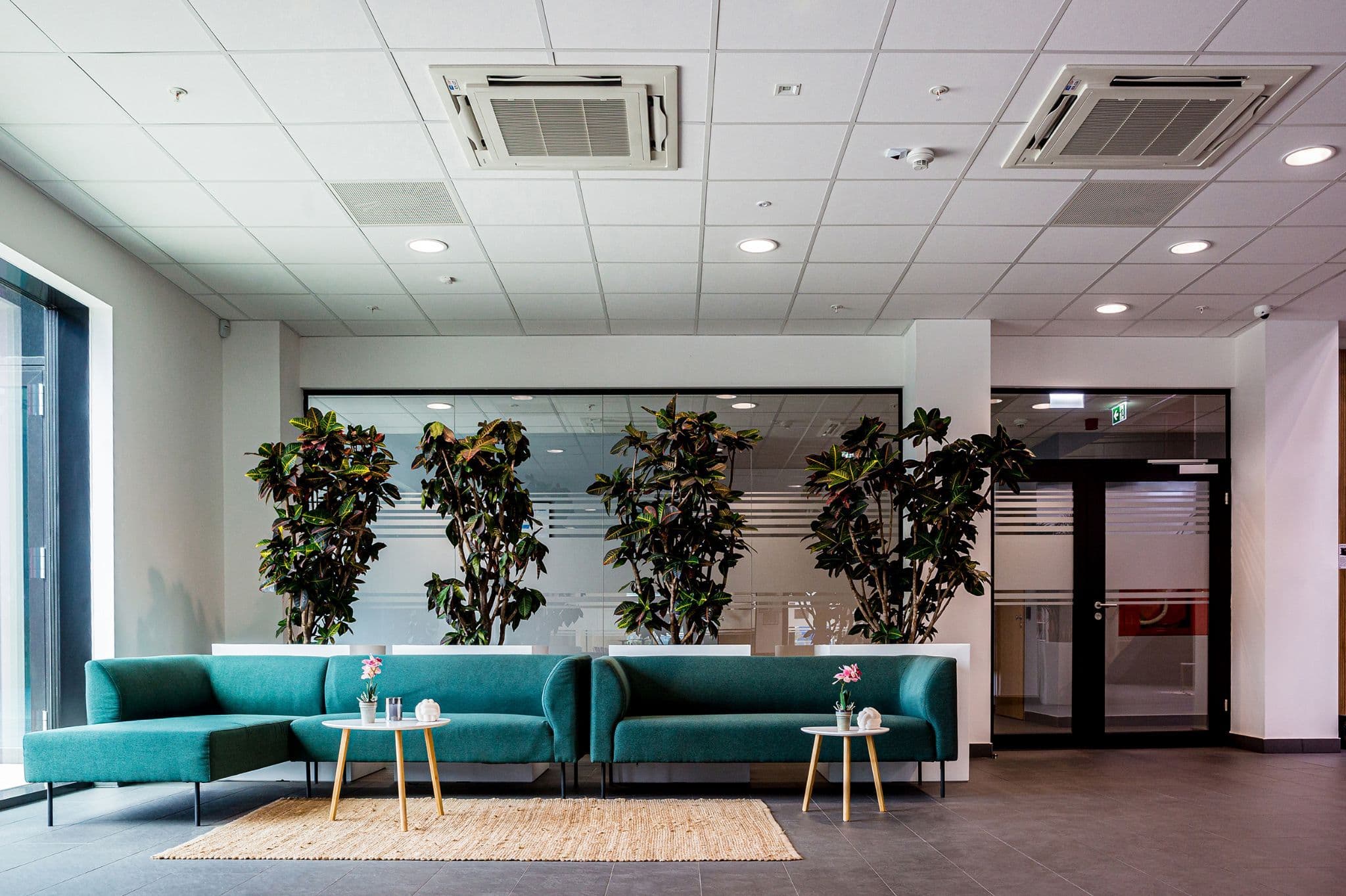

The Toshiba RAV-HM1101UTP-E 4-Way Cassette System is a high-capacity commercial air conditioning solution designed for demanding environments that require strong, reliable airflow and consistent temperature control. Suitable for large offices, open-plan commercial spaces, restaurants, retail environments, schools and public buildings, this system delivers up to 9.5kW of cooling and 10.0kW of heating with exceptional efficiency.

The larger-format cassette unit features a 1200 mm-wide chassis engineered for superior air distribution across wider rooms. Multi-directional louvres provide full 360° airflow coverage, ensuring even temperature balance with no hot or cold zones. The system maintains a quiet acoustic profile, starting from 41 dB(A), making it suitable for customer-facing environments and extended operating hours.

Toshiba’s self-cleaning heat exchanger technology and anti-mould drainage components help maintain long-term hygiene and airflow performance. The integrated lift pump allows flexible condensate routing, simplifying installation across complex ceiling designs. The included RBC-AMSU52-E wall controller provides precise, reliable temperature management with scheduling, fan control and energy-saving modes.

Paired with the 1-phase RAV-GV1101ATP-E Digital Inverter outdoor unit, this system benefits from a high-efficiency DC twin-rotary compressor, providing stable operation, reduced vibration and lower running costs. Built for commercial dependability, the outdoor unit ensures strong performance even in high-load environments and supports Toshiba’s replacement technology, allowing suitable existing R410A/R22/R407C pipework to be reused in refurbishment projects.

This large-capacity cassette system offers a powerful, efficient and highly reliable HVAC solution for commercial buildings requiring year-round climate control.

Technical Specifications:

Indoor Unit: RAV-HM1101UTP-E

Rated Cooling Capacity: 9.5 kW
Rated Heating Capacity: 10.0 kW
UK Cooling Total / Sensible: 9.00 / 7.80 kW
UK Heating: 5.5 kW
SEER / SCOP – Energy Label: 6.00–4.00 (A+ / A+)
Indoor Weight: 24 kg
Indoor Dimensions (H × W × D): 319 × 840 × 840 mm
Indoor Airflow (H–M–L): 558 – 400 – 325 l/s
Sound Pressure (H–M–L): 43 – 38 – 33 dB(A)
Interconnecting Cable: (3C+E)
Flare Connections (Liquid / Gas): 5/8″ – 3/8″
Min / Max Pipe Length: 5–30 m
Chargeless Pipe Length: 20 m
Refrigerant Additional Charge: R32 / 1.7 kg

Outdoor Unit: RAV-GV1101ATP-E

Outdoor Weight: 45 kg
Outdoor Dimensions (H × W × D): 630 × 800 × 320 mm
Outdoor Airflow (High): 3500 m³/h – 972 l/s
Outdoor Sound Pressure: 51 / 53 dB(A)
Suggested Power & Fuse Rating: 220–240V~50Hz — 25A
Refrigerant Type: R32

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
