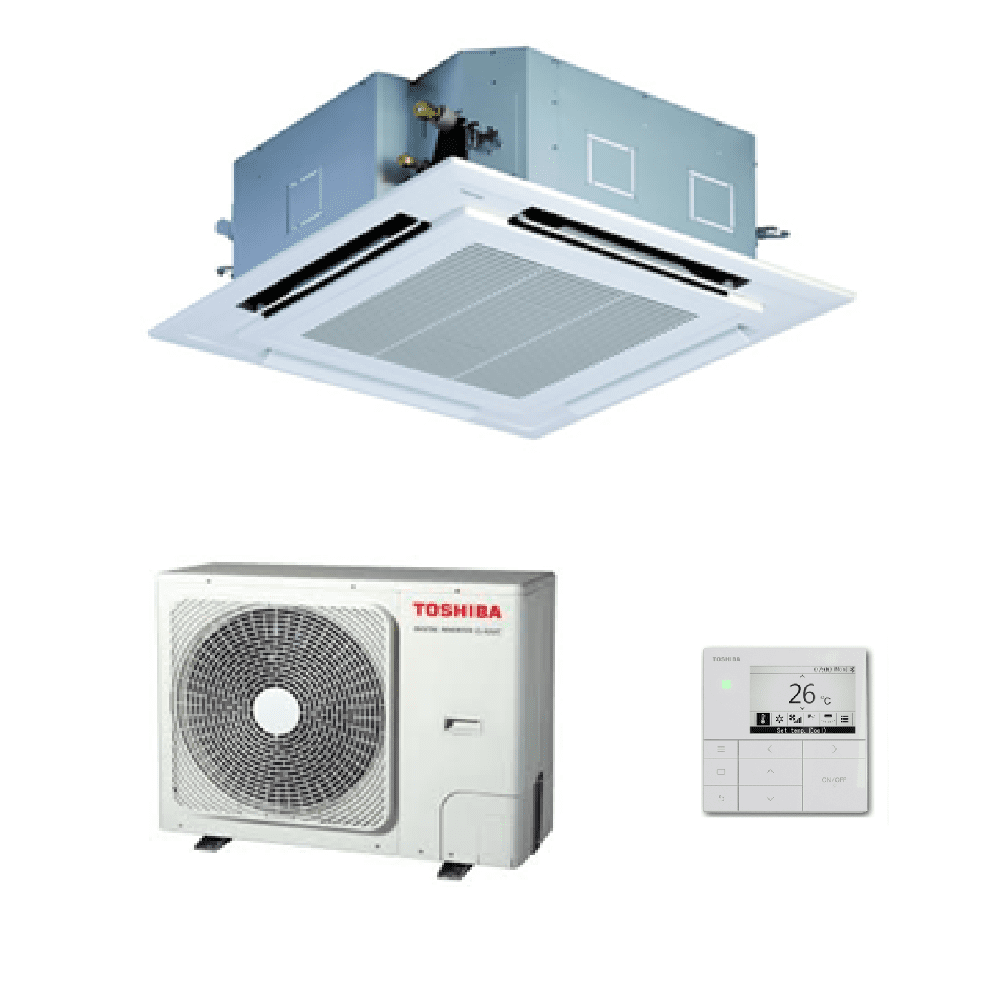

This Kit Includes:

1 x Toshiba RAV-HM1101UTP-E Digital Inverter 4-Way Cassette Indoor Unit

1 x Toshiba RAV-GV1101ATP-E Digital Inverter Outdoor Heat Pump Unit 380–415V~50Hz 3Ph

1 x Toshiba RBC-U33P-E Fascia Panel

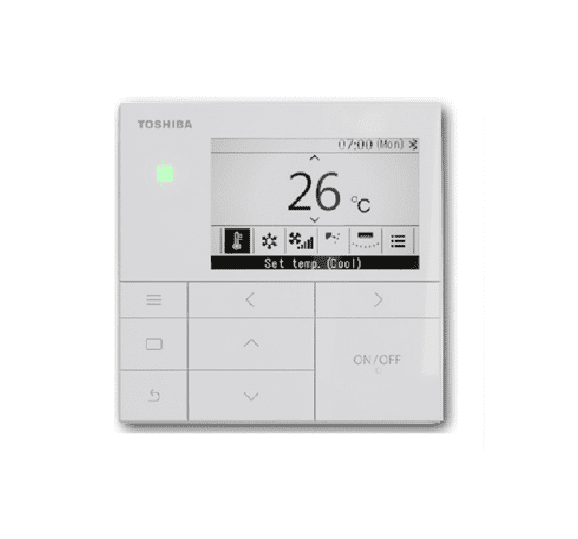

1 x Toshiba RBC-AMSU52-E Hard-Wired Controller

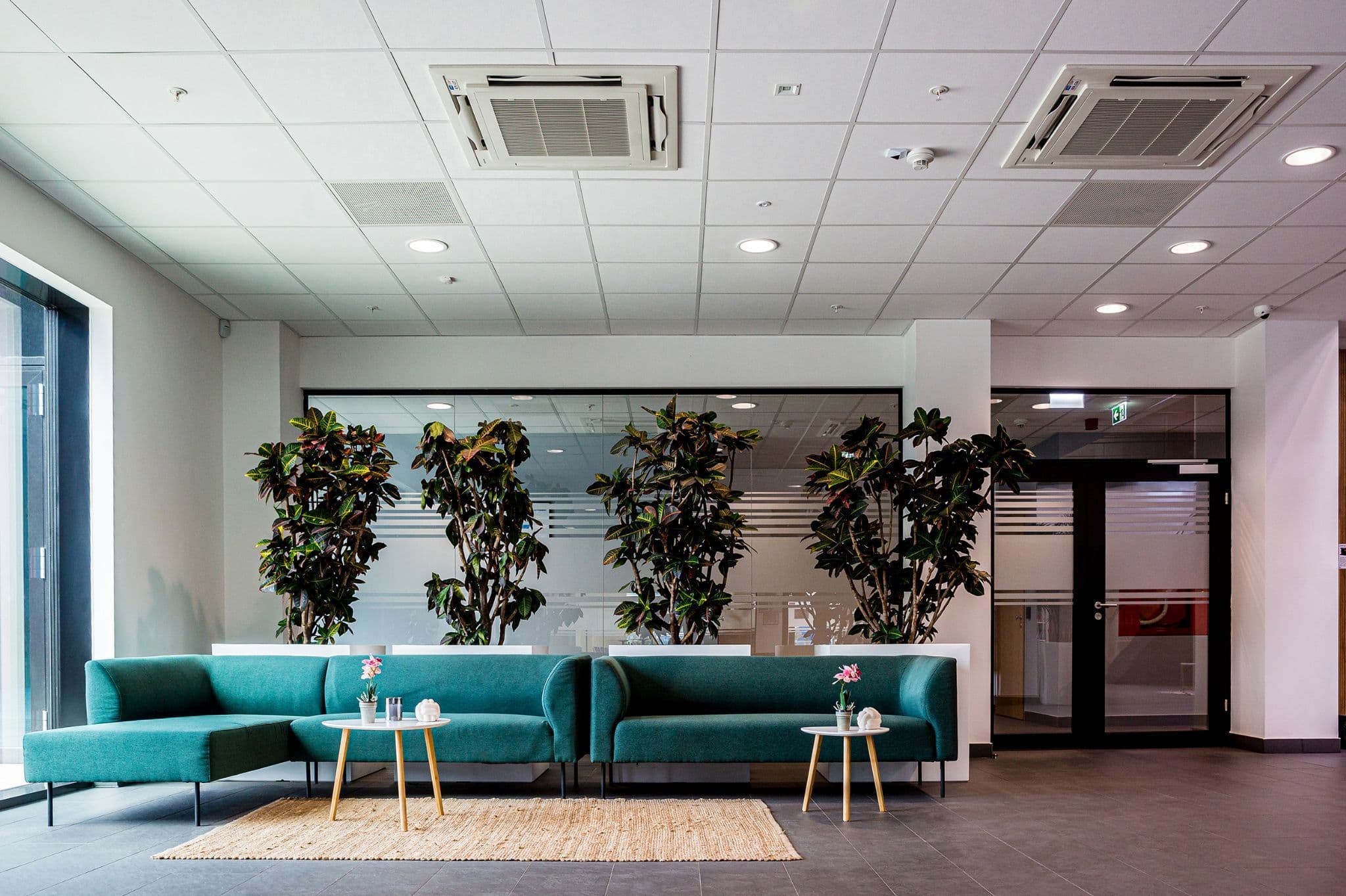

The Toshiba RAV-HM1101UTP-E Digital Inverter 4-Way Cassette is a high-capacity commercial air conditioning solution engineered for demanding environments such as shops, offices, hospitality, meeting rooms and light industrial spaces. Designed to distribute conditioned air evenly across all four directions, it delivers stable temperatures, quiet performance and excellent energy efficiency even in larger or high-load areas.

Built around Toshiba’s Digital Inverter compressor technology, the system provides fast temperature pull-down, high seasonal efficiency and reliable long-term operation. The RAV-HM1101UTP-E cassette incorporates aerodynamic louvres, uniform discharge, enhanced filtration, a self-cleaning coil design and a compact chassis for easier installation in both new-build and refurbishment projects.

Indoor airflow reaches 558 l/s at high fan speed, making it suitable for larger rooms requiring consistent and balanced cooling or heating. Sound levels remain controlled at 49 dB(A) on high mode and as low as 41 dB(A) on low. The paired outdoor heat pump unit, the RAV-GV1101ATP-E, is a heavy-duty inverter system delivering up to 9.5 kW of cooling and 10.0 kW of heating, with an A++ / A+ seasonal efficiency rating. Its 3-phase power supply ensures stable performance for commercial installations with higher electrical loads.

With a wide operational envelope, long pipe-run capability up to 30 metres, 4-way discharge pattern and a full range of wired controls, this cassette system is an ideal choice for commercial premises requiring a robust, quiet and energy-efficient climate control solution.

Key Product Features:

9.5 kW cooling / 10.0 kW heating
High seasonal performance: A++ cooling / A+ heating
4-way uniform air distribution for superior coverage
Quiet indoor operation: 49 / 45 / 41 dB(A)
Ceiling-suspended compact cassette for commercial spaces
High airflow up to 558 l/s
Self-cleaning coil function reduces maintenance needs
Compatible with wired and building control integrations
Digital Inverter outdoor compressor for stable, efficient performance
Long maximum pipe length of 30m
Hard-wired Toshiba controller included
Ideal for offices, restaurants, retail units and commercial space conditioning

Technical Specifications:

Cooling / Heating: 9.5 kW / 10.0 kW
UK Total/Sensible Cooling: 9.00 / 7.80 kW
UK Heating: 5.5 kW
Energy Label: A++ Cooling / A+ Heating
Indoor Dimensions (H×W×D): 319 × 840 × 840 mm
Outdoor Dimensions (H×W×D): 710 × 900 × 320 mm
Indoor Airflow (H–M–L): 558 – 400 – 325 l/s
Outdoor Airflow (High): 4080 m³/h (≈1133 l/s)
Sound Pressure (ID): 49 – 45 – 41 dB(A)
Sound Pressure (OD): 53 / 60 dB(A)
Power Supply: 380–415V / 3Ph / 50Hz
Interconnecting Cable: (3C+E)
Pipe Connections (liquid/gas): 5/8″ – 3/8″
Max Pipe Length: 30 m
Max Height Difference: 30 m
Charge-Free Length: 20 m
Refrigerant Additional Charge: R32 / 1.7 kg total

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
