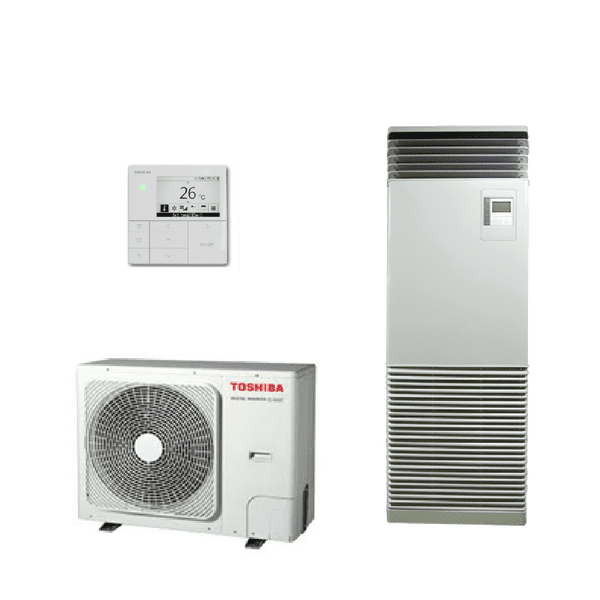

This Kit Includes:

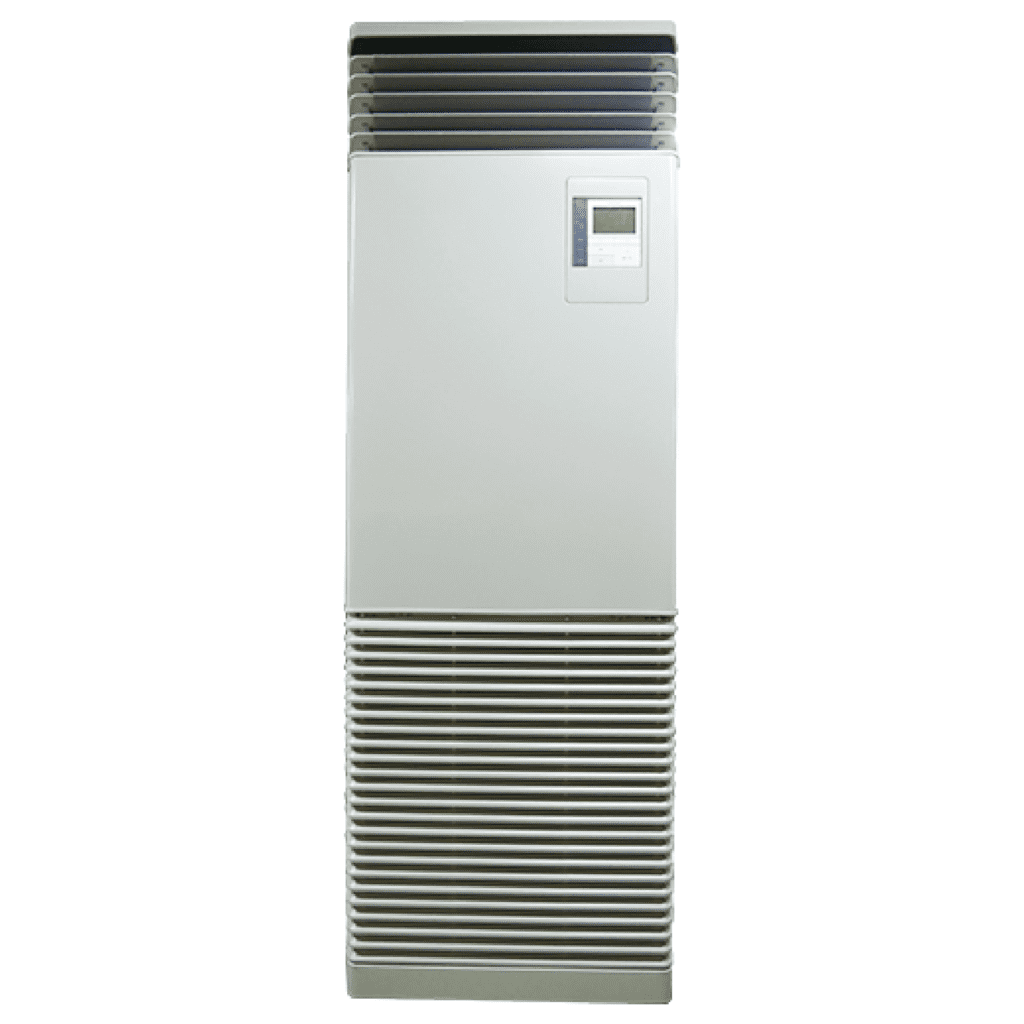

1 × Toshiba RAV-HM561FT-E Floor Standing Indoor Unit – 5.0kW Cooling / 5.3kW Heating | A/A+ Efficiency | High Airflow Cabinet Design | 220-240V~50Hz
1 × Toshiba RAV-GM561ATP-E1 Digital Inverter Outdoor Unit – 5.0kW Cooling / 5.3kW Heating | Robust Operation | 220-240V~50Hz

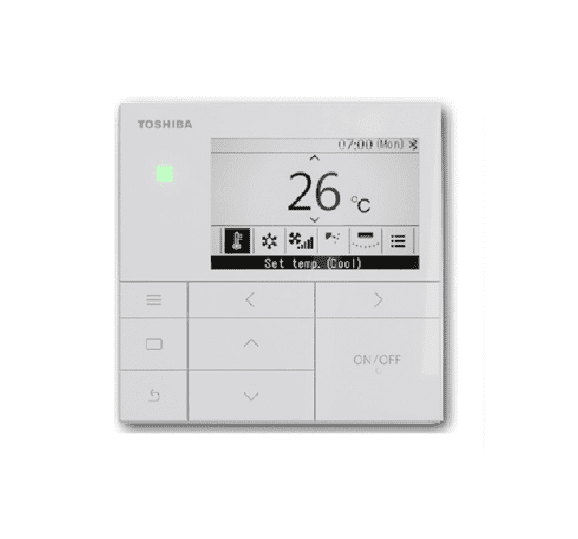

1 × Toshiba RBC-AMSU52-E Wired Controller

Compact High-Airflow Floor Standing Cabinet for Large Spaces

The Toshiba RAV-HM561FT-E is a powerful floor-standing cabinet system designed for larger rooms with low ceilings where strong airflow, long throw, and quick temperature delivery are essential. Ideal for commercial and public environments such as receptions, shops, schools, halls and refurbishment projects, this stylish metal cabinet delivers robust performance with excellent A/A+ seasonal efficiency.

With a rated 5.0kW cooling and 5.3kW heating capacity, the system uses Toshiba’s reliable Digital Inverter technology for precise modulation, reduced energy consumption, and quiet indoor operation. The HM561FT-E includes automatic louvre control, 5 fan-speed settings and an inbuilt R32 leak-detection system for enhanced safety. The outdoor GM561ATP-E1 unit provides stable year-round performance with long pipe-run capability and a durable chassis suited to light-commercial duty.

The cabinet design makes this system ideal for refurbishment, replacing older R410A/R22 equipment using existing pipework under Toshiba’s Replacement Technology.

Key Product Features:

• Floor-standing metal cabinet for high-airflow room conditioning
• 5.0kW cooling / 5.3kW heating capacity
• Automatic louvre control for all-season comfort
• 5 selectable fan speeds with strong air throw
• Suitable for large rooms with low ceilings
• Very quiet indoor operation
• Built-in controller (RBC-AMS55-ES) and wired controller included (RBC-AMSU52-E)
• Embedded R32 leak detection with internal stirring fan
• Digital Inverter Outdoor Unit for stable, efficient performance
• Uses Toshiba Replacement Technology for legacy pipework (R410A/R22/R407C)
• Can be configured single / twin / triple / quad with matching outdoor units
• Ideal for retail, offices, receptions, schools, halls and public buildings

Technical Specifications:

Indoor Unit – RAV-HM561FT-E
Cooling Capacity: 5.0 kW
Heating Capacity: 5.3 kW
UK Cooling (Total/Sensible): 4.80 / 3.40 kW
UK Heating: 3.79 kW
SEER / SCOP / Energy Label: 5.25 – 4.00 / A – A+
Weight: 44 – 38 kg
Dimensions (H × W × D): 1750 × 600 × 210 mm
Airflow (High–Medium–Low): 228 – 194 – 167 l/s
Sound Pressure (H–M–L): 46 – 42 – 38 dB(A)
Pipe Connections (Gas–Liquid): 1/2″ – 1/4″
Min–Max Pipe Length / Height: 5 – 30 m / 30 m
Charge-Free Length: 20 m
Refrigerant / Additional Charge: R32 / 1.1 kg / 20 g/m

Outdoor Unit – RAV-GM561ATP-E1
Cooling Capacity: 5.0 kW
Heating Capacity: 5.3 kW
Outdoor Dimensions (H × W × D): 550 × 780 × 290 mm
Outdoor Weight: 23 – 38 kg
Outdoor Airflow (High): 2400 – 667 m³/h
Sound Pressure (Outdoor): 46 / 48 dB(A)
Suggested Power & Fuse: 220-240V / 1Ph / 50Hz & 16A
Interconnecting Cable: 3C+E
Refrigerant: R32

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
