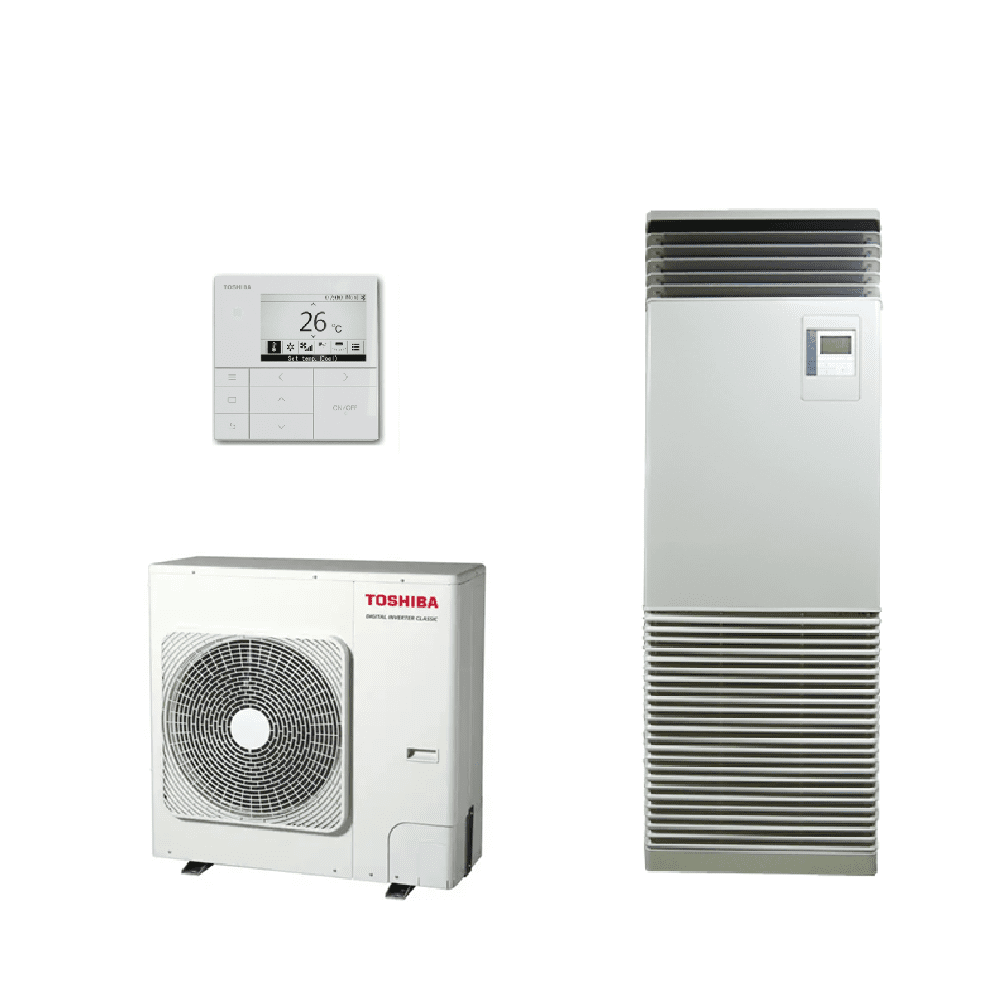

This Kit Includes:

• 1 × Toshiba RAV-HM1401FT-E Floor Standing Indoor Unit
– 12.1kW Cooling / 13.0kW Heating
– High-flow, long-throw commercial cabinet design
– A/A+ energy performance
– 220-240V~50Hz

• 1 × Toshiba RAV-GM1401ATP-E1 Digital Inverter Outdoor Unit
– 12.1kW Cooling / 13.0kW Heating Output
– SEER/SCOP: 4.86 / 3.90 (A / A)
– Robust chassis for demanding commercial duty
– Single-Phase 220-240V~50Hz

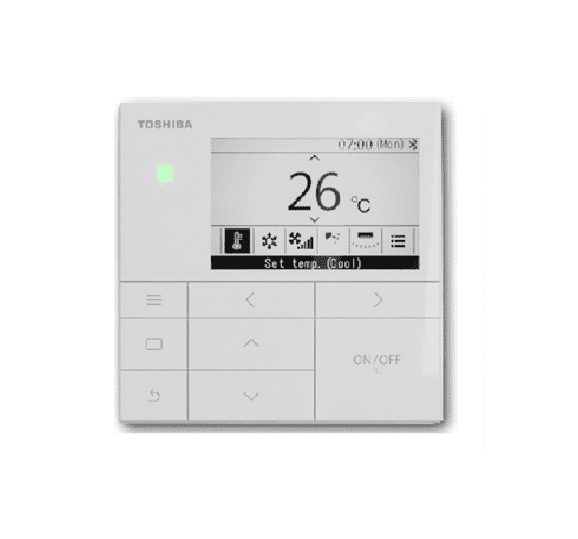

• 1 × Toshiba RBC-AMSU52-E Wired Controller

Powerful Large-Space Climate Control for Commercial Floors, Retail Areas & High-Capacity Venues

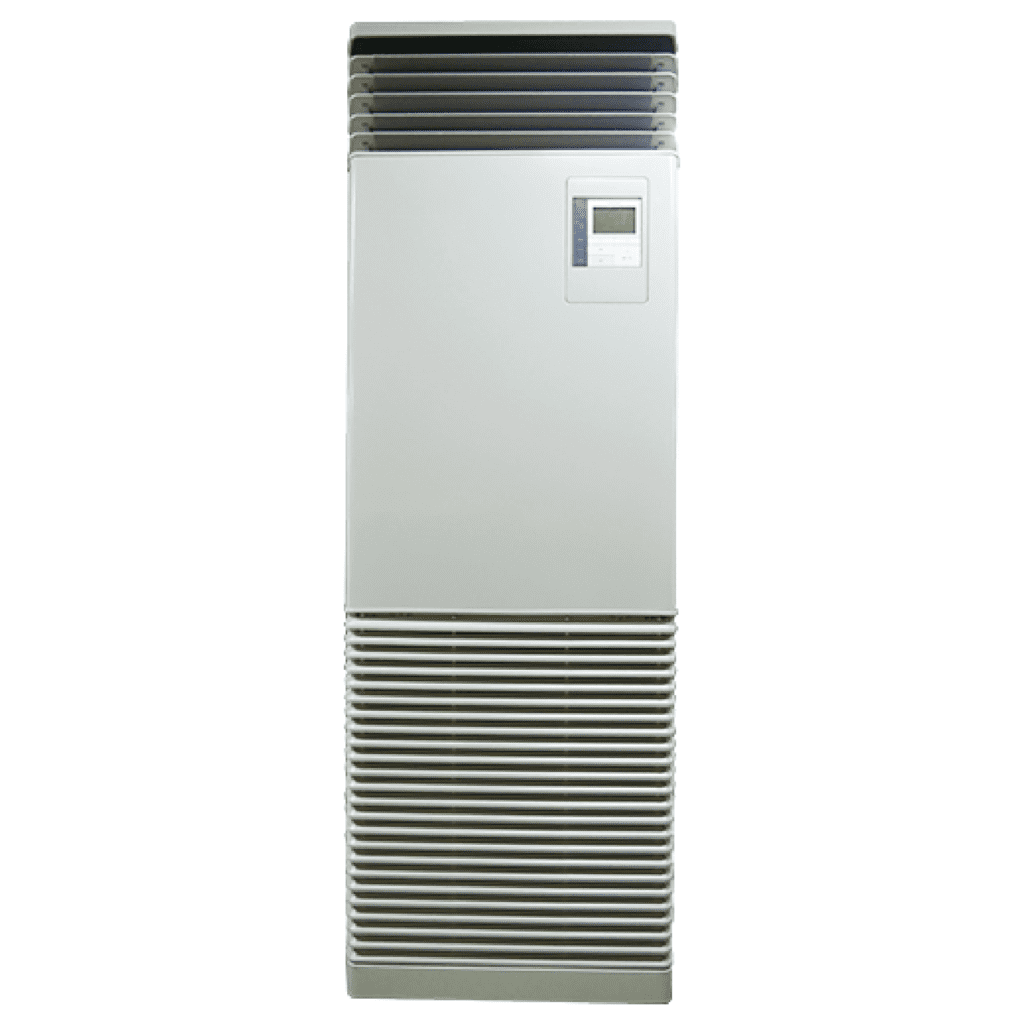

The Toshiba RAV-HM1401FT-E is a premium floor-standing cabinet engineered for large open spaces that require strong airflow, long air throw and rapid temperature delivery. With 12.1kW cooling and 13.0kW heating, this model is ideal for restaurants, gyms, showrooms, reception halls, retail floors, classrooms and high-traffic public environments.

Its tall, slim cabinet design provides excellent service access, five fan-speed modes, automatic louvre control and quiet operation for its output class. The system includes Toshiba’s latest Digital Inverter technology for reliable, efficient performance throughout the year.

Coupled with the RAV-GM1401ATP-E1 outdoor inverter, this pairing delivers excellent seasonal performance, clean operation with R32 refrigerant, flexible installation options and compatibility with twin, triple or quad indoor configurations for large or zoned applications.

Key Product Features:

• Large-capacity system: 12.1kW cooling / 13.0kW heating
• Long-throw airflow ideal for large, open commercial spaces
• Digital Inverter compressor for efficient, responsive output
• Seasonal energy performance: A / A+
• Five fan-speed settings
• Automatic louvre management for stable room conditions
• Durable, commercial-grade outdoor unit
• Quiet indoor operation despite high airflow
• Slim cabinet design with easy access for servicing
• R32 refrigerant with reduced environmental impact
• Compatible with single, twin, triple and quad combinations
• Replacement-technology ready (existing R410A/R22 pipework usable)
• Wired controller included (RBC-AMSU52-E)

Technical Specifications:

Indoor Unit – RAV-HM1401FT-E

• Cooling Capacity: 12.1 kW
• Heating Capacity: 13.0 kW
• UK Cooling (Total/Sensible): 11.50 / 8.20 kW
• UK Heating: 9.30 kW
• SEER / SCOP / Energy Class: 4.86 / 3.90 – 191.4 / 153.0 – A / A+
• Sound Pressure (H-M-L): 53 / 48 / 45 dB(A)
• Dimensions (H × W × D): 1750 × 600 × 390 mm
• Weight: 59 – 68 kg
• Indoor Airflow (H-M-L): 489 / 411 / 375 l/s
• Pipe Connections (Gas-Liquid): 5/8″ – 3/8″
• Refrigerant Charge (Indoor): R32 / 2.1 kg
• Additional Charge: 35 g/m

Outdoor Unit – RAV-GM1401ATP-E1

• Cooling Capacity: 12.1 kW
• Heating Capacity: 13.0 kW
• Sound Pressure (Outdoor): 55 / 57 dB(A)
• Dimensions (H × W × D): 890 × 900 × 320 mm
• Weight: 59 – 68 kg
• Outdoor Airflow (High): 4200 – 1167 m³/h
• Suggested Power / Fuse Rating: 220/240-1-50 & 32A
• Interconnecting Cable: 3C+E
• Min/Max Pipe Length: 5 – 30 m
• Max Height Difference: 30 m
• Charge-Free Length: 30 m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
