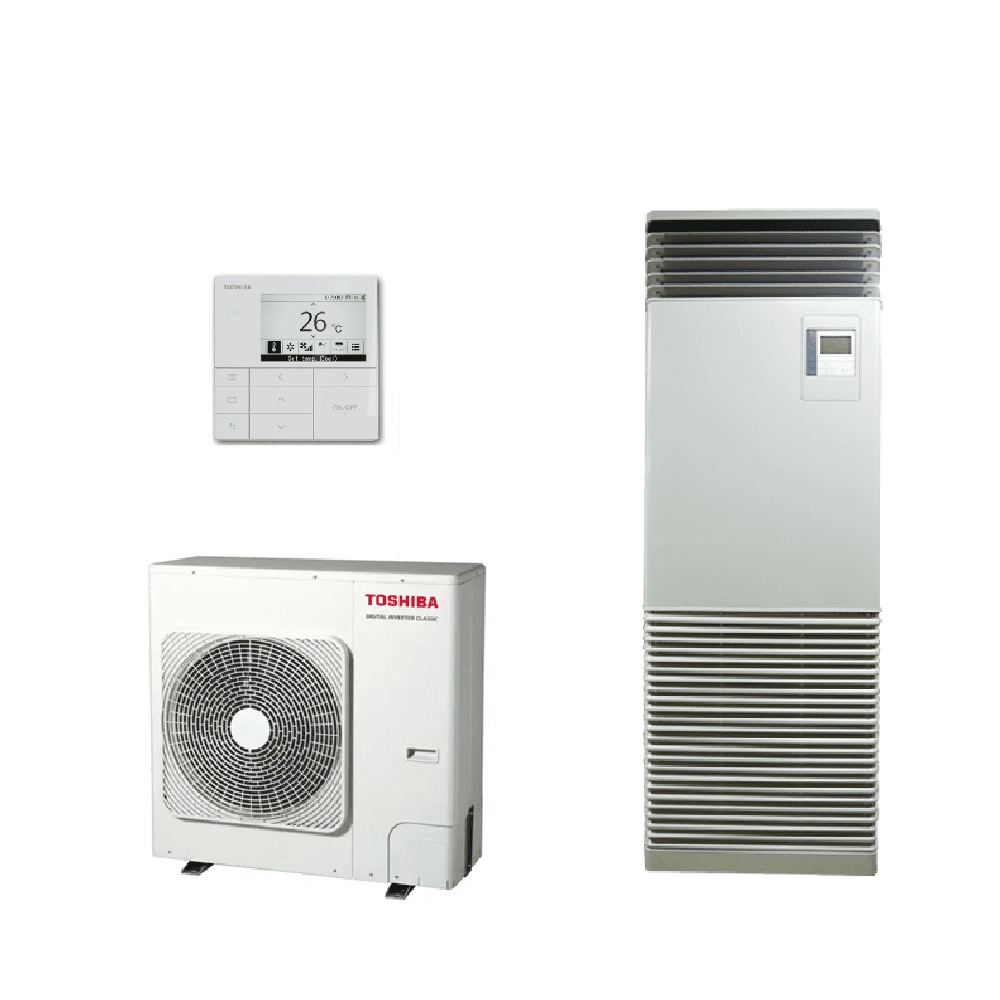

This Kit Includes:

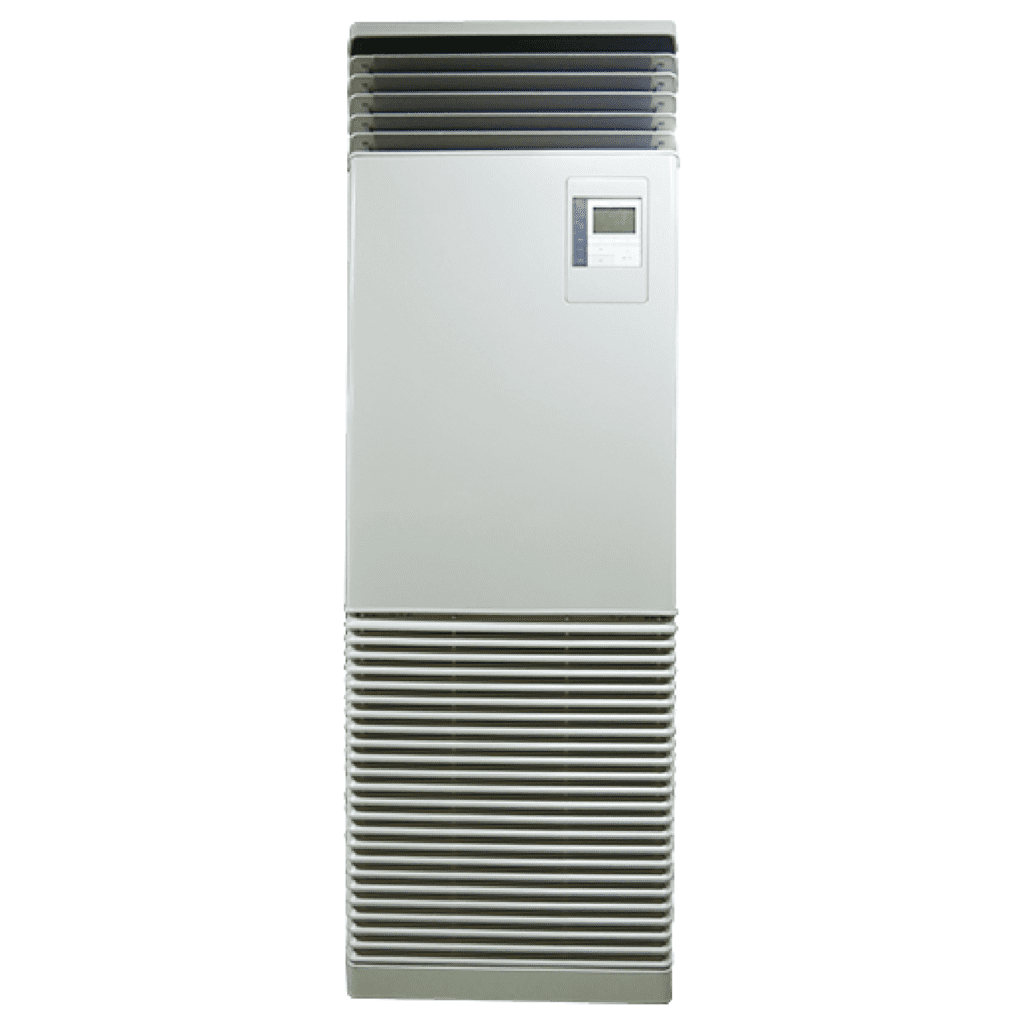

• 1 × Toshiba RAV-HM1401FT-E Floor Standing Indoor Unit
– 12.1kW Cooling / 13.0kW Heating
– High-airflow commercial cabinet for large open spaces
– A / A+ seasonal energy efficiency
– 220-240V~50Hz Indoor Supply

• 1 × Toshiba RAV-GM1401AT8P-E1 Digital Inverter Outdoor Unit (3-Phase)
– 12.1kW Cooling / 13.0kW Heating Output
– SEER/SCOP: 4.86 / 3.90 – 191.4 / 153.0
– Heavy-duty 380-415V~50Hz/60Hz 3-phase operation
– Ideal for demanding commercial and industrial installations

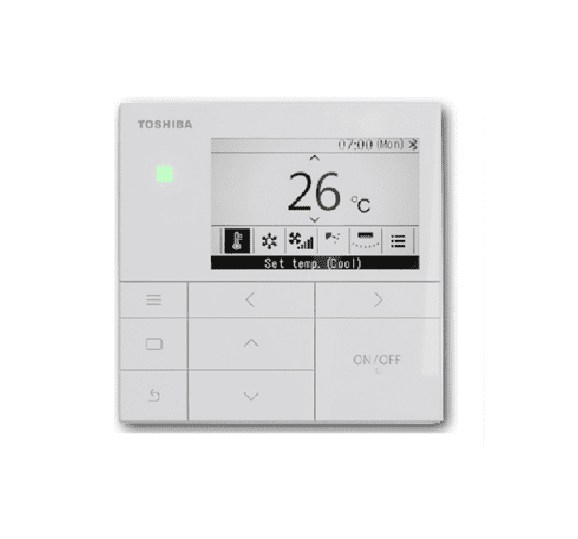

• 1 × Toshiba RBC-AMSU52-E Wired Controller

High-Capacity Commercial Heating & Cooling for Large Floors, Retail Areas & Public Spaces

The Toshiba RAV-HM1401FT-E Floor Standing Cabinet is designed for large commercial spaces where high airflow, strong directional throw and rapid temperature stabilisation are required. With 12.1kW of cooling and 13.0kW of heating, it is ideal for retail environments, restaurants, waiting areas, gyms, classrooms, reception halls and open-plan public buildings.

Paired with the 3-phase RAV-GM1401AT8P-E1 outdoor unit, this system offers exceptional reliability, smoother electrical loading and robust performance suitable for heavy-duty commercial operation.

This combination delivers high seasonal efficiency, long pipe-run capability, quiet operation for its class and compatibility with Toshiba’s multi-indoor setups (single, twin, triple or quad). R32 refrigerant ensures cleaner environmental performance while maintaining high capacity.

Key Product Features:

• Large-capacity system: 12.1kW cooling / 13.0kW heating
• Three-phase outdoor unit for stable, commercial-grade performance
• Long-throw airflow for wide, open spaces
• Seasonal efficiency up to A / A+
• 5-speed fan operation
• Automatic louvre control for stable temperature distribution
• High-flow cabinet design with strong forward air throw
• Quiet for its size: 53–48–45 dB(A) indoor
• Heavy-duty outdoor chassis engineered for reliability
• R32 refrigerant with reduced environmental impact
• Suitable for single / twin / triple / quad indoor combinations
• Replacement-technology compatible (reuse of existing R410A/R22 pipework)
• Wired controller included (RBC-AMSU52-E)

Technical Specifications:

Indoor Unit — RAV-HM1401FT-E

• Cooling Capacity: 12.1 kW
• Heating Capacity: 13.0 kW
• UK Cooling (Total/Sensible): 11.50 / 8.20 kW
• UK Heating: 9.30 kW
• SEER / SCOP: 4.86 / 3.90
• Energy Class: A / A+
• Sound Pressure (H-M-L): 53 / 48 / 45 dB(A)
• Indoor Airflow (H-M-L): 489 / 411 / 375 l/s
• Dimensions (H × W × D): 1750 × 600 × 390 mm
• Weight: 59 – 68 kg
• Pipe Connections (Gas–Liquid): 5/8″ – 3/8″
• Interconnecting Cable: 3C+E
• Min/Max Pipe Length: 5 – 30 m
• Max Height Difference: 30 m
• Refrigerant Charge (Indoor): R32 / 2.1 kg
• Additional Charge: 35 g/m
• Charge-Free Length: 30 m

Outdoor Unit — RAV-GM1401AT8P-E1 (3-Phase)

• Cooling Capacity: 12.1 kW
• Heating Capacity: 13.0 kW
• Dimensions (H × W × D): 890 × 900 × 320 mm
• Outdoor Airflow (High): 4200 – 1167 m³/h
• Sound Pressure: 55 / 57 dB(A)
• Suggested Power / Fuse: 380-415V~50Hz/60Hz & 16A
• Refrigerant Type: R32
• Operating Range: Heavy-duty commercial specification

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
