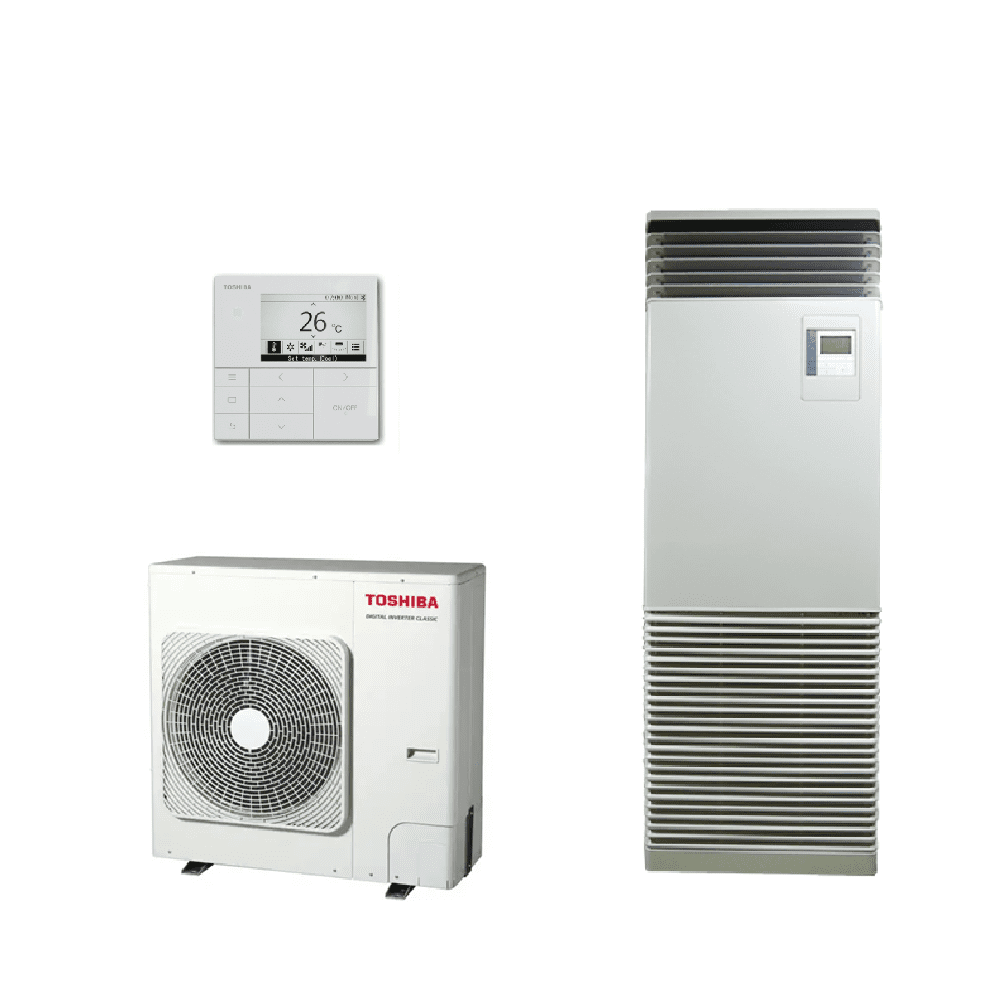

This Kit Includes:
1 × Toshiba RAV-HM1101FT-E Floor Standing Indoor Unit – 9.5kW Cooling / 11.2kW Heating | A/A Seasonal Efficiency | High-Airflow Cabinet | 220-240V~50Hz
1 × Toshiba RAV-GM101ATP-E Digital Inverter Outdoor Unit – 9.5kW Cooling / 11.2kW Heating | Robust Commercial Performance | 220-240V~50Hz

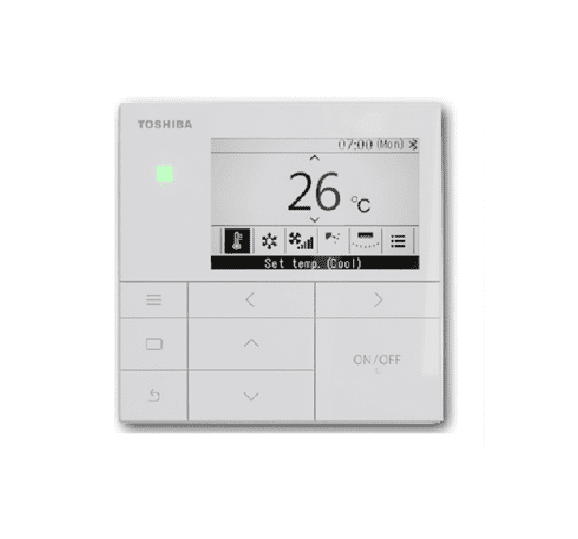

1 × Toshiba RBC-AMSU52-E Wired Controller
Powerful Floor Standing Cabinet for Large Commercial Spaces
The Toshiba RAV-HM1101FT-E floor standing cabinet delivers strong 9.5kW cooling and 11.2kW heating capacity, making it ideal for large commercial areas such as retail premises, office floors, classrooms, hospitality venues, meeting halls and refurbishment projects requiring high airflow and long air throw.
The tall, slim floor-mounted cabinet provides exceptional air distribution, while the GM101ATP-E Digital Inverter outdoor unit ensures excellent seasonal efficiency, low noise output and dependable performance throughout the year. Built for demanding commercial environments, this system offers fast temperature response, wide airflow delivery and quiet operation.
The system includes automatic louvre control, five fan speed selections, integrated controller functions and compatibility with Toshiba’s “Replacement Technology,” enabling re-use of existing R410A/R22 pipework.
Key Product Features:
• Large-capacity 9.5kW cooling / 11.2kW heating
• High-airflow cabinet for long-distance air throw
• Suitable for large open-plan commercial areas
• A/A seasonal efficiency for reduced running costs
• Quiet operation for comfort in occupied spaces
• Automatic louvre control for improved comfort
• Five fan-speed selections
• Digital Inverter outdoor unit for stable operation
• Built-in safeguard features including R32 leak detection
• Compatible with twin / triple / quad indoor setups
• Replacement Technology allows reuse of existing pipework
• Robust, reliable and maintenance-friendly outdoor design
Technical Specifications:

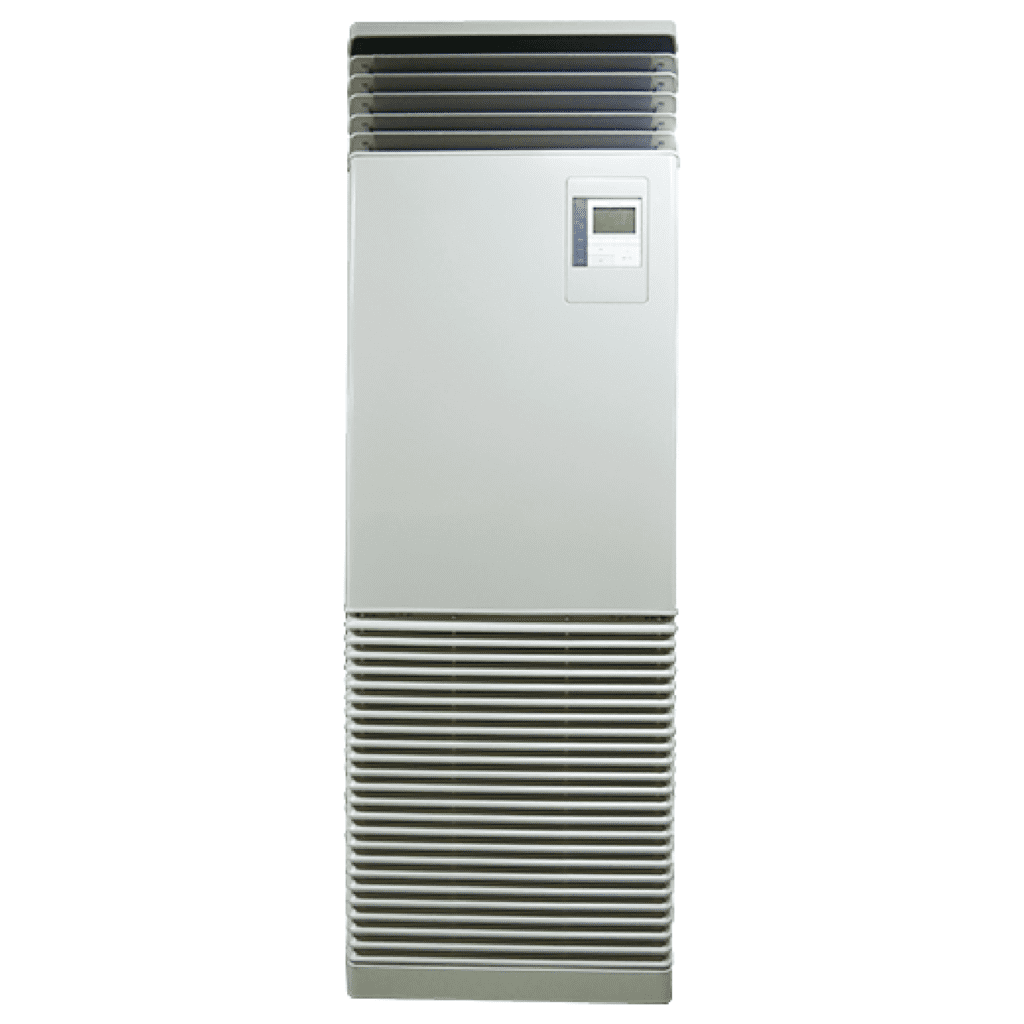

Indoor Unit – RAV-HM1101FT-E
Cooling Capacity: 9.5 kW
Heating Capacity: 11.2 kW
UK Cooling (Total/Sensible): 9.00 / 6.90 kW
UK Heating: 8.01 kW
SEER / SCOP / Energy Class: 5.16 – 3.92 / A – A
Indoor Weight: 59 – 68 kg
Indoor Dimensions (H × W × D): 1750 × 600 × 390 mm
Outdoor Dimensions (H × W × D): 890 × 900 × 320 mm
Indoor Airflow (High–Medium–Low): 461 – 394 – 325 l/s
Outdoor Airflow (High): 4080 – 1133 m³/h
Sound Pressure (H–M–L) ID: 51 – 46 – 41 dB(A)
Sound Pressure (OD): 54 / 57 dB(A)
Power Supply / Fuse Rating: 220–240V / 1Ph / 50Hz & 20A
Interconnecting Cable: 3C+E
Pipe Connections (Gas–Liquid): 5/8″ – 3/8″
Min–Max Pipe Length: 5 – 30 m
Max Height Difference: 30 m
Refrigerant / Additional Charge: R32 / 2.1 kg base charge / 35 g/m
Outdoor Unit – RAV-GM101ATP-E
Cooling: 9.5 kW
Heating: 11.2 kW
Options:
| Model |
Description |
Price |
| RBC-AX31U(W)-E |
Wireless Receiver Kit for 4-Way Cassette |
£191 |
| RBC-AX33UYP-E |
Wireless Receiver Kit for 1-Way Cassette |
£57 |
| RBC-AX31U-E |
Wireless Remote Controller Kit – Ceiling |
£211 |
| RBC-AX31UMP-E |
Wireless Remote Controller Kit – Others (Exclude High Static Ducted) |
£317 |
| RBC-AX31U1-E |
Wireless Receiver Kit for 4-Way Cassette |
£225 |
| RBC-AX31UME-E |
Wireless Receiver Kit for Compact Cassette |
£141 |
| RBC-AX31U4WE-E |
Wireless Remote Controller Kit for 2-Way Cassette |
£142 |
| RBC-AX31U3MP-E |
Wireless Remote Controller Kit for Compact 4-Way White |
£185 |
| RBC-AX31U3MPB-E |
Wireless Remote Controller Kit for Compact 4-Way Black |
£185 |
| RBC-AX33U4PE-E |
Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) |
£185 |
| RBC-AX41U-E |
Wireless Receiver Kit for 4-Way Cassette |
£225 |
| RBC-AXU33UPB-E |
Wireless Remote Controller Kit (IR receiver + handset), Black |
£173 |
| Model |
Description |
Price |
| RBC-AS41E |
Simplified Remote Controller |
£106 |
| RBC-ASCU11-E |
Compact Remote Controller |
£76 |
| RBC-ASCU32YP-E |
Compact Remote Controller |
£81 |
| RBC-AMT32E |
Standard Remote Controller |
£126 |
| RBC-AMT32E2 |
Standard Remote Controller |
£126 |
| RBC-AMT54E |
Standard Remote Controller C/W 24/7 Schedule Timer |
£173 |
| RBC-AMT52E |
Premium Remote Controller C/W 24/7 Schedule Timer |
£173 |
| RBC-AMT52U-E |
Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth |
£157 |
| RBC-MTSC1 |
Mini Touch Screen Controller |
£272 |
| RBC-MTSC2 |
Mini Touch Screen Controller C/W Schedule Timer |
£272 |
| Model |
Description |
Price |
| BMS-CT1280E |
Touch Screen Controller |
£4,189 |
| BMS-CT2560U-E |
256 Touch Screen Controller (Multi-Language) |
£6,143 |
| BMS-CT5121E |
Touch Screen Controller |
£8,733 |
| RBC-BP2 |
Black Pear BMS Controller |
£5,233 |
| RBC-BP1 |
Black Pear Controller For BACnet |
£4,254 |
| RBC-BPM1 |
Black Pear Controller For Modbus |
£4,254 |
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
