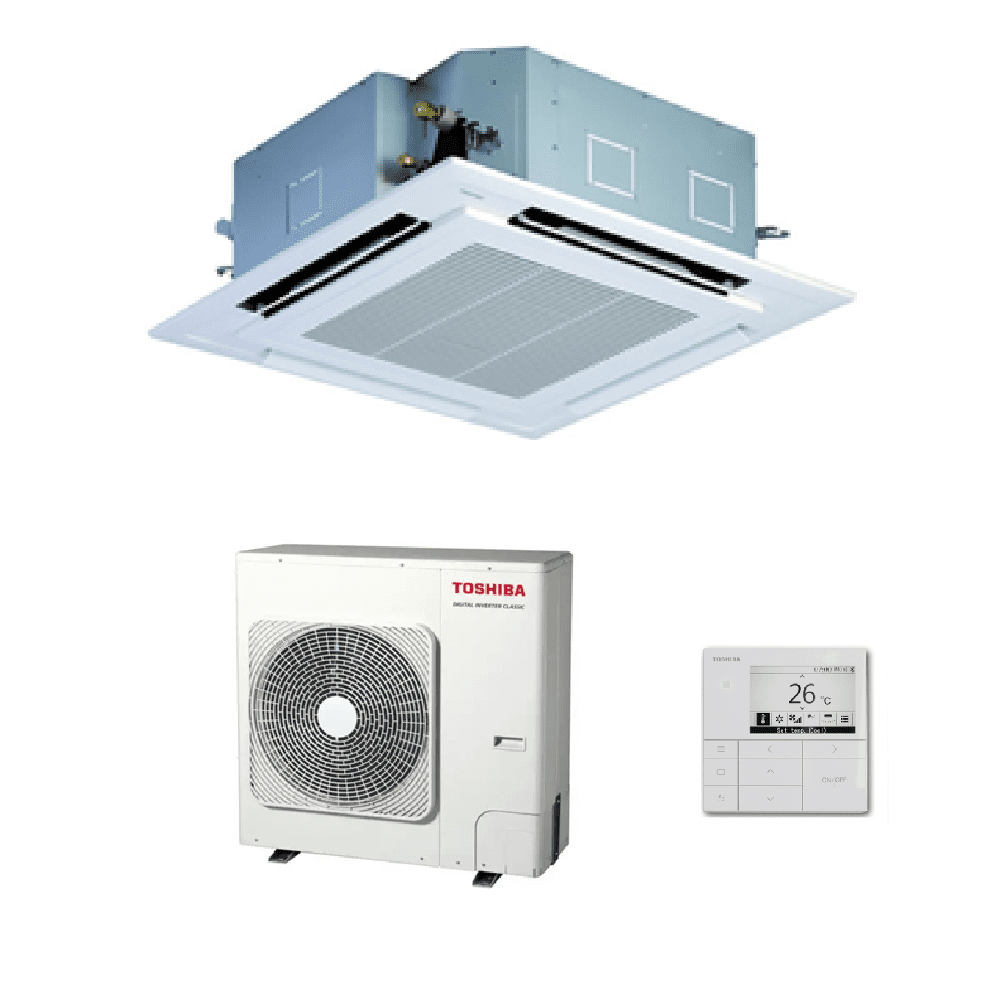

This Kit Includes:

1 × Toshiba 4-Way Cassette Indoor Unit RAV-HM1101UTP-E
9.5kW Cooling / 11.2kW Heating | A++ Cooling | A+ Heating | Ultra-quiet operation | 220-240V~50Hz

1 × Toshiba U33P-E Fascia Panel
600 × 600mm Euro-grid compatible | Slim profile | Detachable louvre for easy cleaning

1 × Toshiba Digital Inverter Outdoor Unit RAV-GM1101ATP-E (Single-Phase)
9.5kW Cooling / 11.2kW Heating | 220–240V~50Hz Heavy-Duty Operation | High efficiency | Quiet, reliable performance

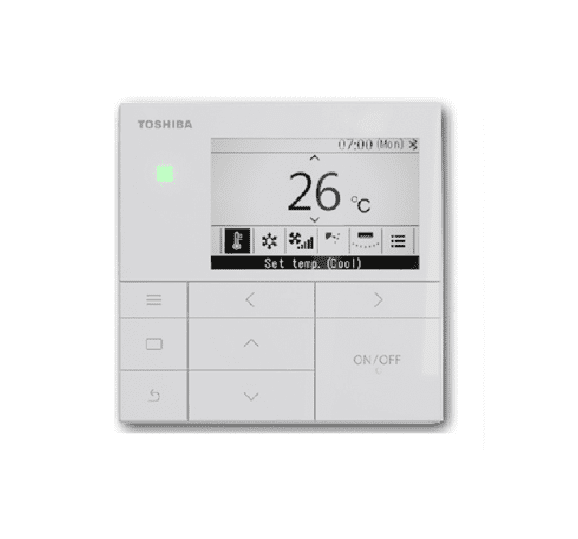

1 × Toshiba RBC-AMSU52-E Wired Controller
Backlit LCD | 7-day scheduling | Service functions | Energy-saving modes

Compact 4-way cassette delivering uniform airflow, powerful cooling & heating for commercial interiors

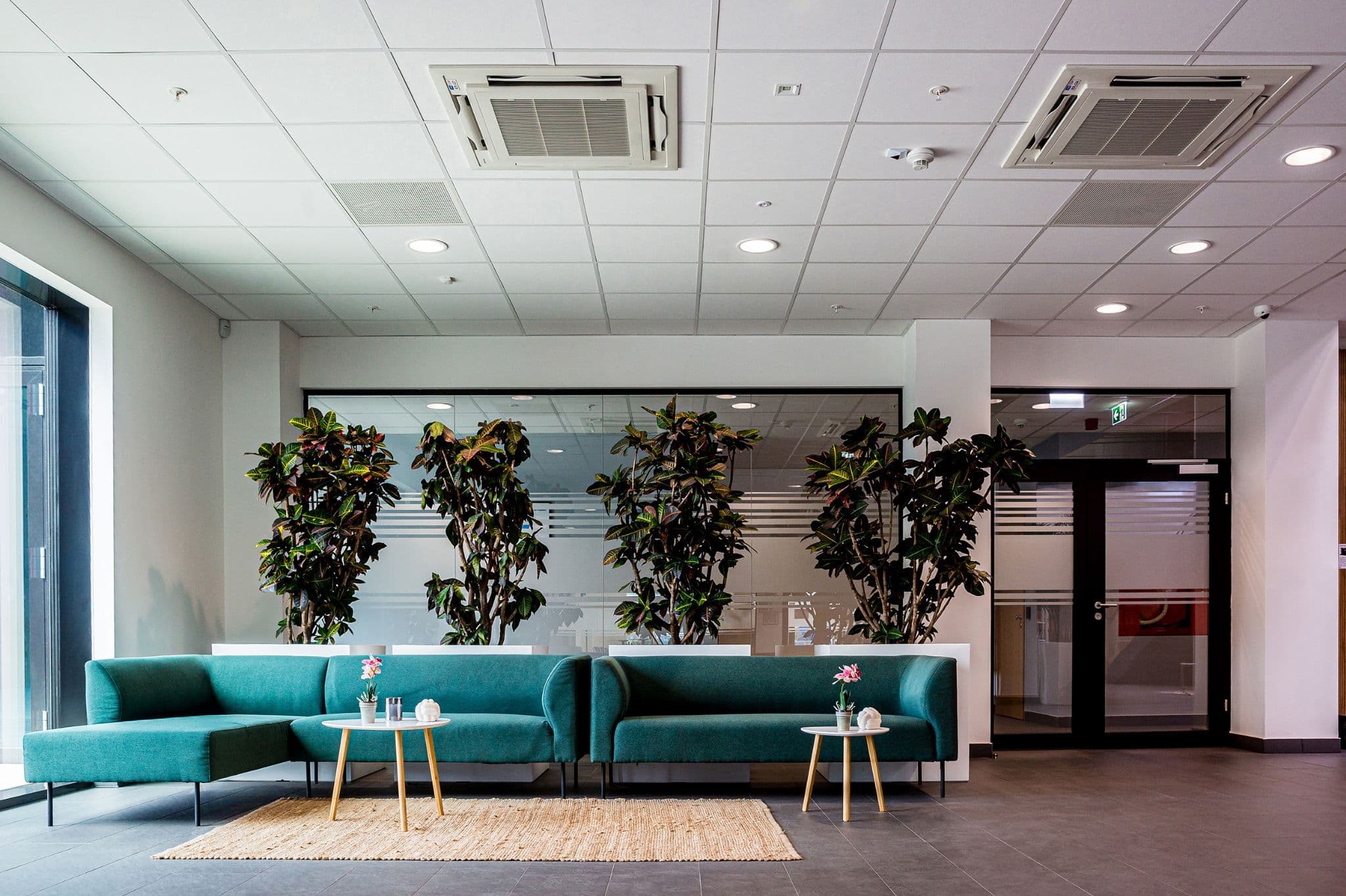

The Toshiba RAV-HM1101UTP-E 4-way cassette system is designed for high-performance climate control in modern commercial spaces. Its 600×600 Fascia allows seamless installation into standard ceiling grids, while the large-diameter fan and intelligent louvre control deliver uniform airflow across offices, shops, meeting rooms and hospitality environments.

Paired with the Digital Inverter RAV-GM1101ATP-E outdoor unit, this system offers highly efficient year-round heating and cooling. With advanced DC inverter technology, improved refrigerant modulation and optimised compressor control, the system maintains stable comfort while reducing running costs.

The cassette’s multi-directional airflow, wide louvre swing, and selectable louvre positioning allow precise room coverage. Built-in self-cleaning functions, Ag-ion anti-mould protection and an integrated high-lift drain pump make it exceptionally reliable and easy to maintain. Quiet indoor operation and flexible pipe lengths further enhance installation versatility throughout retail, commercial and light industrial settings.

Key Product Features:

• 9.5kW cooling / 11.2kW heating capacity

• Stylish 600×600 Euro-grid fascia panel

• Uniform 4-way airflow for even room temperature

• Quiet indoor operation: 43–38–33 dB(A)

• High outdoor airflow: 4080–1133 m³/h

• A++/A+ seasonal efficiency with Digital Inverter technology

• Optional airflow modes: diagonal, opposite, turn-around

• Self-cleaning & Ag-ion anti-mould drain cap

• Integrated high-lift drain pump for easy condensate management

• R32 refrigerant for improved performance and environmental responsibility

• Suitable for commercial offices, retail spaces, hospitality and open-plan areas

• Compatible with wired or infrared controllers

• Designed for single, twin, triple or quad combinations

Technical Specifications:

Indoor Unit – RAV-HM1101UTP-E
Cooling capacity: 9.5 kW
Heating capacity: 11.2 kW
UK Cooling (Total/Sensible): 9.10 / 7.56 kW
UK Heating: 8.01 kW
SEER / SCOP / Energy Label: 6.15 / 4.28 – A++ / A+
Weight (ID–OD): 24 – 68 kg
Dimensions (H×W×D) – Indoor: 319 × 840 × 840 mm
Dimensions (H×W×D) – Outdoor: 890 × 900 × 320 mm
Indoor airflow (H–M–L): 558 – 400 – 325 l/s
Outdoor airflow: 4080 – 1133 m³/h
Sound pressure levels (H–M–L–OD): 43 – 38 – 33 dB(A) / 54 – 57 dB(A)
Suggested Power & Fuse rating: 220/240V~1Ph 50Hz – 20A
Interconnecting cable: 3C+E
Flare connections (gas–liquid): 5/8″ – 3/8″
Min/Max pipe length – height: 5 / 50 – 30 m
Charge-free pipe length: 30 m
Additional refrigerant charge: R32 / 2.1kg / 35 g/m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
