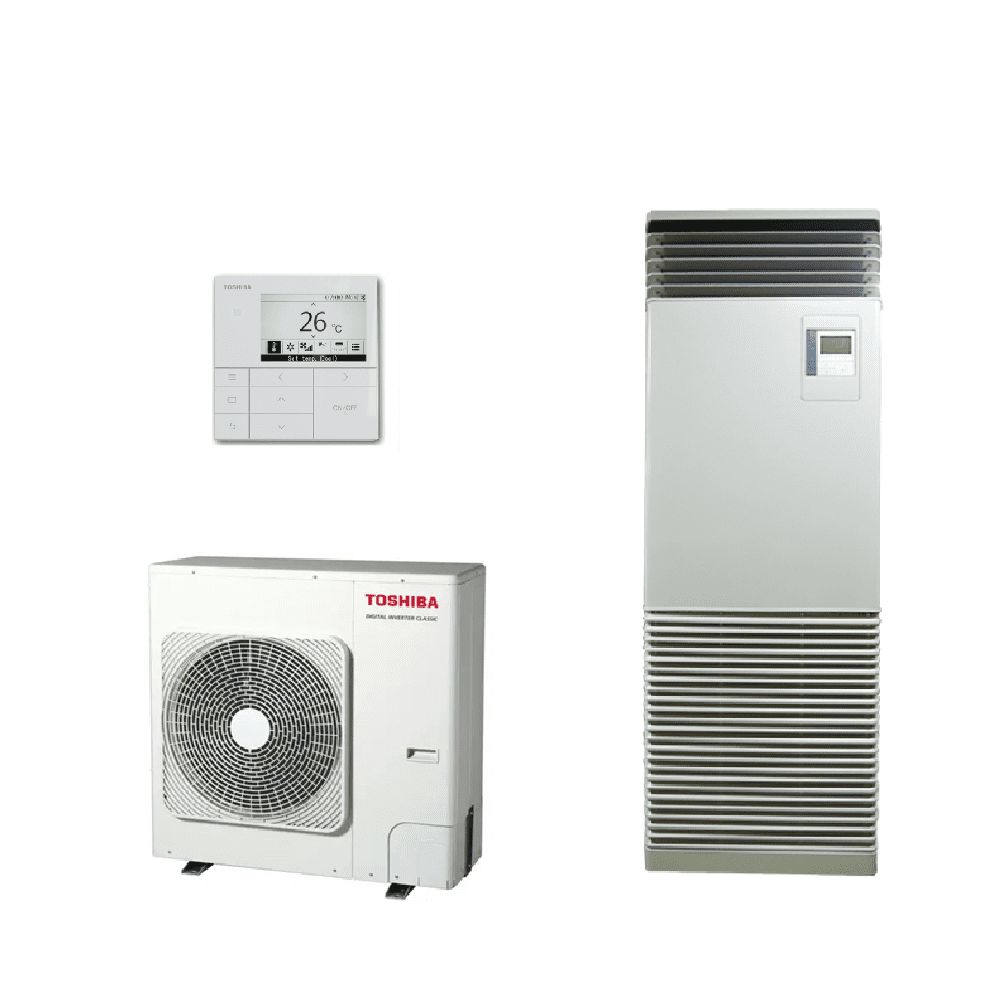

This Kit Includes:

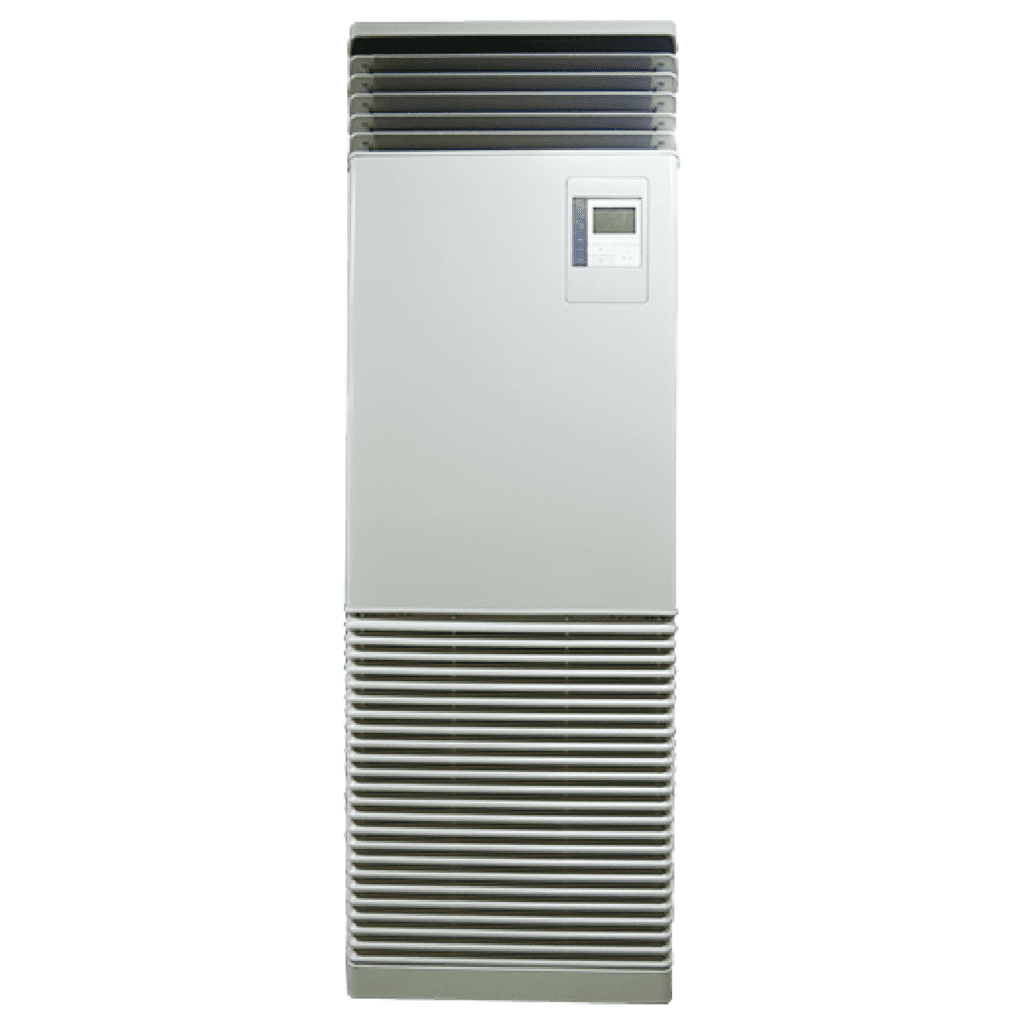

• 1 × Toshiba RAV-HM1101FT-E Floor Standing Indoor Unit
– 9.5kW Cooling / 11.2kW Heating
– A/A+ Energy Performance
– Designed for large commercial rooms with strong airflow throw
– 220-240V~50Hz

• 1 × Toshiba RAV-GM1101AT8P-E Digital Inverter Outdoor Unit
– 9.5kW Cooling / 11.2kW Heating Output
– SEER/SCOP: 5.16 / 3.92 (A / A)
– Durable, commercial-grade chassis with wide operating range
– Single-Phase 220-240V~50Hz

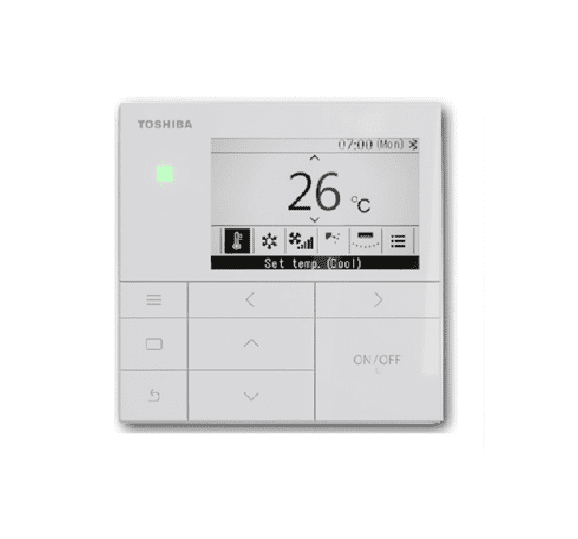

• 1 × Toshiba RBC-AMSU52-E Wired Controller

High-Performance Floor-Standing Climate Control for Large Commercial & Public Spaces

The Toshiba RAV-HM1101FT-E is a powerful floor-standing cabinet designed for areas requiring high airflow, long air throw and rapid temperature stabilisation. With 9.5kW of cooling and 11.2kW of heating, it is ideal for receptions, gyms, restaurants, retail floors, event spaces, halls, classrooms and open-plan offices.

This model forms part of Toshiba’s Digital Inverter Floor Cabinet Series, offering a slim vertical design with excellent access for servicing, strong air delivery, and an embedded controller for ease of use. The unit provides automatic louvre control, five fan-speed modes, and exceptionally quiet operation for its output class.

Paired with the RAV-GM1101AT8P-E outdoor inverter, the system achieves high seasonal efficiency and reliable performance in demanding commercial environments. It is also compatible with Toshiba’s light-commercial multi-combination setups, including twin, triple and quad indoor configurations.

Key Product Features:

• 9.5kW cooling / 11.2kW heating – ideal for large indoor spaces
• High air volume delivery for long-throw airflow
• Digital Inverter compressor for efficient, fast response
• Energy performance: A / A
• Automatic louvre control for optimised comfort
• Five fan-speed settings
• Built-in controller (RBC-AMS55-ES equivalent internal platform)
• R32 refrigerant with leak-detection algorithm and stirring fan
• Suitable for single, twin, triple and quad combinations
• Easy installation and accessible service layout
• Compatible with existing R410A / R22 pipework (“replacement technology”)
• Quiet indoor operation despite high airflow output
• Durable outdoor construction suitable for commercial environments

Technical Specifications:

Indoor Unit – RAV-HM1101FT-E

• Cooling Capacity: 9.5 kW
• Heating Capacity: 11.2 kW
• UK Cooling (Total/Sensible): 9.50 / 7.10 kW
• UK Heating: 8.01 kW
• SEER / SCOP / Energy Class: 5.16 / 3.92 – A / A
• Indoor Sound Pressure (H-M-L): 51 / 46 / 41 dB(A)
• Dimensions (H × W × D): 1750 × 600 × 390 mm
• Weight: 59 – 68 kg
• Airflow (H-M-L): 461 / 394 / 325 l/s
• Pipe Connections (Gas-Liquid): 5/8″ – 3/8″
• Refrigerant: R32 (2.1 kg base charge)

Outdoor Unit – RAV-GM1101AT8P-E

• Cooling Capacity: 9.5 kW
• Heating Capacity: 11.2 kW
• SEER / SCOP: 5.16 / 3.92
• Operating Sound Pressure: 54 / 57 dB(A)
• Dimensions (H × W × D): 890 × 900 × 320 mm
• Weight: 59 – 68 kg
• Outdoor Airflow (High): 4080 – 1133 m³/h
• Suggested Power / Fuse Rating: 380/415V~50Hz & 10A (3C+E)
• Min/Max Pipe Length: 5 – 30 m
• Max Height Difference: 30 m
• Charge-Free Pipe Length: 30 m
• Additional Refrigerant Charge: 35 g/m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
