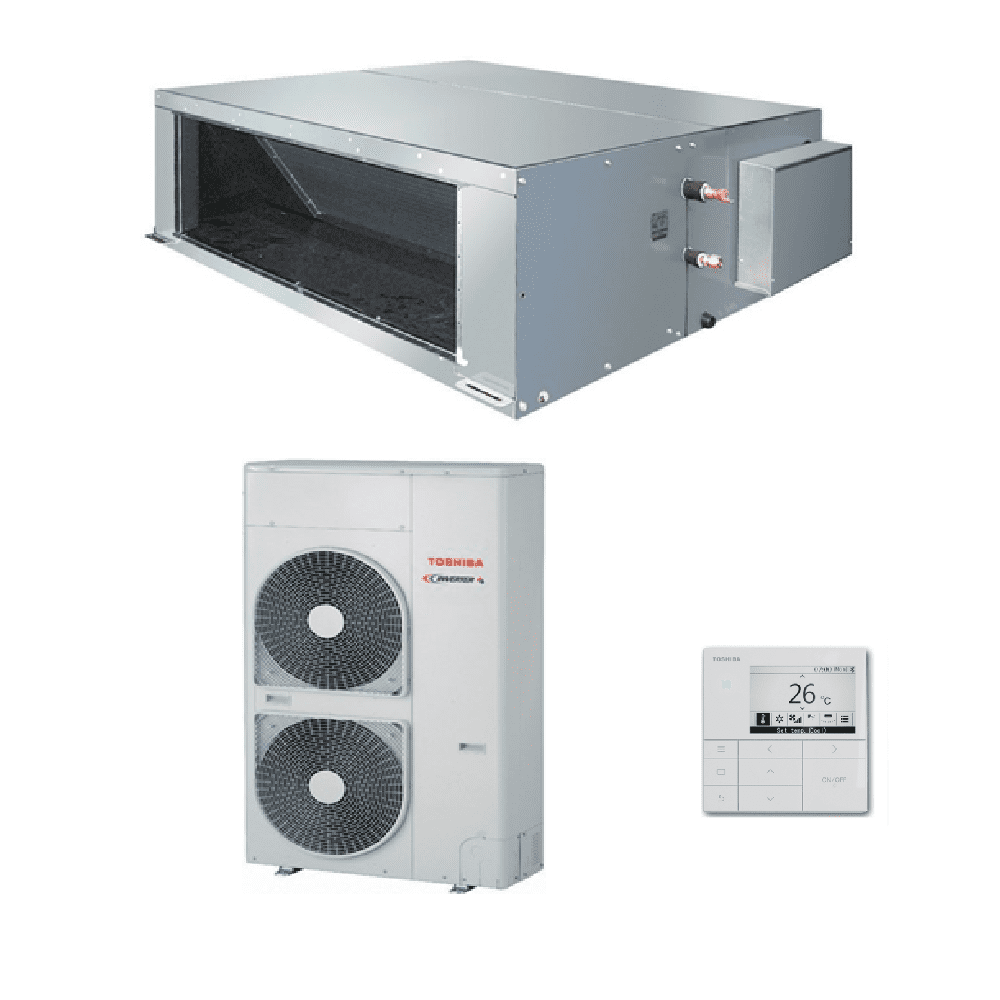

This Kit Includes:

1 × Toshiba RAV-RM2801DTP-E2 High Static Ducted Indoor Unit
– 22.5kW Cooling / 24.0kW Heating
– High Static Pressure up to 250Pa
– 3-Stage Selectable Pressure Settings
– Large Airflow Capacity for Wide, Open Spaces
– Ideal for Retail, Gyms, Foyers, Restaurants & Halls

1 × Toshiba RAV-GM2803AT8P-E Digital Inverter Outdoor Unit (3-Phase)
– 22.5kW Cooling / 24.0kW Heating Output
– Heavy-Duty Twin Rotary Digital Inverter Compressor
– 380-415V~50Hz/60Hz Commercial-Grade Operation
– High Capacity, High Efficiency, Large Air Volume

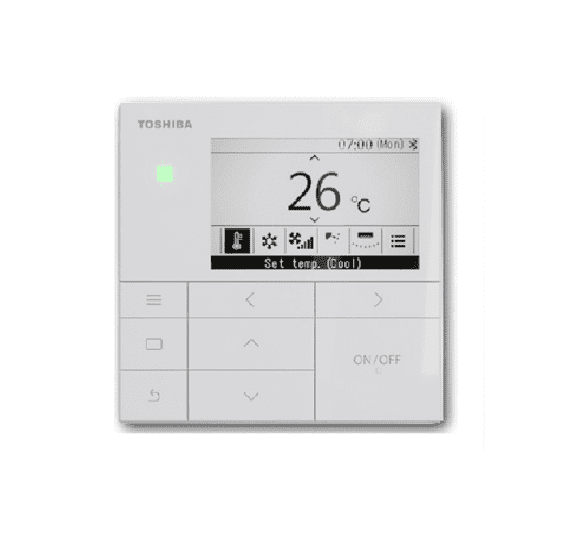

1 × Toshiba RBC-AMSU52-E Wired Controller

22.5kW High Static Ducted System for Large Commercial Applications

The Toshiba RAV-RM2801DTP-E2 high static ducted system is one of the most powerful units in the Toshiba Digital Inverter range. Designed for large commercial spaces, it provides extremely high airflow, strong external static pressure, and exceptional installation flexibility for long duct runs, multi-branch systems and multiple grille configurations.

Delivering 22.5kW cooling and 24.0kW heating, this system is suitable for large open areas such as gyms, restaurants, pubs, retail showrooms, hotel lobbies, leisure centres, and industrial offices.

Its paired outdoor unit, the RAV-GM2803AT8P-E uses Toshiba’s advanced twin-rotary Digital Inverter compressor, offering exceptional reliability, powerful performance under load, and outstanding seasonal operating efficiency.

Perfect for projects requiring large airflow volumes, high capacity, and stable temperature control across big spaces, all with Toshiba’s renowned quiet operation and efficient engineering.

Key Product Features:

• 22.5kW cooling / 24.0kW heating output
• High static pressure ducted indoor unit (up to 250Pa)
• Massive airflow output — ideal for large commercial zones
• 3-stage selectable static pressure options
• Twin-rotary Digital Inverter compressor for smooth performance
• Quiet operation suitable for large public environments
• Slim indoor chassis with strong airflow distribution
• Supports long pipe runs and multi-branch duct design
• Heavy-duty 3-phase power supply for commercial use
• Wired controller included (RBC-AMSU52-E)
• R32 refrigerant for lower environmental impact
• Ideal for gyms, restaurants, hotel foyers, retail spaces & leisure centres

Technical Specifications:

Indoor Unit – RAV-RM2801DTP-E2 (High Static Ducted)

Cooling Capacity: 22.5 kW
Heating Capacity: 24.0 kW
UK Cooling (Total/Sensible): 21.98 / 19.54 kW
UK Heating: 14.85 kW
SEER / SCOP / Energy Class: 5.50 – 3.70 / 217.0 / 145.0
Indoor Weight: 97 – 117 kg

Dimensions (H × W × D):
• Indoor Unit: 448 × 1400 × 900 mm
• Outdoor Unit: 890 × 1100 × 460 mm

Indoor Airflow (H-M-L): 1333 – 1167 – 972 l/s
External Static Pressure: (250 – 50) Pa
Outdoor Airflow: 7600 – 2111 m³/h
Sound Pressure (Indoor – H/M/L): 46 – 42 – 38 dB(A)
Sound Pressure (Outdoor): 61 / 63 dB(A)

Suggested Power / Fuse Rating: 380/415V~50Hz & 25A
Interconnecting Cable: 3C+E
Pipe Connections (Gas–Liquid): 1 1/8″ – 1/2″
Min/Max Pipe Length: 5 – 100 m
Max Height Difference: 30 m
Charge-Free Pipe Length: 30 m
Refrigerant / Additional Charge: R32 / 4.6 kg / 80 g/m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
