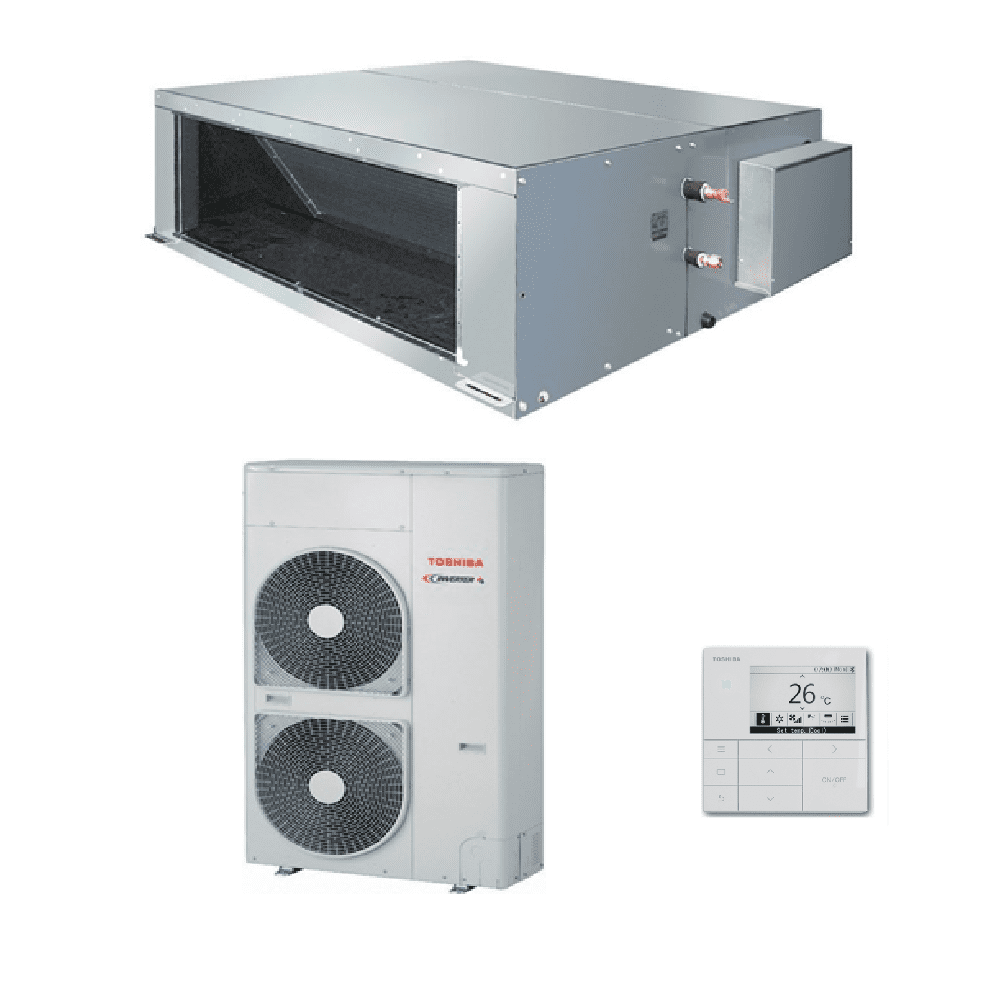

This Kit Includes:

1 × Toshiba RAV-RM2241DTP-E2 High Static Ducted Indoor Unit
– 19.0kW Cooling / 22.4kW Heating
– High Static Pressure Design (up to 196Pa)
– Low Noise / Slim Installation Profile
– 3-Stage Selectable Static Pressure
– Ideal for Large Open Areas (Shops, Gyms, Halls)

1 × Toshiba RAV-GM2243AT8P-E Digital Inverter Outdoor Unit (3-Phase)
– 19.0kW Cooling / 22.4kW Heating
– Twin Rotary Digital Inverter Compressor
– 380-415V~50Hz/60Hz Heavy-Duty Operation
– High Capacity with Excellent Efficiency

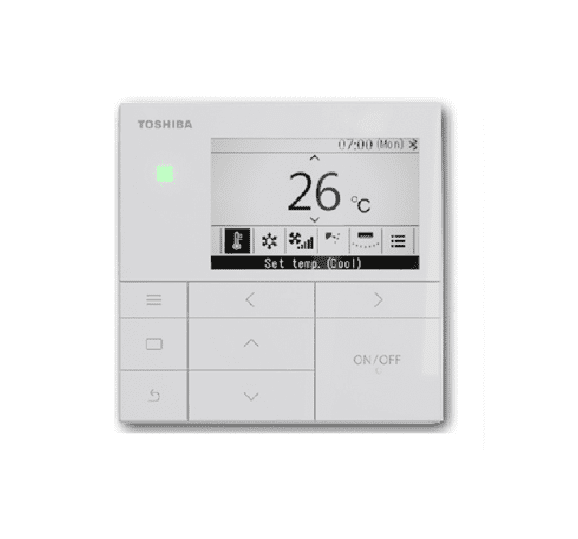

1 × Toshiba RBC-AMSU52-E Wired Controller

19kW High-Capacity Heating & Cooling for Large Commercial Spaces

The Toshiba RAV-RM2241DTP-E2 high static ducted system is engineered for environments requiring large airflow volumes, long duct runs and strong external static pressure, such as hotel foyers, retail units, gyms, open-plan offices, restaurants, and large commercial halls.

With a cooling capacity of 19.0kW and heating output of 22.4kW, this system provides powerful climate control while maintaining quiet operation and compact mechanical dimensions for easy installation in ceiling voids.

The matched RAV-GM2243AT8P-E 3-phase outdoor unit uses Toshiba’s high-efficiency twin-rotary Digital Inverter compressor, delivering strong performance, excellent part-load efficiency, and reliable operation in demanding environments.

This high-static system allows long duct runs, multi-branch layouts, and various diffuser configurations, ideal for large commercial HVAC projects where flexibility and airflow are critical.

Key Product Features:

• 19.0kW cooling / 22.4kW heating power
• High static pressure up to 196Pa
• 3-stage selectable static pressure settings
• Digital Inverter outdoor unit for high efficiency
• Twin-rotary compressor for smooth, quiet operation
• Ideal for large shops, gyms, restaurants and retail premises
• Slim indoor chassis for tight ceiling spaces
• Supports long pipe runs and complex duct layouts
• Space-saving outdoor design with heavy-duty 3-phase supply
• Quiet operation suitable for public environments
• Compatible with wired and infra-red controllers
• Includes RBC-AMSU52-E wired controller
• R32 refrigerant for lower environmental impact

Technical Specifications:

Indoor Unit – RAV-RM2241DTP-E2 (High Static Ducted)

Cooling Capacity: 19.0 kW
Heating Capacity: 22.4 kW
UK Cooling (Total/Sensible): 18.56 / 15.62 kW
UK Heating: 13.82 kW
Energy Efficiency (SEER / SCOP): 6.30 – 3.80 / 249.0 / 149.0
Weight (Indoor): 97 – 117 kg
Dimensions (H × W × D) – Indoor: 448 × 1400 × 900 mm
Dimensions (H × W × D) – Outdoor: 890 × 1100 × 460 mm
Indoor Airflow (H-M-L): 1055 – 889 – 694 l/s
External Static Pressure: (250 – 50) Pa
Outdoor Airflow: 6600 – 1833 m³/h
Sound Pressure (Indoor): 44 – 40 – 36 dB(A)
Sound Pressure (Outdoor): 58 / 60 dB(A)
Suggested Power / Fuse: 380/415V~50 & 25A
Interconnecting Cable: 4wC+E
Pipe Connections (Gas–Liquid): 1 1/8″ – 1/2″
Min/Max Pipe Length: 5 – 100 m
Max Height Difference: 30 m
Charge-Free Length: 30 m
Refrigerant / Additional Charge: R32 / 4.6 kg / 80 g/m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
