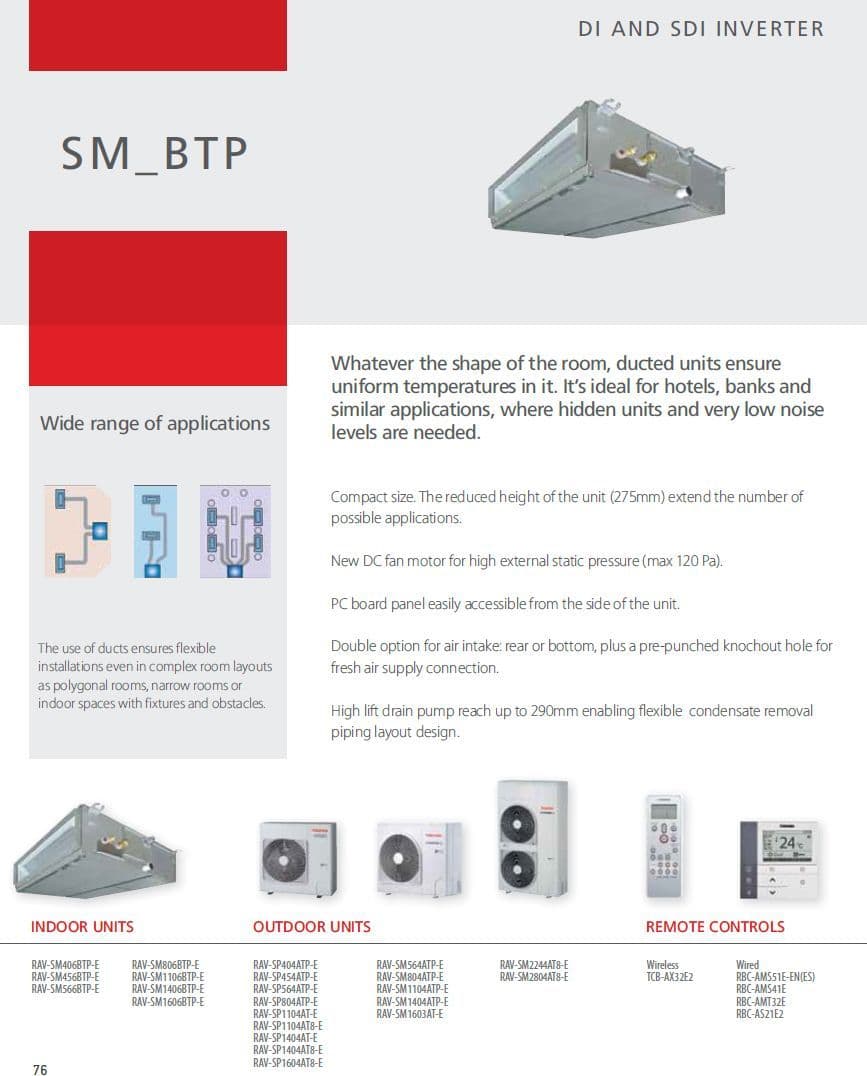

Toshiba ducted air conditioning heat pumps for commercial and residential applications. Ideal for concealed cooling and heating and multiple area applications or irregular shaped rooms. Toshiba ducted air conditioning units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels. Condensate Pump included. This range is ideal for small to medium sized commercial buildings such as offices, shops and restaurants. All systems are inverter driven, utilizing R410A refrigerant and range in capacity from 1.5 to 16kW. Pure air and comfort in your working space succinctly define the requirements that an air-conditioning system must satisfy. Toshiba has applied its expertise to create the most efficient system that meets these requirements with even greater sophistication and efficiency than ever before. The Toshiba ducted air conditioning units use Toshiba's R22 and R407C replacement technology so pipe services will not need to be replaced. The PC board and wiring panel has easy side access for easy service.
Product Key Feature's:
- Model fits in ceiling void, compact construction
- High EER, low annual power consumption
- Low height single fan outdoor units
- Cooling operation down to -15°C ambient
- High CoP, up to record 3.84

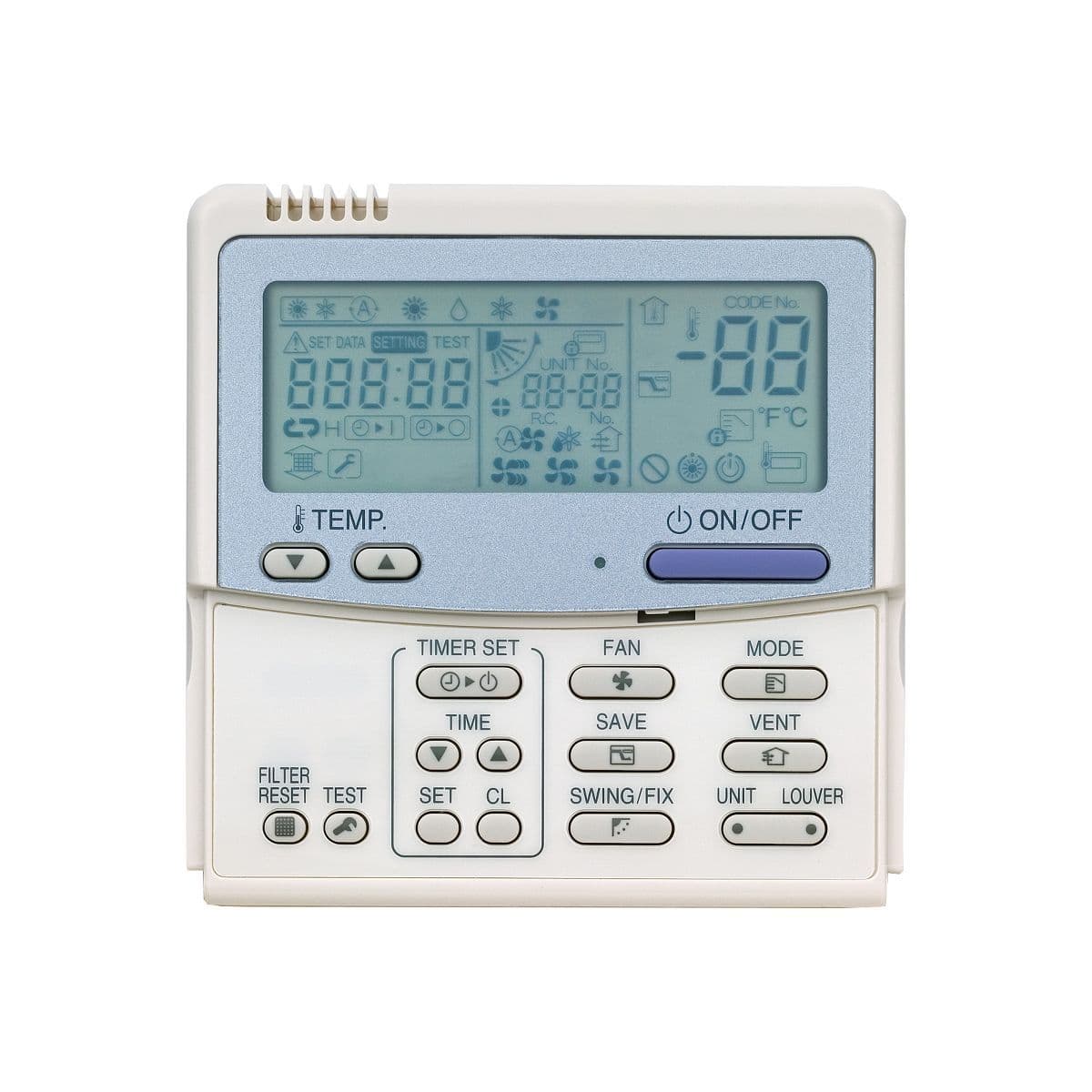

- Wired remote controller
- Pipe runs up to 30 meters
- Low noise 25dBA on low
- Cold draft prevention on heat pump start up
- Fault diagnosis
- Auto re-start after power interruption
- PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length
- Light weight noise absorbing outdoor unit
- R22 & R407C replacement technology
- External static pressure can be raised up to 120Pa
- Lift pump up to 850mm lift or gravity drain
- Low noise: low fan speed down to 25dB(A)
- Ideal for restricted ceiling voids only 275mm high
- Base or rear return air with filter

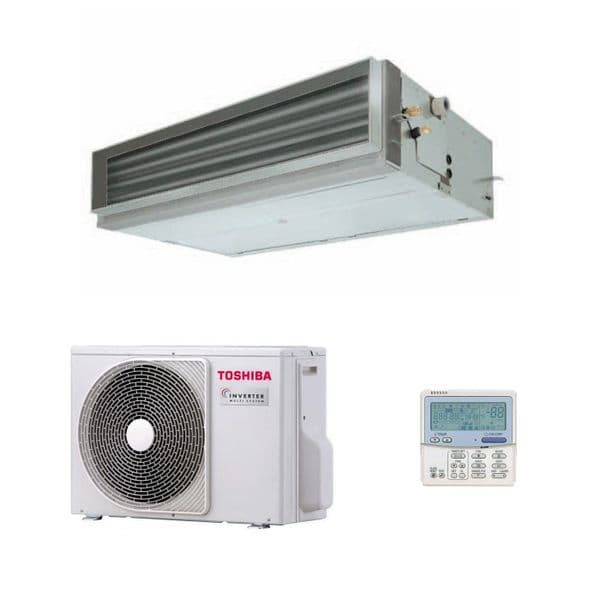

RAV Ducted RAV-SM566BTP-E
Power source 1 ph 240V
Type Inverter rotary
COOLING (nominal) max. kW 3.5 / 13000 BTU
HEATING (nominal) max. kW 4.0 / 16000 BTU
UK Cooling (max) kW 3.0 / 12000 BTU
UK Heating (max) kW 3.8 / 14000 BTU
Fuse Rating 16A
E.E.R. n/a
Energy label in heating A
Energy label in cooling A+
C.o.P 3.84
ECA - Yes
Exterior dimensions (mm) 750 x 700 x 275
Discharge Spigots: flat surface
Net weight kg 23
Air flow rate* (cooling) (m3//hr) 789 - 630 - 480
Outdoor Unit
Exterior dimensions (mm) 550 x 780 x 290
Net weight kg 40
Power Source Rating MCB A 16A
Refrigerant max piping length m 30
Pipe sizes - 1/4" x 1/2"
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
