Toshiba ducted air conditioning heat pumps for commercial and residential applications. Ideal for concealed cooling and heating and multiple area applications or irregular shaped rooms. Toshiba ducted air conditioning units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels. Condensate Pump included. This range is ideal for small to medium sized commercial buildings such as offices, shops and restaurants. All systems are inverter driven, utilizing R410A refrigerant and range in capacity from 1.5 to 12.5kW. Pure air and comfort in your working space succinctly define the requirements that an air-conditioning system must satisfy. Toshiba has applied its expertise to create the most efficient system that meets these requirements with even greater sophistication and efficiency than ever before. The Toshiba ducted air conditioning units use Toshiba's R22 and R407C replacement technology so pipe services will not need to be replaced. The PC board and wiring panel has easy side access for easy service.

Product Key Feature's:


• Model fits in ceiling void, compact construction
• High EER, low annual power consumption
• Low height single fan outdoor units
• Cooling operation down to -15°C ambient
• R22 replacement technology (3 series outdoor units only)
• High CoP, up to record 3.41

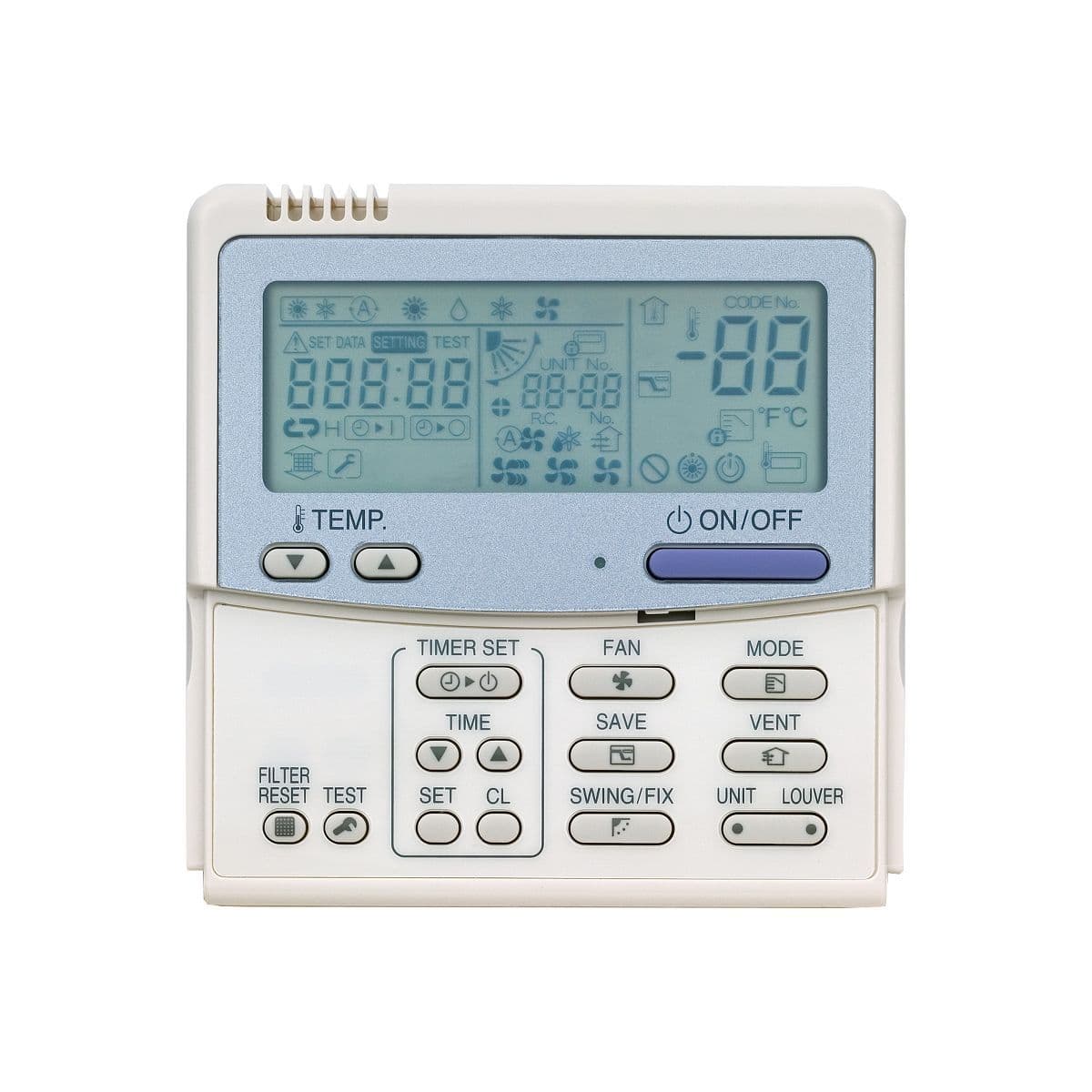

• Wired remote controller
• Slim construction 320mm
• Pipe runs up to  50 meters
• Low noise 33dBA on low
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
• Light weight noise absorbing outdoor unit

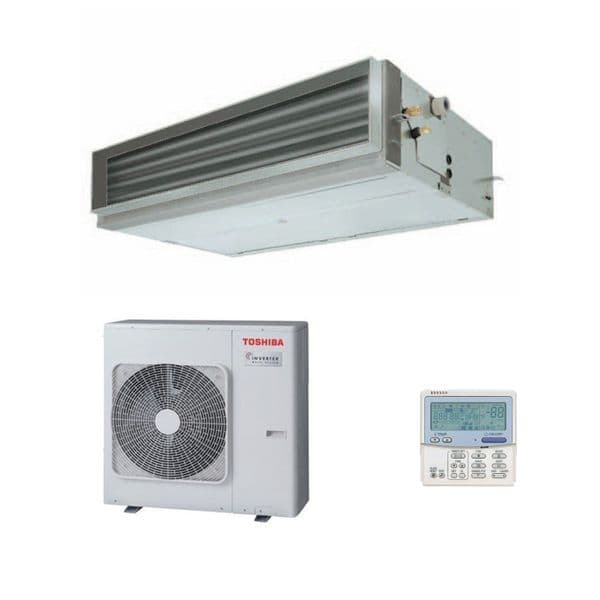

RAV Ducted RAV-SM1606BTP-E
Power source 1 ph 240V
Type  Inverter  rotary
COOLING (nominal) max. kW 14 / 48000 BTU
HEATING (nominal) max. kW 16.0 / 54000 BTU

Indoor Unit:

Exterior dimensions (mm) 275 x 1400 x 750
Discharge Spigots: 200mm
Net weight kg 40
Air flow rate* (cooling) (m3//min)  38 / 41 / 44
Air flow rate* (heating) (m3//min)  53 / 54

Outdoor Unit:

Exterior dimensions (mm)  890 x 900 x 320
Net weight kg 99
Power Source Rating MCB A 32A
Refrigerant max piping length m 50
Pipe sizes - 3/8" x  5/8"
