This Kit Includes:

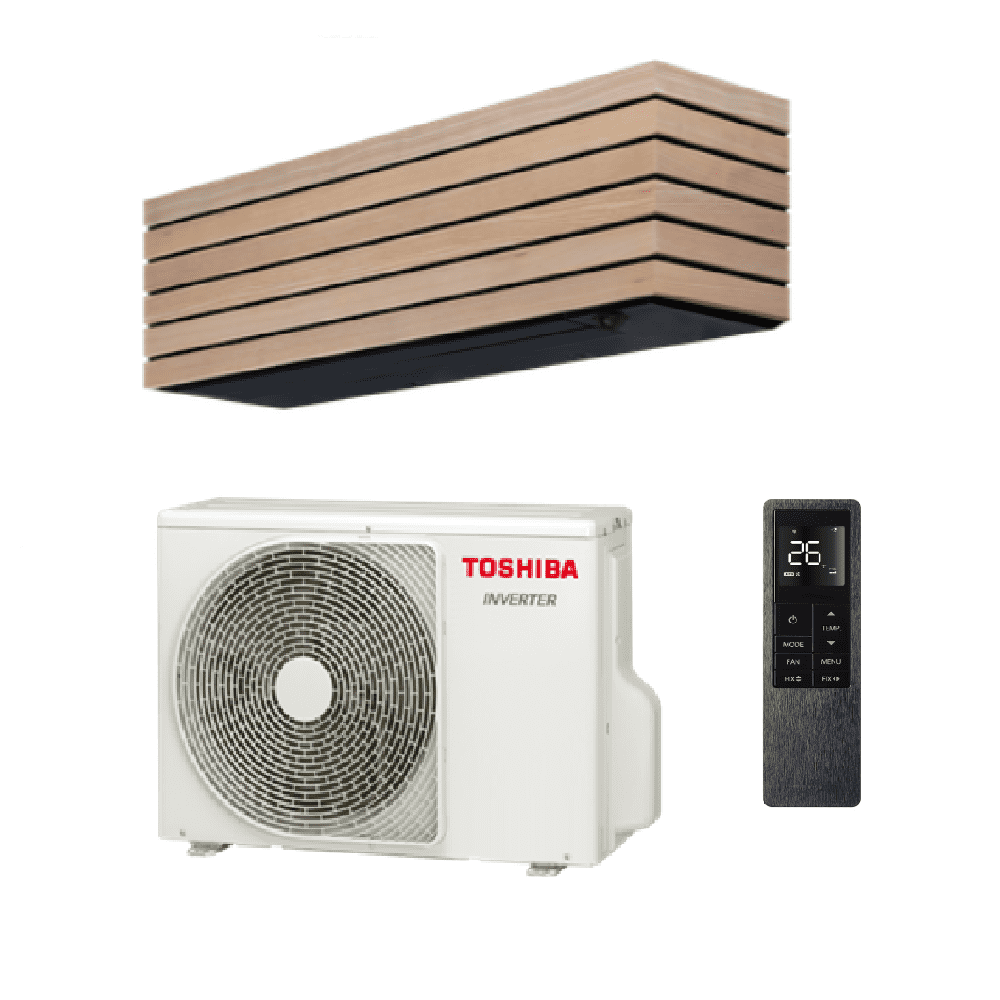

1 × Toshiba DAISEIKAI 10 Wood Indoor Unit RAS-B10S4KVDG-E 2.5kW/9000Btu A+++ 220-240V~50Hz
1 × Toshiba DAISEIKAI 10 Outdoor Unit RAS-10S4AVPG-E 2.5kW/9000Btu A+++ 220-240V~50Hz
1 × Toshiba WH-UD01UE Standard Wireless Remote Controller

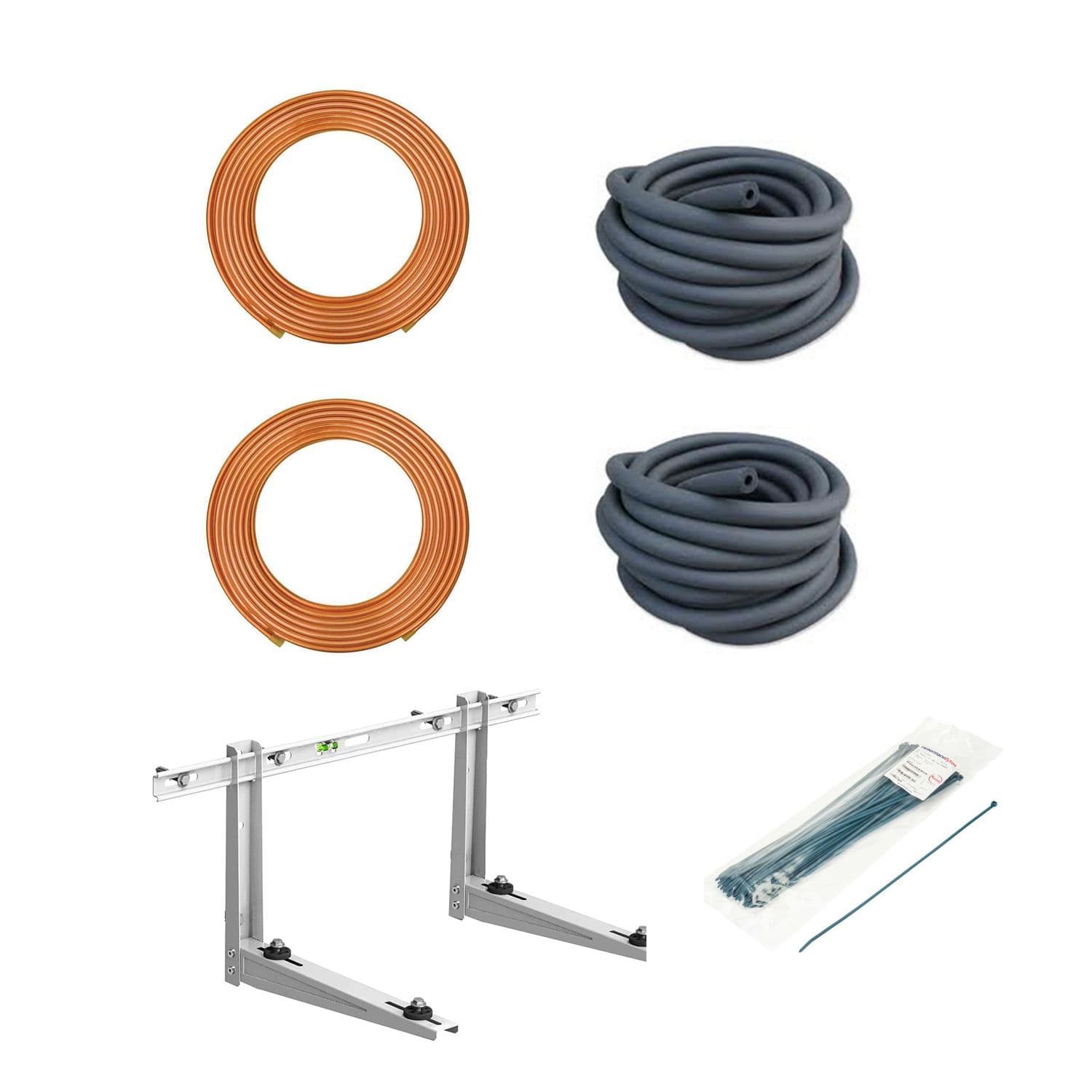

15 Meters x 1/4 inch coil pipe.
15 Meters x 3/8 inch coil pipe.
8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
Wall Bracket BJ TYPE 2 BRACKETS 60KG LOAD
Premium Seasonal Efficiency – A+++ Rated Cooling
The Toshiba DAISEIKAI 10 Wood 2.5kW is a beautifully engineered high-wall heat pump system that combines exceptional energy efficiency with a unique natural wood-finish aesthetic. Designed for high-end residential environments, studios and contemporary interiors, the DAISEIKAI 10 Wood elevates comfort and décor simultaneously — offering one of the quietest and most efficient premium wall-mounted systems available today.
Built around Toshiba’s flagship inverter platform and advanced R32 technology, the 2.5kW model delivers A+++ cooling performance and A++ heating efficiency, ensuring ultra-low energy consumption throughout the year. With whisper-quiet operation down to 19dB(A), the indoor unit creates a calm and unobtrusive environment suitable for bedrooms, high-specification living spaces and work-from-home setups.
The DAISEIKAI 10 Wood includes a suite of comfort-enhancing features such as 3D airflow, long-reach air distribution, ECO energy-saving logic, a self-cleaning heat exchanger, sophisticated filtration, and ultra-precise inverter modulation for rapid and stable temperature control. Premium build quality ensures long-term reliability, while the wood-effect panel provides a warm, natural finish that blends effortlessly with Scandinavian, contemporary and premium interior design schemes.
For homeowners seeking elegant styling matched with world-class performance, the DAISEIKAI 10 Wood offers a luxurious, efficient and whisper-quiet climate control solution for small to medium-sized rooms.
Key Product Features:
-
2.5kW cooling / 3.2kW heating
-
A+++ cooling / A++ heating seasonal energy efficiency
-
Ultra-quiet indoor sound pressure: 19dB(A) (quiet mode)
-
Outdoor quiet mode available (Silent CDU#2)
-
SEER up to 7.21 / SCOP up to 5.33
-

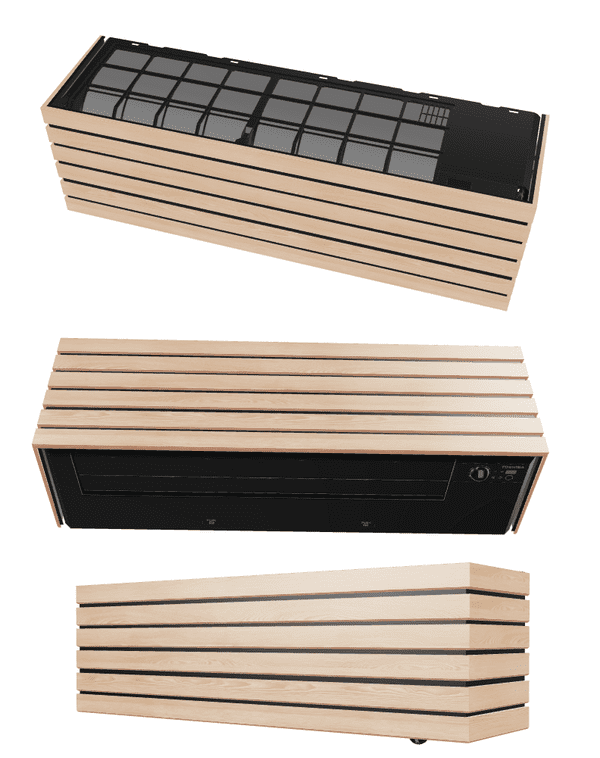

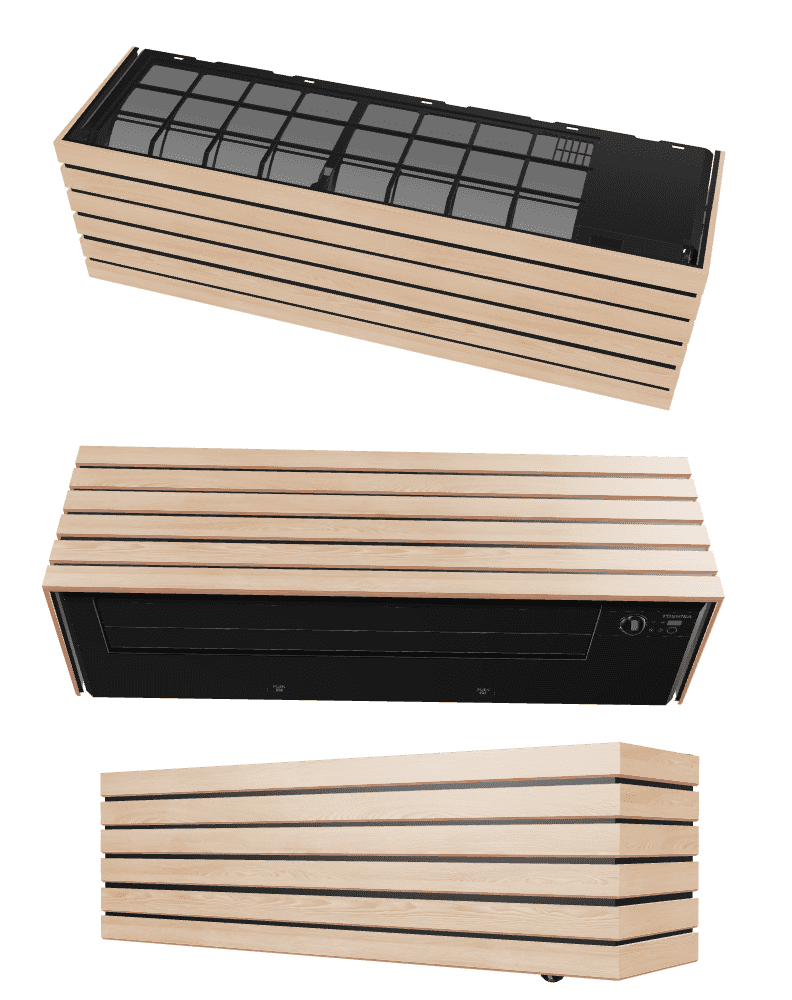

Natural wood-finish indoor panel for premium interior design
-

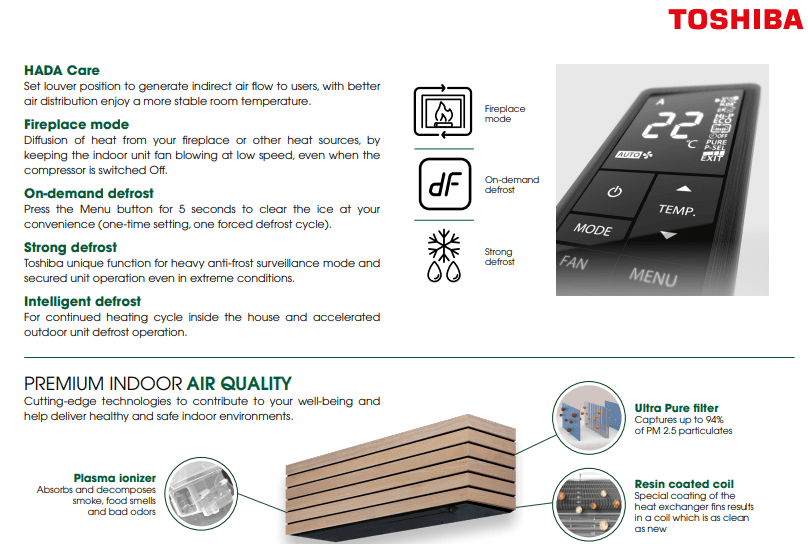

High-purity filtration and self-cleaning heat exchanger
-
ECO-Logic mode minimises energy consumption
-
Long-reach, high-volume airflow for rapid temperature control
-
Wireless remote controller (WH-UD01UE) included
-
3D airflow with motorised horizontal and vertical louvers
-
Auto-diagnosis and advanced inverter modulation
-
Robust outdoor performance with twin-rotary compressor
-
Ideal for bedrooms, living rooms, studios and premium interiors
Technical Specifications:
| Category |
Specification |
| Cooling Capacity |
2.5 kW |
| Heating Capacity |
3.2 kW |
| SEER |
7.21 |
| SCOP (Ave.) |
5.33 |
| Energy Rating (Cooling) |
A+++ |
| Energy Rating (Heating) |
A++ |
| Cooling Operating Range |
–10°C to +46°C |
| Heating Operating Range |
–15°C to +24°C |
| Indoor Sound Pressure (Cooling) |
40 / 24 / 19 dB(A) |
| Indoor Sound Pressure (Heating) |
41 / 25 / 19 dB(A) |
| Indoor Airflow (Cooling) |
750 – 208 m³/h |
| Indoor Airflow (Heating) |
750 – 208 m³/h |
| Indoor Dimensions (H×W×D) |
293 × 940 × 257 mm |
| Indoor Weight |
14 kg (Wood version) |
| Outdoor Sound Pressure (Cooling) |
44 dB(A) |
| Outdoor Sound Pressure (Heating) |
45 dB(A) |
| Outdoor Dimensions (H×W×D) |
630 × 830 × 300 mm |
| Outdoor Weight |
34 kg |
| Compressor Type |
DC Twin Rotary |
| Refrigerant Type |
R32 |
| Refrigerant Charge |
1.00 kg |
| Liquid / Gas Pipe Size |
1/4" – 3/8" |
| Max Pipe Length |
25 m |
| Max Height Difference |
15 m |
| Charge-Free Length |
15 m |
| Power Supply |
220-240V / 1Ph / 50Hz |
