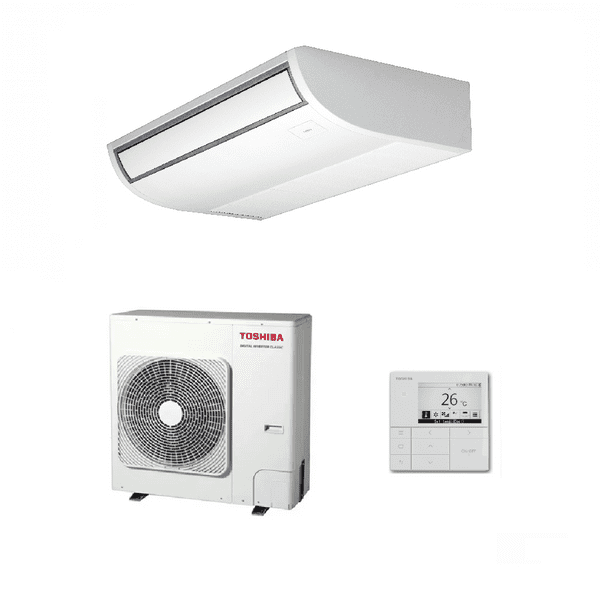

This Kit Includes:

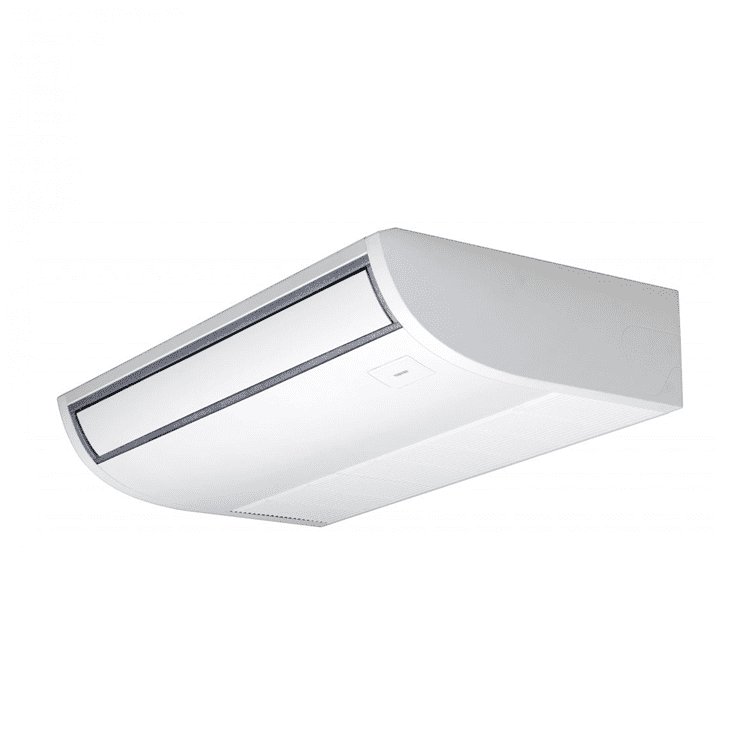

1 × Toshiba Ceiling Suspended Indoor Unit RAV-HM1101CTP-E
9.5kW Cooling / 11.2kW Heating | A+ / A++ Efficiency | 220-240V~50Hz

1 × Toshiba Digital Inverter Outdoor Unit RAV-GM1101ATP-E
9.5kW Cooling / 11.2kW Heating | High Efficiency Digital Inverter | 220-240V~50Hz

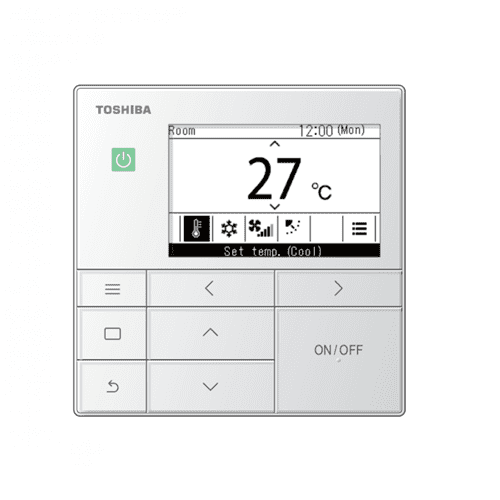

1 × Toshiba RBC-AMSU52-E Wired Controller

High-Capacity 9.5kW Ceiling Suspended Climate Control for Large Commercial Areas

This powerful Toshiba ceiling-suspended system is designed for cooling and heating larger commercial rooms such as restaurants, classrooms, open-plan offices, retail units and community buildings. The RAV-HM1101CTP-E indoor unit delivers wide, long-throw airflow with a slim under-ceiling design, ideal where no ceiling void exists.

With a substantial 9.5kW cooling and 11.2kW heating capacity, this unit provides strong temperature control even in demanding environments. Airflow is smooth and evenly distributed, helped by Toshiba’s high-efficiency DC motor and precise inverter modulation.

Paired with the robust RAV-GM1101ATP-E Digital Inverter outdoor unit, the system achieves stable performance, reduced power consumption and improved year-round comfort. Noise levels remain low for its class, making it suitable for occupied workspaces and learning environments.

This combination offers professional-grade reliability, simple wired control, and a flexible installation footprint suitable for most commercial settings.

Key Product Features:

• 9.5kW cooling / 11.2kW heating output
• Ceiling-suspended indoor unit ideal for larger commercial rooms
• Wide-angle airflow for effective distribution across large spaces
• Low noise indoor operation: 44 / 38 / 32 dB(A)
• Outdoor airflow up to 4080 m³/h
• A+ cooling / A++ heating seasonal efficiency
• High-efficiency Digital Inverter outdoor unit
• R32 refrigerant for improved environmental performance
• Wired controller included (RBC-AMSU52-E)
• Slimline ceiling-suspended design for areas without ceiling voids
• Reliable and energy-efficient commercial climate control

Technical Specifications:

Indoor Unit: RAV-HM1101CTP-E
Outdoor Unit: RAV-GM1101ATP-E

Cooling Capacity: 9.5 kW
Heating Capacity: 11.2 kW

UK Cooling (Total/Sensible): 9.10 / 7.18 kW
UK Heating: 8.01 kW

SEER / SCOP / Energy Label: 5.86 / 4.27 – A+ / A++

Indoor Dimensions (H × W × D): 235 × 1586 × 690 mm
Outdoor Dimensions (H × W × D): 890 × 900 × 320 mm

Indoor Airflow (H-M-L): 517 / 375 / 283 l/s
Outdoor Airflow (High): 4080 – 1133 m³/h

Sound Pressure (Indoor H-M-L): 44 / 38 / 32 dB(A)
Outdoor Sound Pressure: 54 / 57 dB(A)

Suggested Power & Fuse Rating: 220/240-1-50 & 20 A
Interconnecting Cable: 3C+E

Flare Connections (Gas-Liquid): 5/8″ – 3/8″
Min/Max Pipe Length: 5 / 50 m
Max Height Difference: 30 m
Charge-Free Pipe Length: 20 m
Refrigerant & Charge: R32 / 2.1 kg / 35 g/m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
