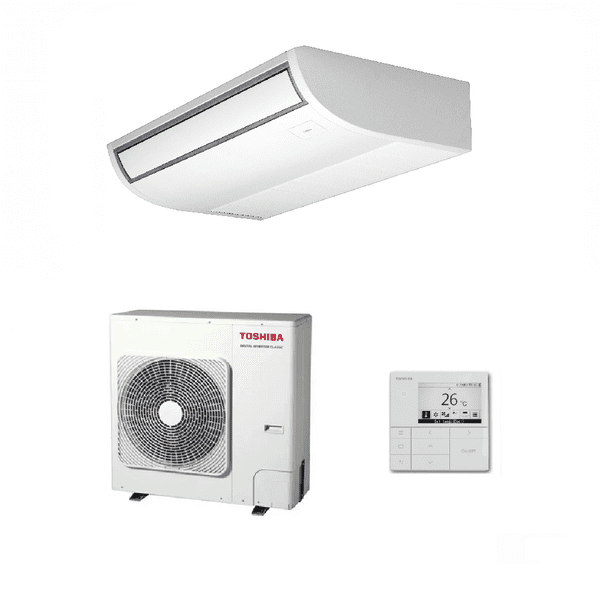

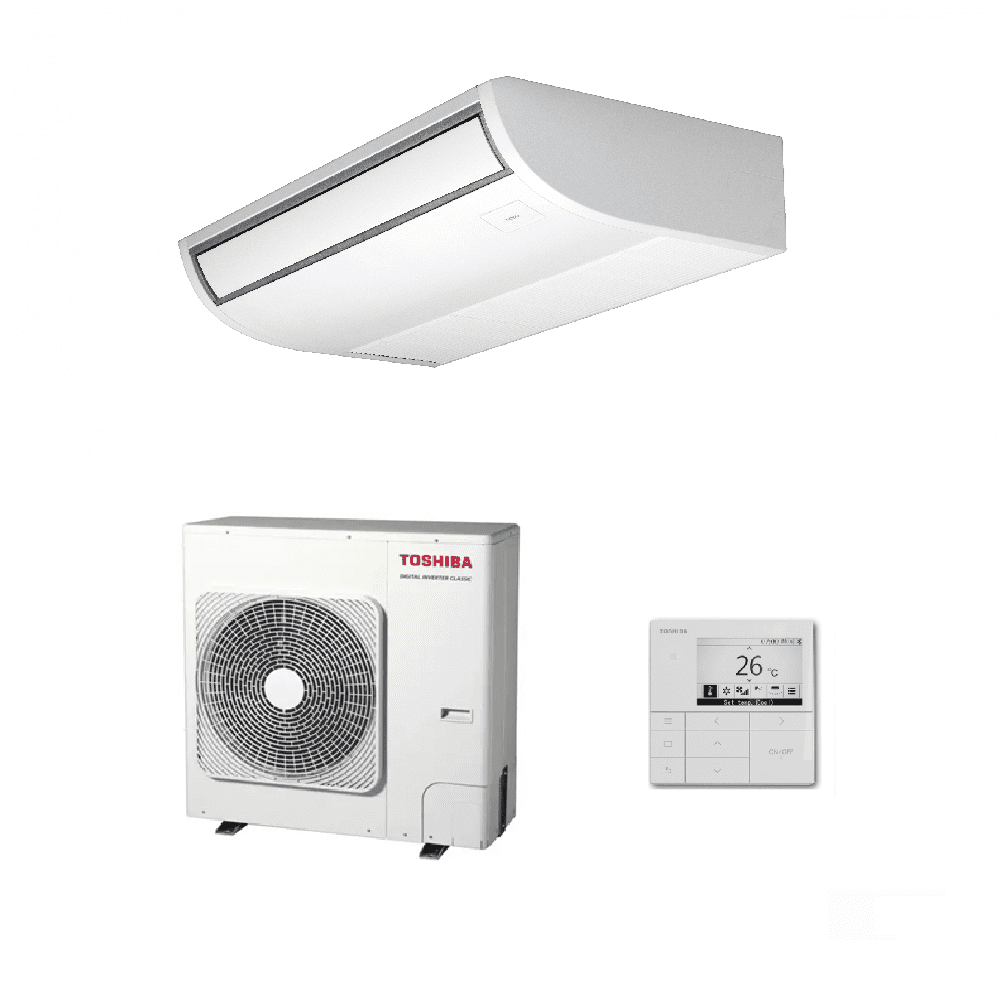

This Kit Includes:

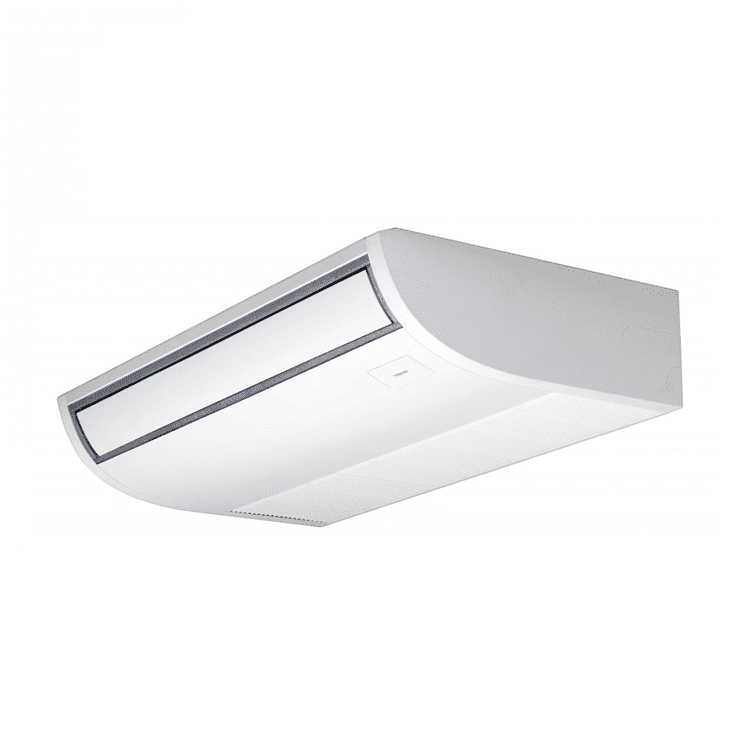

1 × Toshiba Ceiling Suspended Indoor Unit RAV-HM1101CTP-E
9.5kW Cooling / 11.2kW Heating | A+ / A++ Efficiency | 220-240V~50Hz

1 × Toshiba Digital Inverter Outdoor Unit RAV-GM1101AT8P-E (3-Phase)
9.5kW Cooling / 11.2kW Heating | Heavy-Duty 380-415V~50Hz Operation

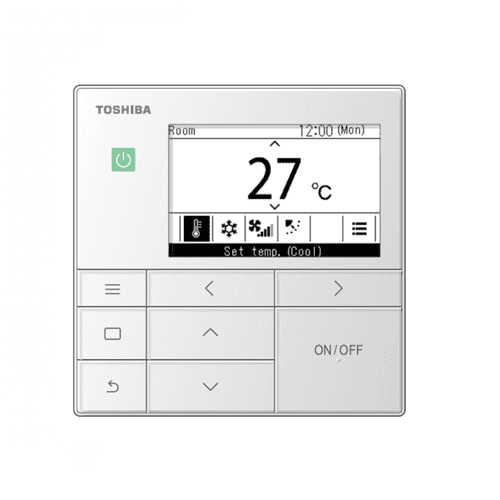

1 × Toshiba RBC-AMSU52-E Wired Controller

High-Power 3-Phase 9.5kW Ceiling Suspended System for Demanding Commercial Environments

This upgraded 3-phase Toshiba ceiling-suspended system is engineered for high-load commercial spaces requiring strong airflow, efficient temperature control and long operational reliability. The RAV-HM1101CTP-E indoor unit delivers wide-throw airflow across large rooms such as open-plan offices, restaurants, classrooms, retail stores and light commercial work areas.

The 3-phase RAV-GM1101AT8P-E outdoor unit provides improved stability under continuous high-demand use, reduced electrical stress, and excellent inverter efficiency. With 9.5kW cooling and 11.2kW heating output, this combination is suited to larger spaces or more intensive operating schedules.

Low noise operation, a slimline under-ceiling design, and precise inverter modulation make this a professional-grade solution where comfort, reliability and energy efficiency are essential. The included wired controller ensures easy operation for commercial users.

Key Product Features:

• 9.5kW cooling / 11.2kW heating capacity
• 3-phase outdoor unit for enhanced stability and reliability
• Ceiling-suspended indoor unit ideal for large open commercial spaces
• Wide-angle airflow with powerful distribution
• Low indoor noise: 44 / 38 / 32 dB(A)
• Outdoor airflow up to 4080 m³/h
• Seasonal efficiency A+ (cooling) / A++ (heating)
• R32 refrigerant for reduced environmental impact
• Robust Digital Inverter compressor for heavy commercial use
• Wired controller included (RBC-AMSU52-E)
• Slimline design for installations without ceiling voids
• Ideal for offices, restaurants, education, retail and commercial buildings

Technical Specifications:

Indoor Unit: RAV-HM1101CTP-E

Outdoor Unit: RAV-GM1101AT8P-E (3-Phase)

Cooling Capacity: 9.5 kW

Heating Capacity: 11.2 kW

UK Cooling (Total/Sensible): 9.10 / 7.18 kW

UK Heating: 9.30 kW

SEER / SCOP / Energy Label: 5.86 / 4.27 – A+ / A++

Indoor Dimensions (H × W × D): 235 × 1586 × 690 mm

Outdoor Dimensions (H × W × D): 890 × 900 × 320 mm

Indoor Airflow (H-M-L): 517 / 375 / 283 l/s

Outdoor Airflow (High): 4080 – 1133 m³/h

Sound Pressure (Indoor H-M-L): 44 / 38 / 32 dB(A)

Outdoor Sound Pressure: 54 / 57 dB(A)

Suggested Power & Fuse Rating: 380/415-3-50 & 10 A

Interconnecting Cable: 3C+E

Flare Connections (Gas-Liquid): 5/8″ – 3/8″

Min/Max Pipe Length: 5 / 50 m

Max Height Difference: 30 m

Charge-Free Pipe Length: 20 m

Refrigerant & Charge: R32 / 2.1 kg / 35 g/m

Options:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
