In Duct In line Centrifugal Fan

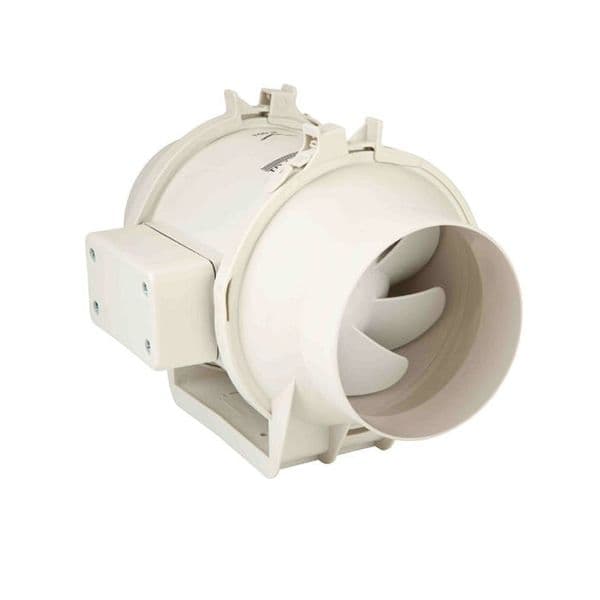

S&P Plastic Duct Centrifugal Fan With Mounting Plate And Removable Motor 150mm 561M3/Hr 240V~50Hz

S&P Plastic Duct Centrifugal Fan With Mounting Plate And Removable Motor 150mm 561M3/Hr 240V~50Hz

£186.30 £155.25 (ex. VAT)
Stock Status: In Stock

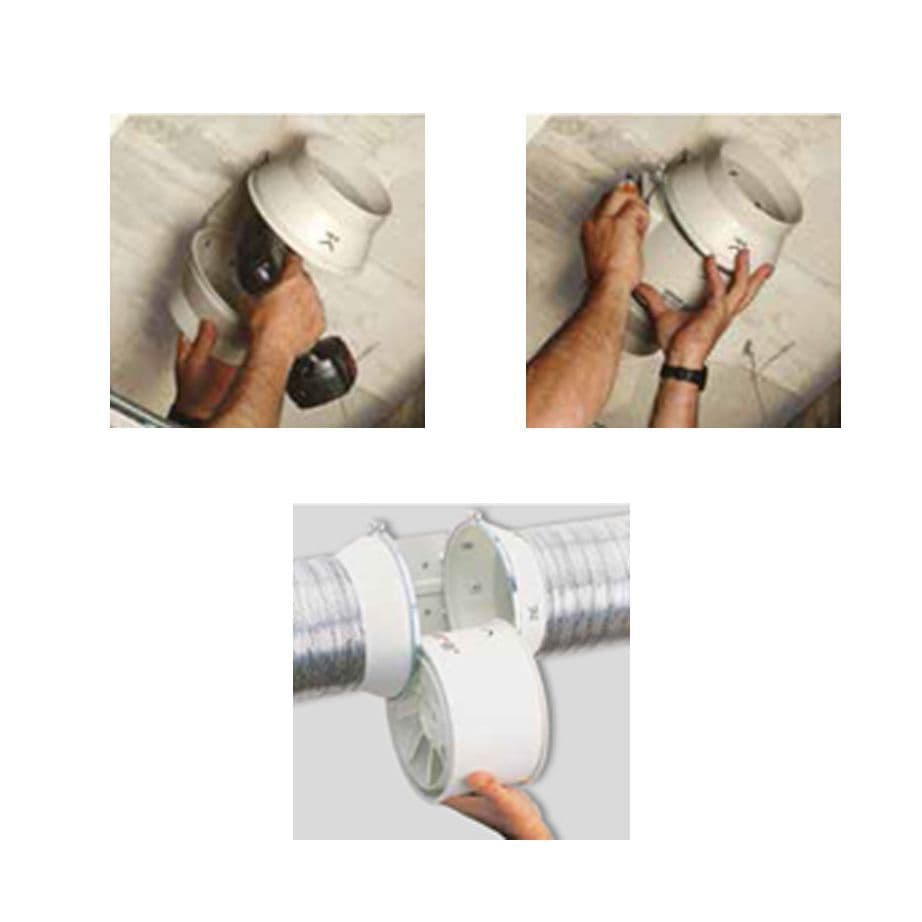

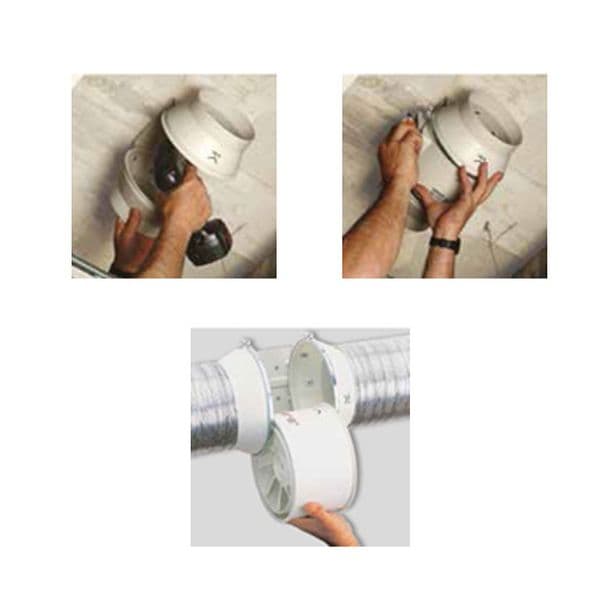

This Fan is a low profile in-line mixed flow duct fans manufactured in tough reinforced plastic. The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting. The motor is rated to Class B, with ball bearings and safety thermal overload protection. IP44.  Direct 2-speed  suitable for voltage speed control.  Electrical supply: Single phase 230V-50Hz 53W / 0.21A.



Specification:


  • Impact resistant polymer with inlet & outlet spigots
  • Motor with ‘sealed for life’ bearings
  • Speed controllable
  • Maximum Absorbed Power:  53W
  • Maximum Absorbed Current: 0.21A

Technical Data:



Volume air flow m3/sec against static pressure pa.

0

0.156

50

0.143

100

0.127

150

0.104

200

0.035
