In Duct In line Centrifugal Fan

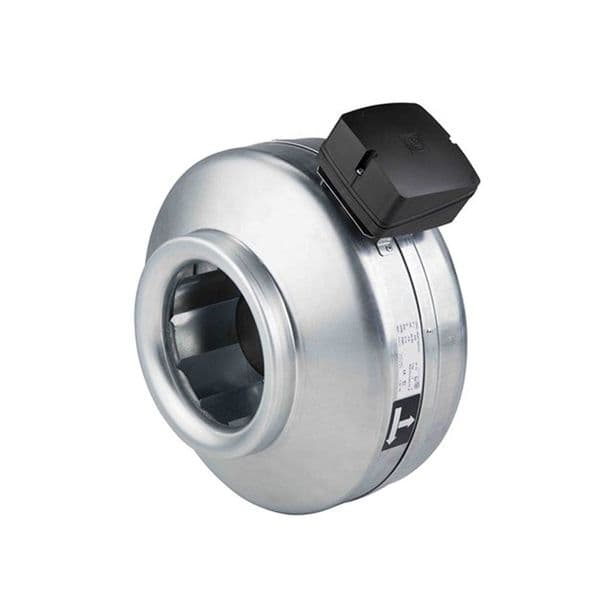

S&P Metal Duct Centrifugal Fan With Mounting Plate 150mm 720M3/Hr 240V~50Hz

S&P Metal Duct Centrifugal Fan With Mounting Plate 150mm 720M3/Hr 240V~50Hz

£131.22 £109.35 (ex. VAT)
Stock Status: In Stock

This high grade metal in-line metal centrifugal duct fan is designed around an efficient backward curved centrifugal impeller and external rotor motor, to ensure a compact design and high performance. The in-line fan has an aerodynamically designed airflow guide vane, ensuring maximum performance from the unit.

All models are easy to install and come complete with mounting feet for horizontal or vertical mounting. The range provides performance with a maximum pressure development of up to 300 Pa. the motors are single phase 220-240V/50Hz with an IP54 terminal box supplied with a 20mm entry located in the terminal box.


Specification:



  • Motor Insulation Class B, protected to IP44
  • IP54 Terminal box
  • Operating Temperatures from -30°C up to +40°C
  • Suitable for speed control using electronic or Voltage controller
  • Quality Assurance to BS EN ISO 9001:1994
  • Performance tested to BS848 Part 1 & 2
  • 1 Year Warranty
  • Db data n/a


Technical Data:




Volume air flow m3/sec against static pressure pa.

0

0.208

50

0.191

100

0.173

150

0.152

200

0.130

250

0.109

300

0.088

400

0.052
