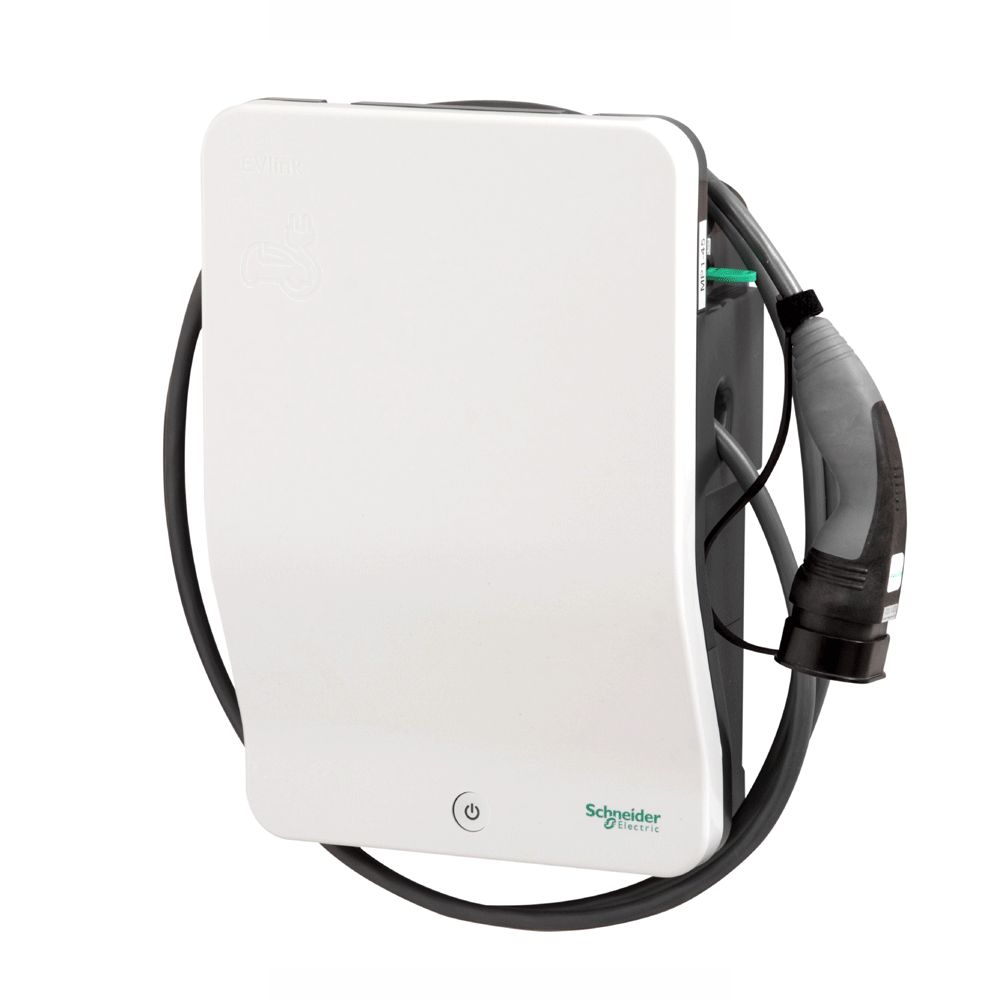

Schneider EVH2S3P02K EVlink 2 Electric Vehicle Charger with Attached Cable & Plug 3.7kW 240V~50/60Hz. EVLINK WALLBOX CHARGING STATIONS FOR HOME OR PRIVATE PROPERTIES (INDOORS OR OUTDOORS)
EVlink Wall box with type 2 outlet/plug. Schneider EVlink charging solutions for electric vehicles at home and in private or semi- public car parks. Charging stations are specially designed to withstand several hours of use on a daily basis in a tough environment. Powered by a dedicated branch circuit in your electrical switchboard that has been checked by a qualified electrician, EVlink Wallbox can operate with enhanced reliability and without disrupting the rest of your electrical system. Unlike domestic socket outlets, EVlink Wallbox is designed to deliver a high charging current for long periods of use on a daily basis. EVlink Wallbox complies with full electric and plug-in hybrid vehicle charging standards.
Up to 10 times faster:
Depending on your electric vehicle and your EVlink Wallbox charging power, you can charge up to 10 times faster than a domestic socket outlet.
Simply plug in and charge:
When the light on the front of your wallbox starts blinking, you know your charge has started.
Key Features:
•Outdoor or Indoor installation
•Wall-mounted or floor standing*
•Power Range: 3.7 kW with permanent de-rating option
•Socket outlet (T2) attached cable (T2)
•Keylock to limit socket outlet access and/or limit access while charging
Technical Specification;
| range |
EVlink
|
| product name |
EVlink Wallbox
|
| product or component type |
Charging station
|
| device short name |
EVH2
|
| poles description |
1P + N
|
| mounting mode |
Wall-mounted
|
| offer type |
Standard
|
| Max power |
3.7 kW 16 A
|
| Number of charge point |
1
|
| Connection to the vehicle |
Socket-outlet T2
|
| access control system |
Key
|
Complementary
| rated supply voltage |
220...240 V AC 50/60 Hz
|
| number of inputs |
1
|
| input type |
Contact for power limitation
Contact for delayed charging
|
| control type |
1 white button, function: stop/restart
Green button, function: cable unlocking
|
| local signalling |
1 multi-colour LED, function: status indication
|
| height |
480 mm
|
| width |
331.5 mm
|
| depth |
170 mm
|
| net weight |
5.6 kg
|
| colour |
White (RAL 9003)
Grey (RAL 7016)
|
| standards |
IEC 61851-22
IEC 62196-2
IEC 61851-1
IEC 62196-1
|
| product certifications |
CE
CB
|
Environment
| IP degree of protection |
IP54 conforming to IEC 60529
|
| IK degree of protection |
IK10 conforming to IEC 62262
|
| ambient air temperature for operation |
-30…50 °C
|
| ambient air temperature for storage |
-40…80 °C
|
| relative humidity |
5…95 %
|
| Unit Type of Package 1 |
PCE
|
| Number of Units in Package 1 |
1
|
| Package 1 Weight |
8.106 kg
|
| Package 1 Height |
25.5 cm
|
| Package 1 width |
40 cm
|
| Package 1 Length |
53 cm
|
| Unit Type of Package 2 |
P06
|
| Number of Units in Package 2 |
4
|
| Package 2 Weight |
40.924 kg
|
| Package 2 Height |
80 cm
|
| Package 2 width |
80 cm
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
| REACh Regulation |
REACh Declaration
|
| EU RoHS Directive |
CompliantEU RoHS Declaration
|
| Mercury free |
Yes
|
| RoHS exemption information |
Yes
|
| China RoHS Regulation |
China RoHS declaration: Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure |
Product Environmental Profile
|
| Circularity Profile |
End of Life Information
|
