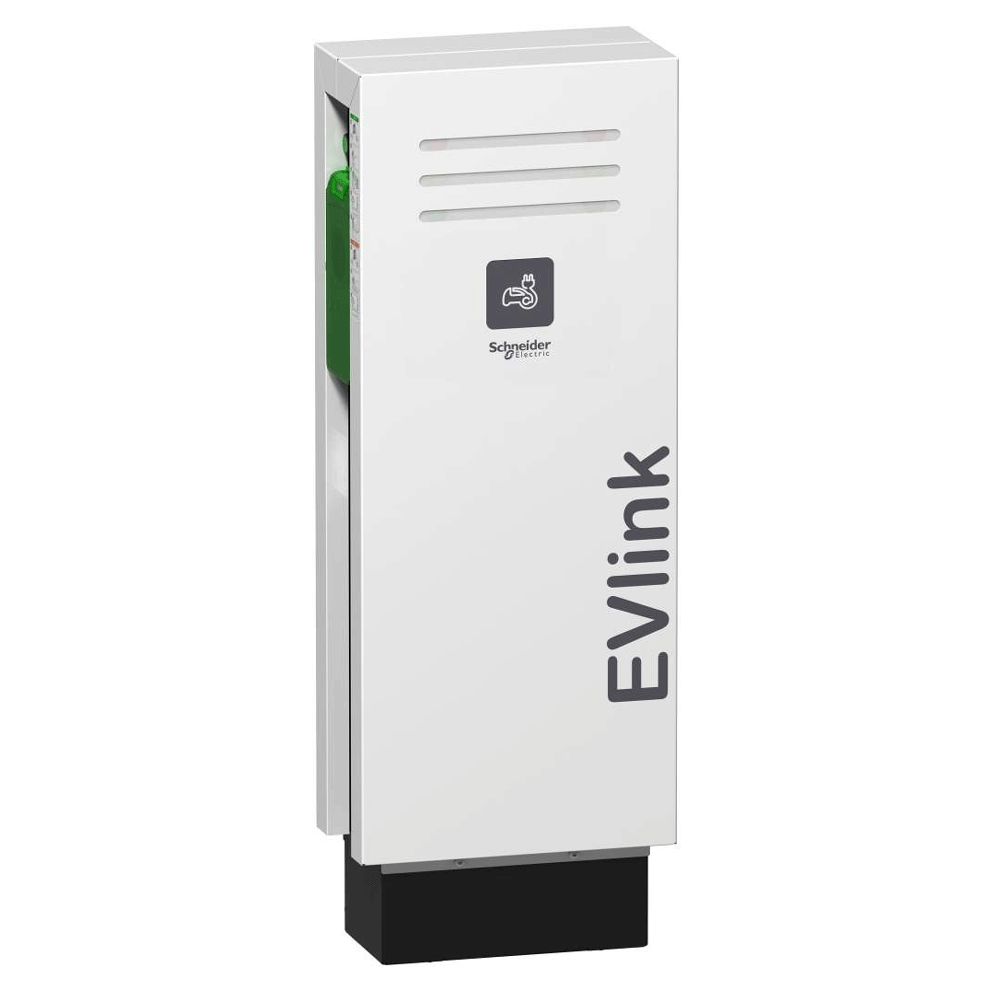

EVLINK PARKING
Schneider Electric’s robust EV link Parking line of VE Chargers use silver plated contacts to avoid overheating of Socket outlet (Type 2 or Type 2 with shutters) This charger can be used multiple configurations: user identification, one or two sockets outlets, floor-standing or wall-mounted.
Key features
•Outdoor or Indoor installation
•Wall-mounted or floor standing
•Power Range: 7.4 kW to 22.1 kW with permanent derating option
•1 or 2 socket outlet (T2/T2S) + domestic socket option (TE)
•Free access or RFID badge/Smart Phone authentication
•Energy metering capacity with automatic load balancing
•Optional communication module (GPRS) or Ethernet to connect to a Supervision (EVlink Insights) or 3rd Party
Technical Specification
Main
Range- EVlink
Product name- EVlink parking
Product or component type- Charging station
Device short name- EVF2
Poles description- 1P + N for control circuit/ 1P + N for power circuit
Mounting mode- Floor-standing
Offer type- Standard
[Us] rated supply voltage- 230 V AC 50/60 Hz power circuit/ 220...240 V AC 50/60 Hz control circuit
Earthing system- TT/ IT/ TN
Socket outlet type- 2 x T2
Socket number- 2
Socket outlet type- Right side : T2 / silver plated contacts/ Left side : T2 / silver plated contacts
supply current- 32 A for T2
Nominal output power- 7 kW for T2
Access control system- Badge RFID conforming to ISO/IEC 15693/ Badge RFID conforming to ISO/IEC 14443
Complementary
Control type- 2 red push-button function : stop/ 2 green illuminated push-button function : start/unlock flap
Local signalling- 2 red LED on front device function: not operational/ 2 green LED on front device function: available/ 2 green LED flashing on side device function: on charge/ 2 orange LED on front device function: reserved
Communication port protocol- OCPP 1.5
Operating mode- Clustured architecture/ Standalone
Functions available- User privilege configuration/ Postponed charge/ Charge detail records/ Circuit breaker status/ Diagnosis capabilities/ Load management
Web server- Embedded
Ethernet service- Configuration via web server
Standards- IEC 61851-22/ IEC 61851-1
Product certifications- CB/ EV Ready/ CE/ ZE Ready
Height- 1146 mm
Width- 413 mm
Depth- 220 mm
Product weight- 50 kg
Colour- Grey RAL 7016 on side device/ White RAL 9003 on front device
