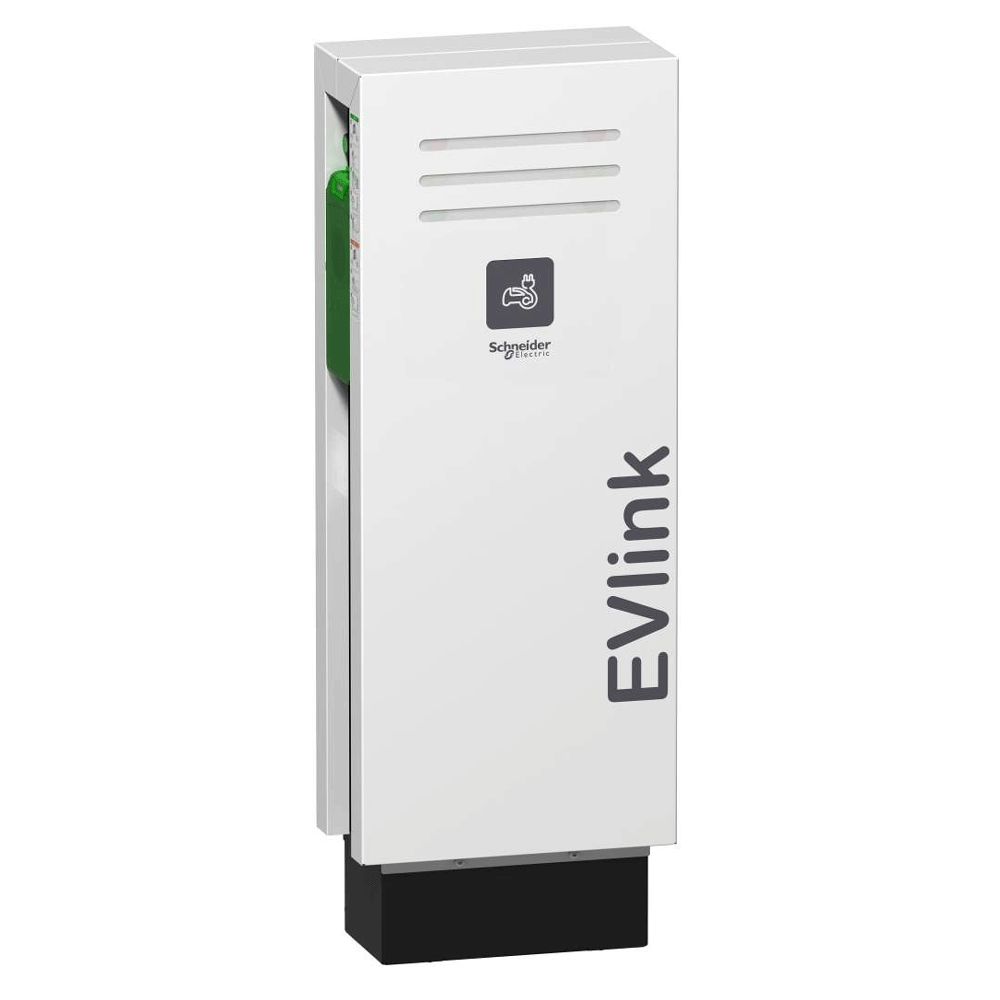

EVLINK PARKING
Schneider Electric’s robust EV link Parking line of VE Chargers use silver plated contacts to avoid overheating of Socket outlet (Type 2 or Type 2 with shutters) This charger can be used multiple configurations: user identification, one or two sockets outlets, floor-standing or wall-mounted.
Key features
•Outdoor or Indoor installation
•Wall-mounted or floor standing
•Power Range: 7.4 kW to 22.1 kW with permanent derating option
•1 or 2 socket outlet (T2/T2S) + domestic socket option (TE)
•Free access or RFID badge/Smart Phone authentication
•Energy metering capacity with automatic load balancing
•Optional communication module (GPRS) or Ethernet to connect to a Supervision (EVlink Insights) or 3rd Party
Technical Specification
Main
Range- EVlink
product name- EVlink parking
product or component type- Charging station
device short name- EVF2
poles description- 1P + N for control circuit/ 1P + N for power circuit
mounting mode- Floor-standing
offer type- Standard
[Us] rated supply voltage- 230 V AC 50/60 Hz power circuit/ 220...240 V AC 50/60 Hz control circuit
earthing system- IT/ TT/ TN
socket outlet type- 2 x T2
socket number- 2
socket-outlet type- Right side : T2 / silver plated contacts/ Left side : T2 / silver plated contacts
supply current- 32 A for T2
nominal output power- 7 kW for T2
Complementary
control type- 2 red push-button function : stop / 2 green illuminated push-button function : start/unlock flap
local signalling- 2 green LED on front device function: available/ 2 green LED flashing on side device function: on charge/ 2 orange LED on front device function: reserved/ 2 red LED on front device function: not operational
communication port protocol- OCPP 1.5
operating mode- Clustured architecture/ Standalone
function available- User privilege configuration/ Diagnosis capabilities/ Postponed charge/ Load management/ Circuit breaker status/ Charge detail records
web server- Embedded
Ethernet service- Configuration via web server
Standards- IEC 61851-1/ IEC 61851-22
product certifications- CE/ EV Ready/ CB/ ZE Ready
height- 1146 mm
width- 413 mm
depth- 220 mm
product weight- 50 kg
colour- Grey RAL 7016 on side device/ White RAL 9003 on front device
