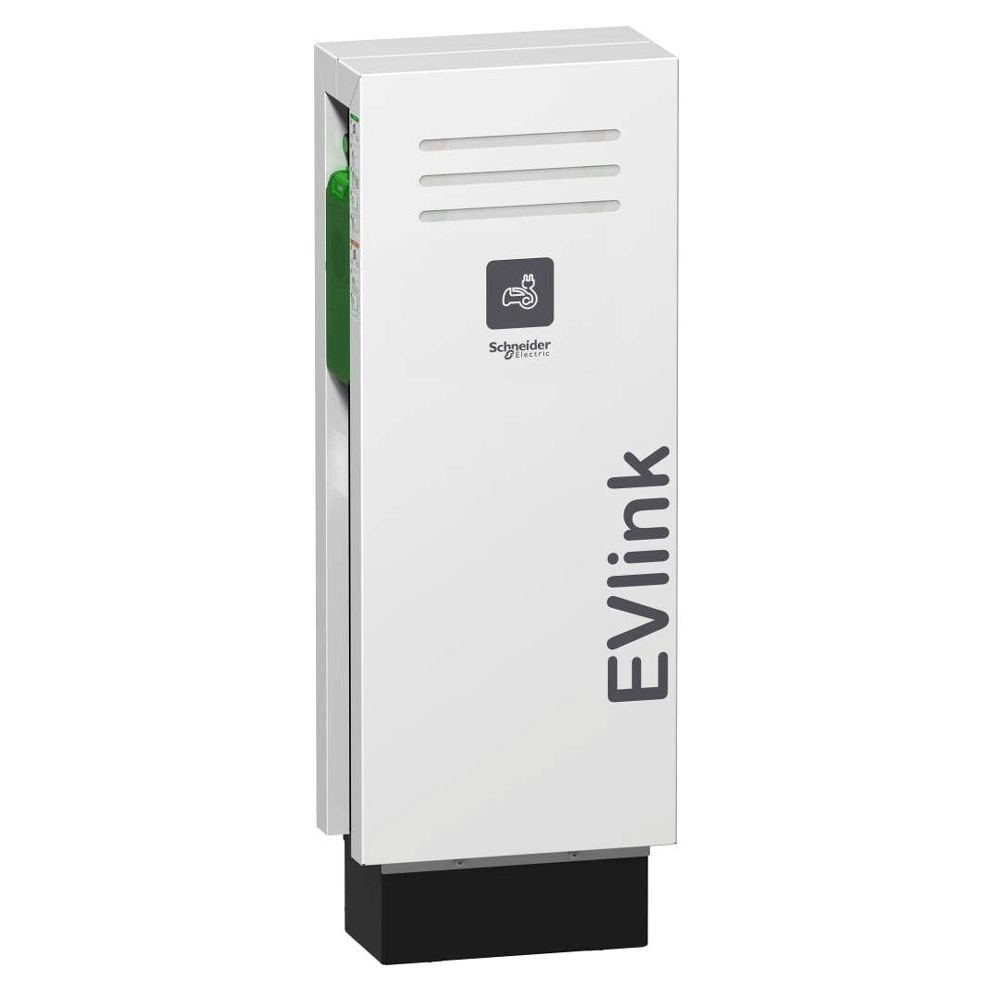

Schneider Electric "EVlink Parking" Floor Standing Electric Vehicle Charging Station 1x T2 RFID EV 7kW 240V~50Hz

Schneider Electric "EVlink Parking" Floor Standing Electric Vehicle Charging Station 1x T2 RFID EV 7kW 240V~50Hz

£2,735.12 £2,279.27 (ex. VAT)
Stock Status: In Stock

EVLINK PARKING

Schneider Electric’s robust EV link Parking line of VE Chargers use silver plated contacts to avoid overheating of Socket outlet (Type 2 or Type 2 with shutters) This charger can be used multiple configurations: user identification, one or two sockets outlets, floor-standing or wall-mounted.


Key features


​​​​•Outdoor or Indoor installation
•Wall-mounted or floor standing
•Power Range: 7.4 kW to 22.1 kW with permanent derating option
•1 or 2 socket outlet (T2/T2S) + domestic socket option (TE)
•Free access or RFID badge/Smart Phone authentication
•Energy metering capacity with automatic load balancing
•Optional communication module (GPRS) or Ethernet to connect to a Supervision (EVlink Insights) or 3rd Party



Technical Specification

Main

Range- EVlink

Product name- EVlink parking

Product or component type- Charging station

Device short name- EVF2

Poles description- 1P + N for control circuit/ 1P + N for power circuit

Mounting mode- Floor-standing

offer type- Standard

[Us] rated supply voltage 230 V AC 50/60 Hz power circuit/ 220...240 V AC 50/60 Hz control circuit

earthing system- TT/ IT/ TN

Socket outlet- type T2

Socket number- 1

Socket-outlet type- Right side : T2 / silver plated contacts

Supply current- 32 A for T2

Nominal output power- 7 kW for T2

access control system- Badge RFID conforming to ISO/IEC 14443/ Badge RFID conforming to ISO/IEC 15693

Complementary

Control type- 1 red push-button function : stop/ 1 green illuminated push-button function : start/unlock flap

Local signalling- 1 orange LED on front device function: reserved/ 1 green LED on front device function: available/ 1 red LED on front device function: not operational/ 1 green LED flashing on side device function: on charge

Communication port protocol- OCPP 1.5

Operating mode- Standalone/ Clustured architecture

Functions available- User privilege configuration/ Postponed charge/ Diagnosis capabilities/ Load management/ Circuit breaker status/ Charge detail records

Web server- Embedded

Ethernet service- Configuration via web server

Standards- IEC 61851-1/ IEC 61851-22

Product certifications- CE/ EV Ready/ ZE Ready/ CB

Height- 1146 mm

Width- 413 mm

Depth- 220 mm

Product weight- 50 kg

Colour- Grey RAL 7016 on side device/ White RAL 9003 on front device
