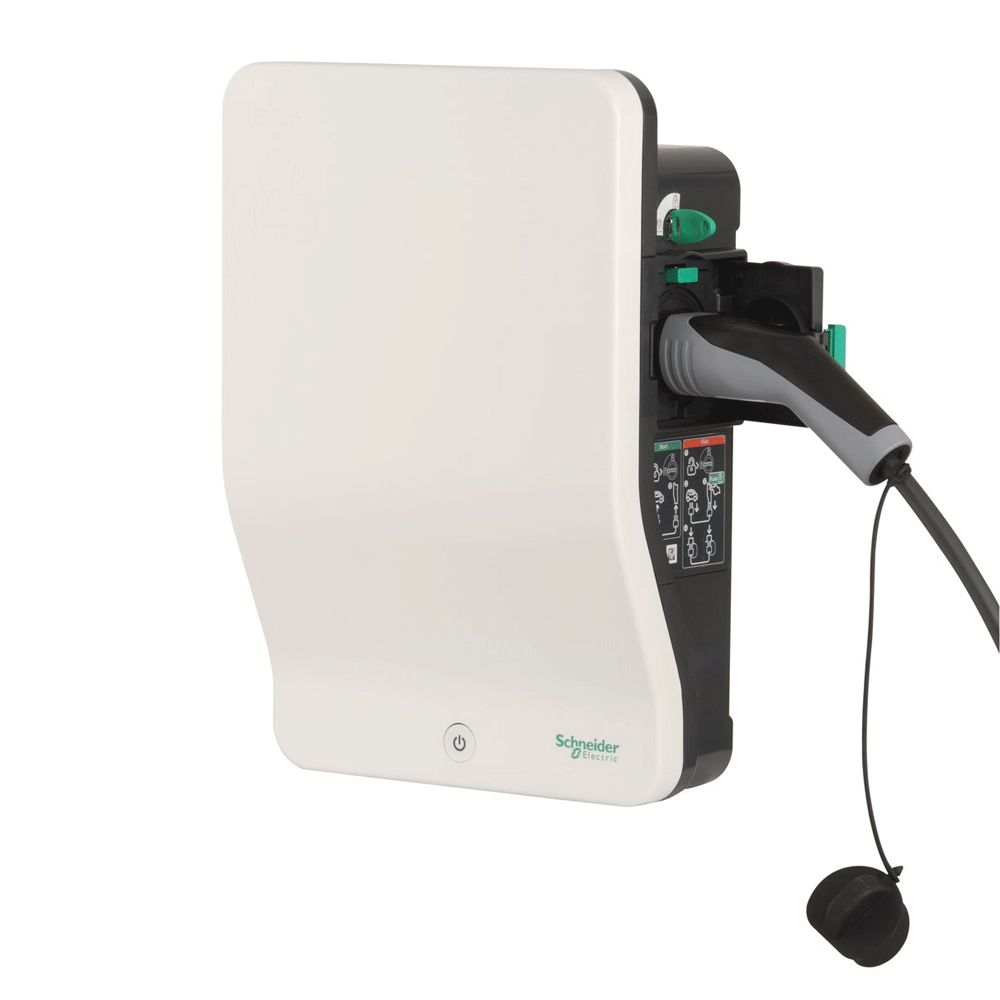

Schneider Electric "EVlink 2" Electric Vehicle Charger With Type 2S Shuttered Socket 7.4kW 240V~50Hz

Schneider Electric "EVlink 2" Electric Vehicle Charger With Type 2S Shuttered Socket 7.4kW 240V~50Hz

£685.76 £571.47 (ex. VAT)
Stock Status: In Stock



EVlink Wall box – EVlink charging solutions for electric vehicles at home and in private or semi- public car parks. Charging stations are specially designed to withstand several hours of use on a daily basis in a tough environment.

EVlink 2 - Electric Vehicle Charger 7.4kW Charger with Type 2S Shuttered Socket

Key Features

•Outdoor or Indoor installation
•Wall-mounted or floor standing*
•Power Range: 3.7 kW to 22.1 kW with permanent derating option
•Socket outlet (T2/T2S) or attached cable (T2/T1)
•Keylock to limit socket outlet access and/or limit access while charging

Technical Specification



Range-  EVlink

product name- EVlink wallbox

product or component type- Charging station

device short name- EVH2

poles description- 1P + N

mounting mode- Wall-mounted

offer type- Standard

nominal output power- 7.4 kW 32 A

socket outlet type-  Cable T2S

socket number-  1

output type- Socket-outlet T2 with shutter

access control system- Key


[Us] rated supply voltage-  220...240 V AC 50/60 Hz

earthing system- TN/TT

number of inputs- 1

input type- Contact for delayed charging, Contact for power limitation

control type- 1 white button, function: stop/restart, Green button, function: cable unlocking

local signalling- 1 multi-colour LED, function: status indication

height- 480 mm

width- 331 mm

depth- 170 mm

product weight- 5.6

colour White- RAL 9003/ Grey RAL 7016

standards- IEC 61851-22/ IEC 61851-1/ IEC 62196-1/ IEC 62196-2

product certifications-  CE/ CB
