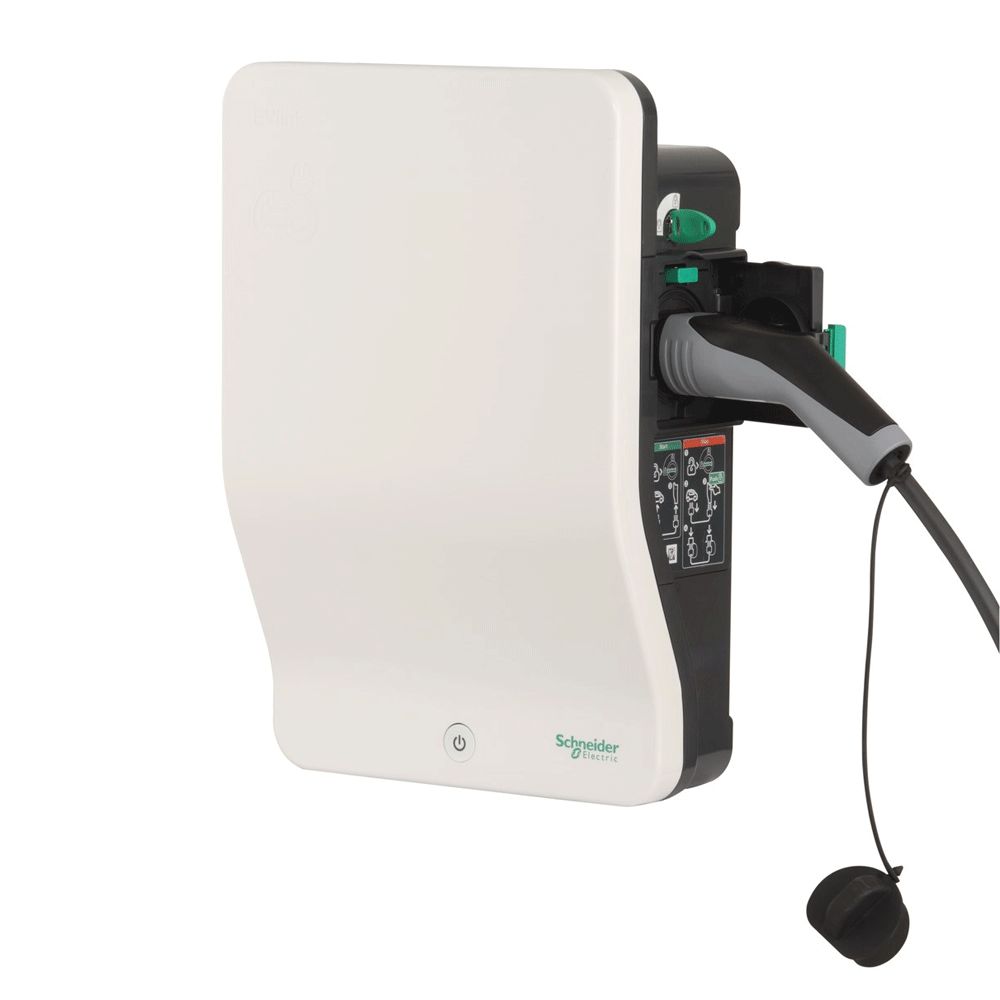

Schneider Electric "EVlink 2" Electric Vehicle Charger With Type 2S Shuttered Socket 3.7kW 240V~50Hz

Schneider Electric "EVlink 2" Electric Vehicle Charger With Type 2S Shuttered Socket 3.7kW 240V~50Hz

£685.76 £571.47 (ex. VAT)
Stock Status: Sold Out




EVlink Wallbox – EVlink charging solutions for electric vehicles at home and in private or semi- public car parks. Charging stations are specially designed to withstand several hours of use on a daily basis in a tough environment.

Allows the use of removable charge cable with either type 1 or Type 2 plug at the car end. Type 1 plug generally used by European and Japanese car manufacturers.

Key Product Features:

•Outdoor or Indoor installation
•Wall-mounted or floor standing*
•Power Range: 3.7 kW to 22.1 kW with permanent derating option
•Socket outlet (T2/T2S) or attached cable (T2/T1)
•Keylock to limit socket outlet access and/or limit access while charging

Technical Specification:

range  EVlink
product name   EVlink wallbox
product or component type Charging station
device short name EVH2
poles description 1P + N
mounting mode Wall-mounted
offer type Standard
nominal output power   3.7 kW 16 A
socket outlet type T2S
socket number  1
output type Socket-outlet T2 with shutter
access control system Key
[Us] rated supply voltage 220...240 V AC 50/60 Hz
earthing system TN
number of inputs  1
input type Contact for delayed charging.
Contact for power limitation.
control type 1 green button, function: cable unlocking 1 white button, function: stop/restart
local signalling 1 multi-colour LED, function: status indication
height 480 mm
width 331.5 mm
depth 170 mm
product weight 5.6 kg
colour Grey RAL 7016
White RAL 9003
standards IEC 62196-2
IEC 62196-1
IEC 61851-1
IEC 61851-22
product certifications CE
