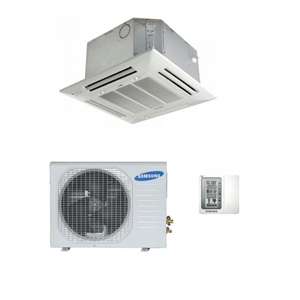

Samsung Air Conditioning Compact Ceiling Cassette ACN060NDEHA (6.0kW / 19000btu) Inverter Heat Pump
Samsung Air Conditioning and heat pump compact ceiling cassette technology, with the development of high performance 600 x 600 split systems for commercial application: offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The Advanced Compact Cassette range has now been extended to include new small capacity INVERTER systems starting at 2.6kW, and an extra high capacity system 5kW at the top end. (figures stated are for cooling/heating performance. 7-Day Programmable Timer - now included in standard controls specification. The CoP (Coefficient of Performance) has been dramatically increased, up to 3.6 on some models. This means the system can deliver 3.6 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Mitsubishi technology with R410A.
Improved air flow pattern through the unit, and the new design of high performance heat exchanger, have resulted in a pressure loss reduction for significantly lower sound levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets.
Ideal Compact Size:
Ideal Compact Size Fan Speed Adjustment the Mini 4 Way cassette air conditioner can be installed in one standard ceiling tile (600Wx600H) so construction or alterations to the ceiling are unnecessary.
Product Key Feature's:
• 7-Day 24 HR Programmable Timer
• Two on/off settings each day
• High C.O.P
• ECA - Yes
• Wall Controller - hard wired
• Integral temperature sensor
• Slim 285mm Construction
• Infra-red wireless controller optional
• INVERTER technology
• Low profile attractive grey/white fascia panel
• Improved anti-smudge air discharge
• Low ambient control included
• Auto re-start after power interruption
• Reduced sound levels
•Long pipe-runs up to 40 Meters
Cooling nominal (kw) – 5.8
Cooling max (kw) – 6.5
Heat max (kw) – 7.0
Energy label (C/H) – B/C
Pipe max length / max height – 50/30
Pipe sizes – ¼” and 5/8"
Noise (dB) 33/41
Supply to – outdoor
Run current – 16.0
Indoor dimensions (WHD) – 575x260x575mm
Indoor weight – 17kg
Outdoor dimensions (WHD) – 880x798x310mm
Outdoor weight – 57kg
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
