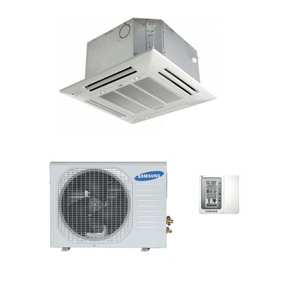

Samsung Air Conditioning Compact Ceiling Cassette ACN052NDEHA (4.7kW / 16000btu) Inverter Heat Pump ​

Samsung Air Conditioning and heat pump compact ceiling cassette technology, with the development of high performance 600 x 600 split systems for commercial application: offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The Advanced Compact Cassette range has now been extended to include new small capacity INVERTER systems starting at 2.6kW, and an extra high capacity system 5kW at the top end. (figures stated are for cooling/heating performance. 7-Day Programmable Timer - now included in standard controls specification. The CoP (Coefficient of Performance) has been dramatically increased, up to 3.6 on some models. This means the system can deliver 3.6 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Mitsubishi technology with R410A.

Cassette Design:

Improved air flow pattern through the unit, and the new design of high performance heat exchanger, have resulted in a pressure loss reduction for significantly lower sound levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets.

Ideal Compact Size:

Ideal Compact Size Fan Speed Adjustment the Mini 4 Way cassette air conditioner can be installed in one standard ceiling tile (600Wx600H) so construction or alterations to the ceiling are unnecessary.


Key Features:


• 7-Day 24 HR Programmable Timer
• Two on/off settings each day
• High C.O.P
• ECA - Yes
• Wall Controller - hard wired
• Integral temperature sensor
• Slim 285mm Construction
• Infra-red wireless controller optional
• INVERTER technology
• Low profile attractive grey/white fascia panel
• Improved anti-smudge air discharge
• Low ambient control included
• Auto re-start after power interruption
• Reduced sound levels
•Long pipe-runs up to 40 Meters


Technical Specification:
