Samsung Air Conditioning Wall Mounted Luzon Standard Inverter Heat Pump R32 A++

Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit

  • Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit
  • Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit
  • Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit
  • Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit
  • Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit

Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 Install Kit

£1,504.38 £1,253.65 (ex. VAT)
Stock Status: In Stock
Blog

Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted 5Kw/18000Btu R32 A++ 240V~50Hz

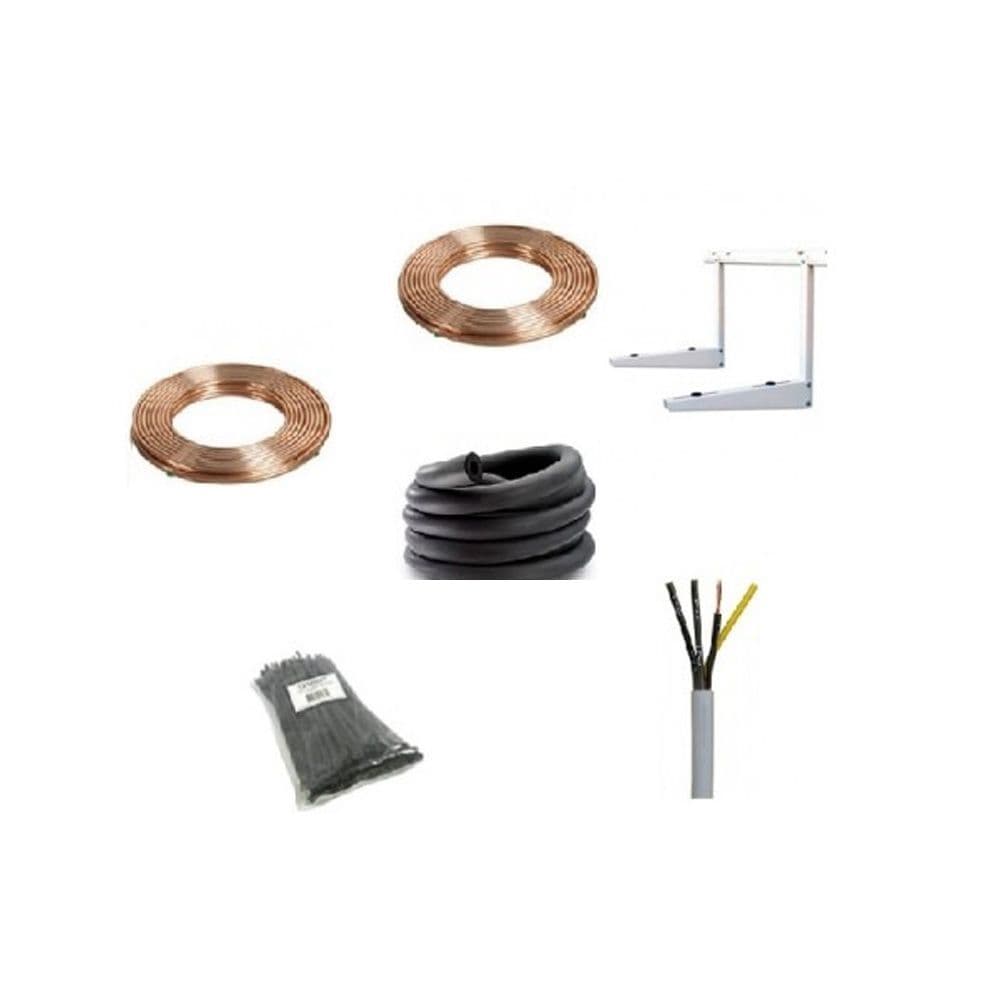

Includes:

1 x Samsung Air Conditioning AR18TXHZAWKNEU Luzon Standard Wall Mounted Inverter Heat Pump 5Kw/18000Btu R32 A++

1 x Samsung Air Conditioning AR18TXHZAWKXEU Luzon Standard Outdoor Inverter Heat Pump 5Kw/18000Btu R32 A++ 220-240V~50Hz

1 x Samsung Air Conditioning Ir remote control (hard wired option available)

15 Meters of 1/4" & 1/2" Pipes

15 Meters of cable for interconnecting cable 1.5mm 4 core

15 Meters of installation for pipes

1 x Pack of cable ties

1 x 90Kg Premium Wall bracket for condensing unit

R32 Gas

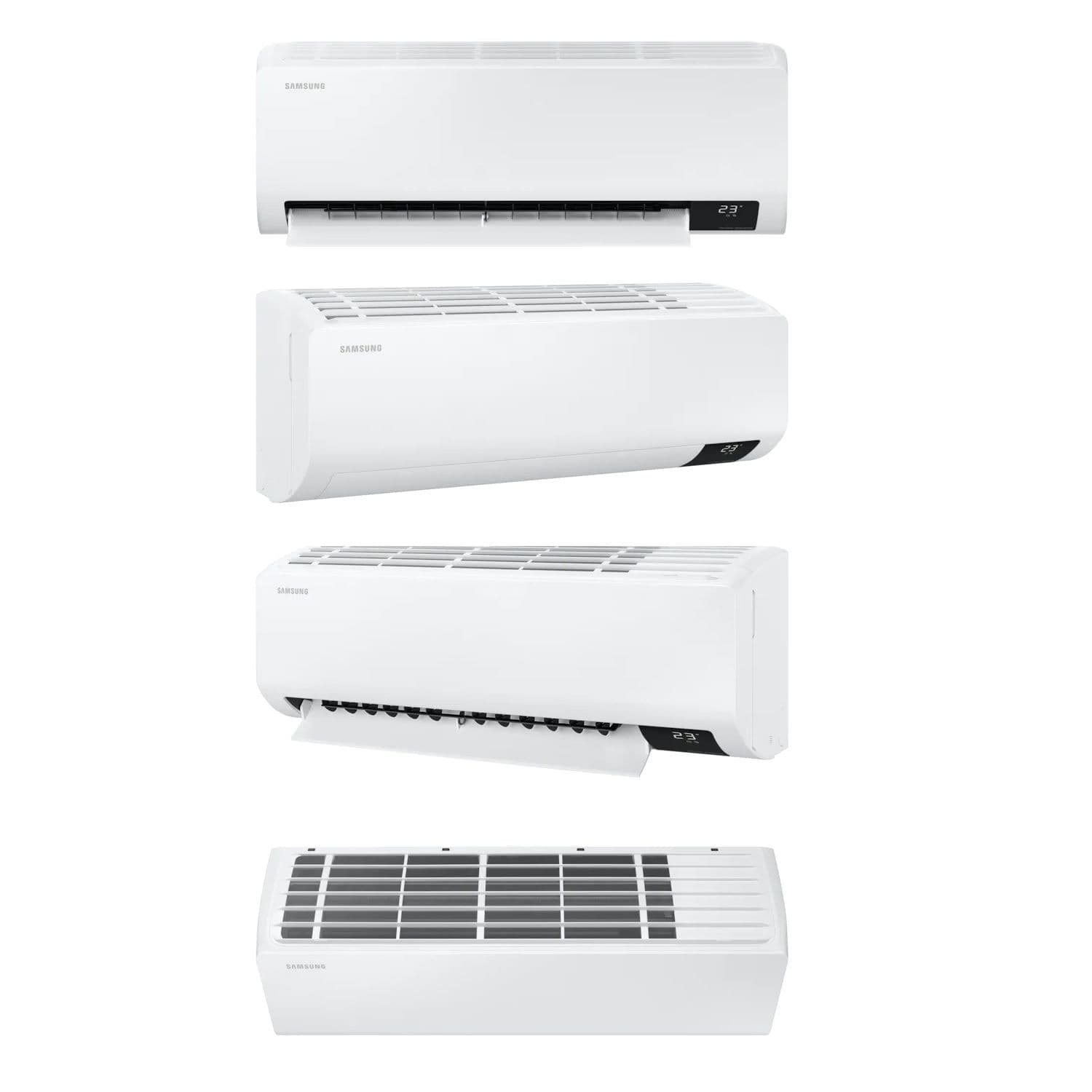

Samsung air conditioning Luzon standard inverter wall mounted unit with cooling and heat pump technology. The Luzon Standard inverter range are high performance wall mounted air conditioning system with an attractive matt-white finish that heats and cools at a high efficiency. The unit has a temperature display on the front of the unit. They offer high performance without the unwanted features that more commercial systems offer, the new lower profile flatter appearance is far more easy to keep clean and the cross flow fan is moulded from an antibacterial formula to prevent unpleasant odours.

When the air conditioner is turned off the Auto Clean function automatically runs a fan to remove dust and moisture in the heat exchanger. So it stays clean and dry, which prevents the growth of bacteria and mildew. To keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants.

Stay comfortably cool for much longer. The Ocean Fin is made of corrosion-resistant material to protect the condenser from rusting, which helps to maintain the optimal performance of the Heat Exchanger. Its superb corrosion-resistance was proven using the Salt Spray Test (SST) for 480 hours*. Good Sleep mode creates the desirable climate for a good night’s sleep. With its temperature control, it keeps you comfortable, so you fall asleep fast, sleep deeply, and wake up refreshed.. This quiet, high performance cooling and heating system, with advanced electronic controls for maximum comfort, controllable and energy efficient. Comes with three years parts warranty.

Product Key Feature's:

  • Low noise internal unit
  • Entry level system
  • Cool clean white design with hidden front grille
  • High performance and efficiency, CoP up to 3.6
  • Auto-changeover heat/cool
  • Silent operation: 22dBA
  • Silver nano coated filter
  • Silver nano coated heat exchanger
  • Deodorizing filter
  • Remote control (infra-red) included as standard


Technical Data's:







Indoor/Outdoor Unit Ref: AR18TXHZAWKNEU AR18TXHZAWKXEU

Capacity:

Capacity (Cooling, Btu/hr) 18000 Btu/hr

Capacity (Heating, Btu/hr) 18000 Btu/hr

Capacity (Cooling, Min - Max, Btu/hr) 5440 ~ 22780 Btu/hr

Capacity (Heating, Min - Max, Btu/hr) 4420 ~ 27200 Btu/hr

Capacity (Cooling, kW) 5 kW

Capacity (Heating, kW) 5 kW

Capacity (Cooling, Min - Max, kW) 1.6 ~ 6.7kW

Capacity (Heating, Min - Max, kW) 1.3 ~ 8 kW

AR18TXHZAWKXEU

Capacity (Cooling, kW) :5.0

Capacity (Heating, kW) : 6.0

Cooling (Nom.) kW : 5.00

Cooling (range) kW: 1.6 - 6.7

Cooling (UK) kW: 4.55

Cooling (Sens. UK) kW: 3.88

SEER (EER): 6.80

Energy Grade Cooling: A++

Heating (Nom.) kW: 6.00

SCOP (COP) : 3.80

Energy Grade Heating : A

Fuse Amp : 13

Max.Run Current (A) : 11.5

Liq. pipe (") 1/4

Gas pipe (") 1/2

Max pipe Length (inc. lift) 30 (15)

Precharge weight kg (length m) 1.3 (5)

Add. Charge (gm/m) 15

Con. Pump Lift (mm) disp. (l/hr) N/A

Indoor Unit WxHxD (mm): 880x638x3101055x299x215

IDU Wgt (kg): 11.5

IDU Sound Pressure dB(A): 25

Outdoor Unit WxHxD (mm): 880x638x310

ODU Wgt (kg): 39.7

ODU Sound Pressure dB(A): 51

Air Purification:

PM 1.0 Filter: No

Tri Care Filter: No

Easy Filter Plus (Anti-Bacteria): Yes

Auto Clean (Self Cleaning): Yes

Convenience:

SmartThings: No

Motion Detect Sensor: No

Filter Cleaning Indicatior: Yes

Indoor Temp. Display: Yes

Display On/Off: Yes

Beep On/Off: Yes

24-Hour Timer: Yes

Auto Changeover: Yes

Auto Restart: Yes

Operating Mode:

Auto Mode: Yes

Fast Cool: Yes

Good Sleep: Yes

Eco Mode: Yes

Dehumidification: Yes

Fan Mode: Yes

Quiet: Yes

Smart:

WiFi Embedded: No

For hard wired option use controllers:

1 of MIM-A00N Sub PCB for wired controller interfacing

1 of MWR-WG00JN LCD Premium Colour wired controller




PDF Data:









These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
