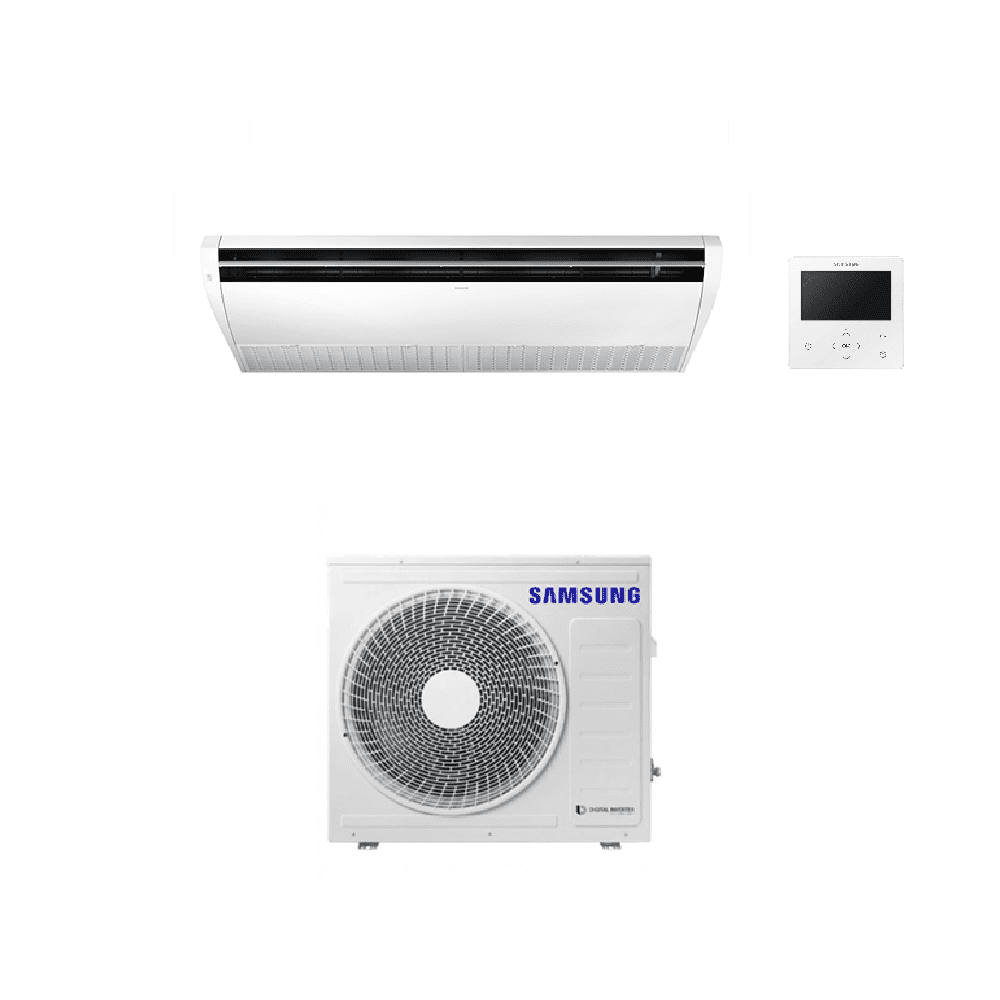

This Kit Includes:

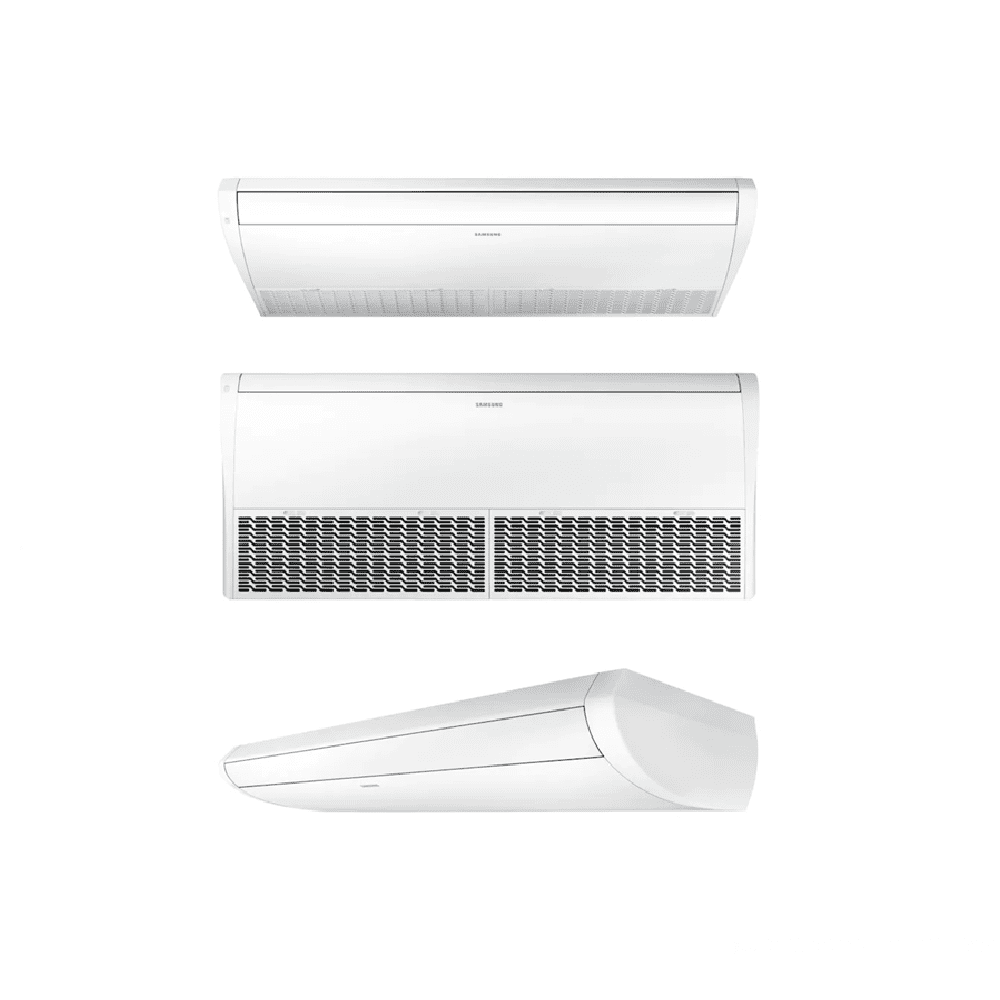

• 1 × Samsung Under Ceiling Indoor Unit AC120RNCDKG/EU
• 1 × Samsung Inverter Heat Pump Outdoor Unit AC120RXADNG/EU (3-Phase)

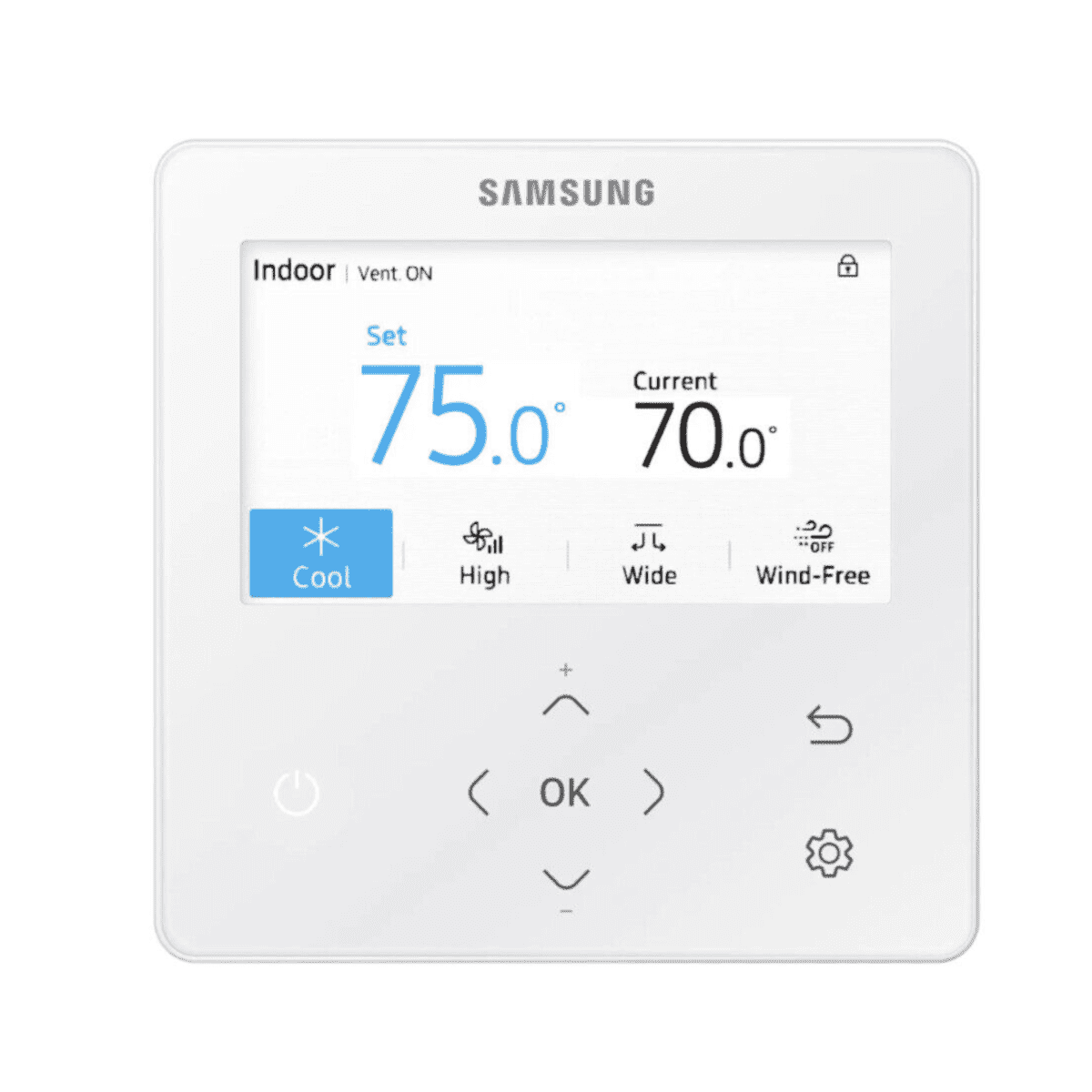

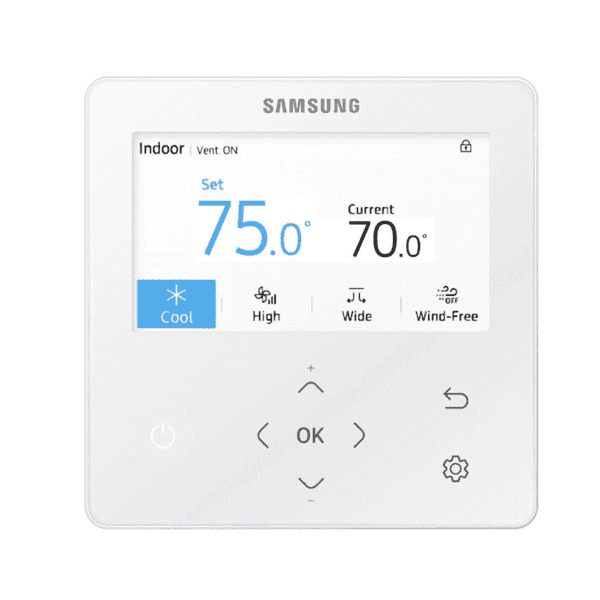

• 1 × LCD Colour Wired Controller (NASA) MWR-WG01JN
• Integrated washable HD40 permanent air filter
• Installation and user documentation
High-Capacity Under Ceiling Heat Pump for Large Commercial Spaces

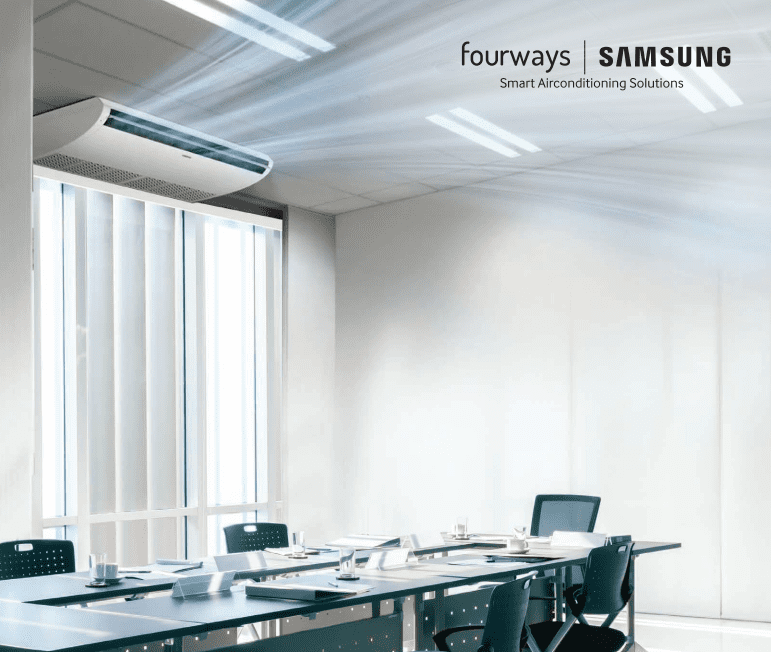

The Samsung Under Ceiling Heat Pump 12.0kW three-phase system is designed for demanding commercial applications where powerful, consistent airflow and reliable performance are essential. Ideal for buildings without suspended ceilings, the unit is mounted directly beneath the ceiling to deliver wide horizontal air distribution across large floor areas.
Featuring Samsung’s Big Ceiling Inverter design, the system uses an enlarged blade and enhanced fan assembly to project air over distances of up to 15 metres, delivering up to 70% greater throw than conventional air conditioning units. This makes it particularly suitable for high-ceiling environments such as warehouses, retail units, gyms, workshops, exhibition spaces and large open commercial interiors.
Digital Inverter technology continuously adjusts compressor output to match load demand, improving efficiency and maintaining stable indoor temperatures. The supplied wired controller allows full control of fan speed, airflow direction and operating modes, with optional access restriction to prevent unauthorised user changes and support effective energy management. Using R32 refrigerant, the system combines strong performance with a reduced environmental impact and year-round heating and cooling capability.
Key Product Features:
• Three-phase under-ceiling commercial air conditioning system
• Designed for buildings without false ceilings
• Long-throw airflow up to 15 metres
• Enlarged blade and enhanced fan for high air volume with reduced noise
• Digital inverter compressor for efficient, stable operation
• Heat pump functionality for year-round heating and cooling
• Horizontal airflow with auto-swing function
• Wired controller with fan speed and operating mode control
• Controller lock function to restrict unauthorised adjustments
• Long-life washable HD40 air filter supplied as standard
• Optional SmartThings Wi-Fi control via interface
• Uses R32 refrigerant with lower environmental impact
Technical Specifications:
Cooling Capacity: 12.0kW (3.5–13.5kW)
Heating Capacity: 13.2kW (3.8–16.5kW)
Energy Efficiency (Cooling): A+
Energy Efficiency (Heating): A+
SEER: 5.9
SCOP: 4.0
Indoor Airflow (High / Medium / Low): approx. 500 / 400 / 333 l/s
Indoor Sound Pressure (High / Medium / Low): approx. 44 / 41 / 37 dB(A)
Outdoor Sound Pressure (Cooling / Heating): 54 / 56 dB(A)
Indoor Unit Dimensions (W × H × D): 1,650 × 235 × 675 mm
Outdoor Unit Dimensions (W × H × D): 940 × 998 × 330 mm
Refrigerant Type: R32
Pipe Connections: Liquid 3/8", Gas 5/8"
Maximum Pipe Length: 50 m
Maximum Height Difference: 30 m
Power Supply: 380-415V / 3Ph / 50Hz
Fuse Rating: 20A per phase
Optional Accessories & Controls:
• MWR-WG01JN – LCD Colour Wired Controller (NASA)
• MWR-SH11N – Touch Simplified Wired Remote Controller
• MIM-H04EN – Wi-Fi Receiver 2.0 for SmartThings Control
• MRW-TA – Remote Temperature Sensor
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
