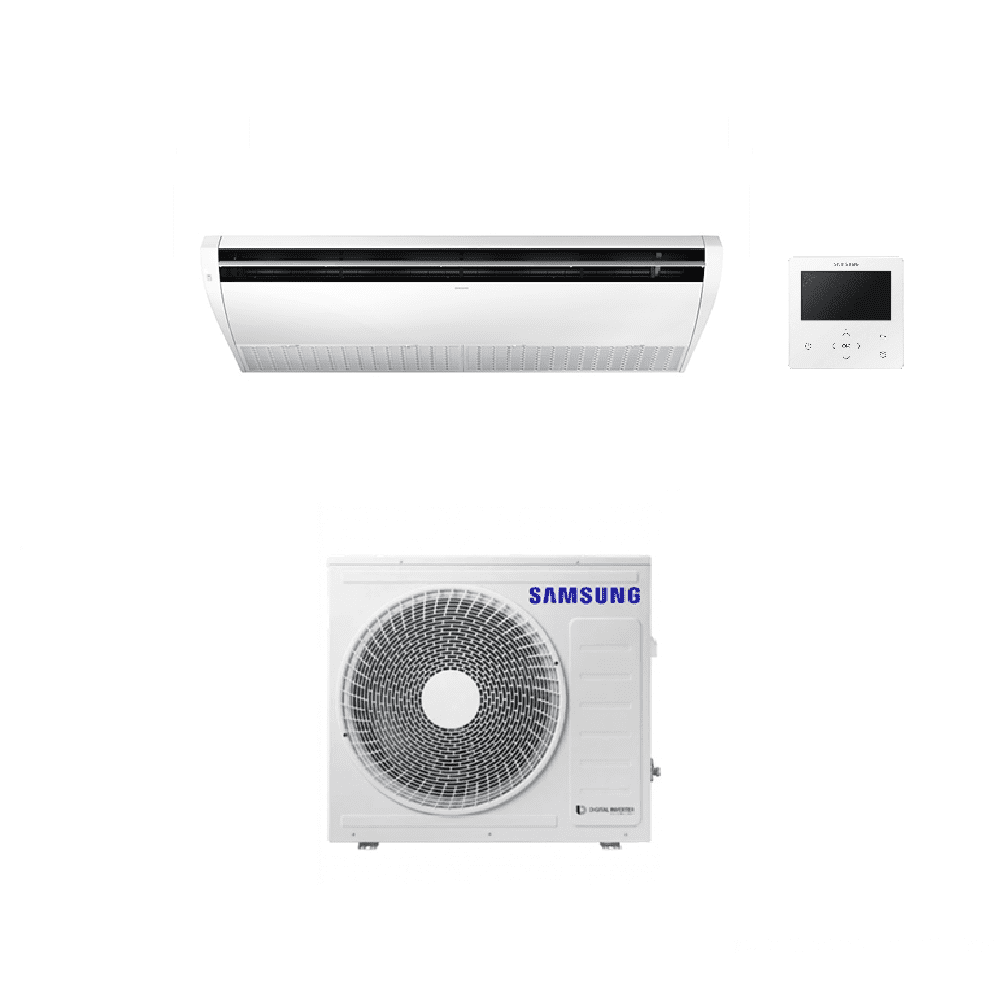

This Kit Includes:

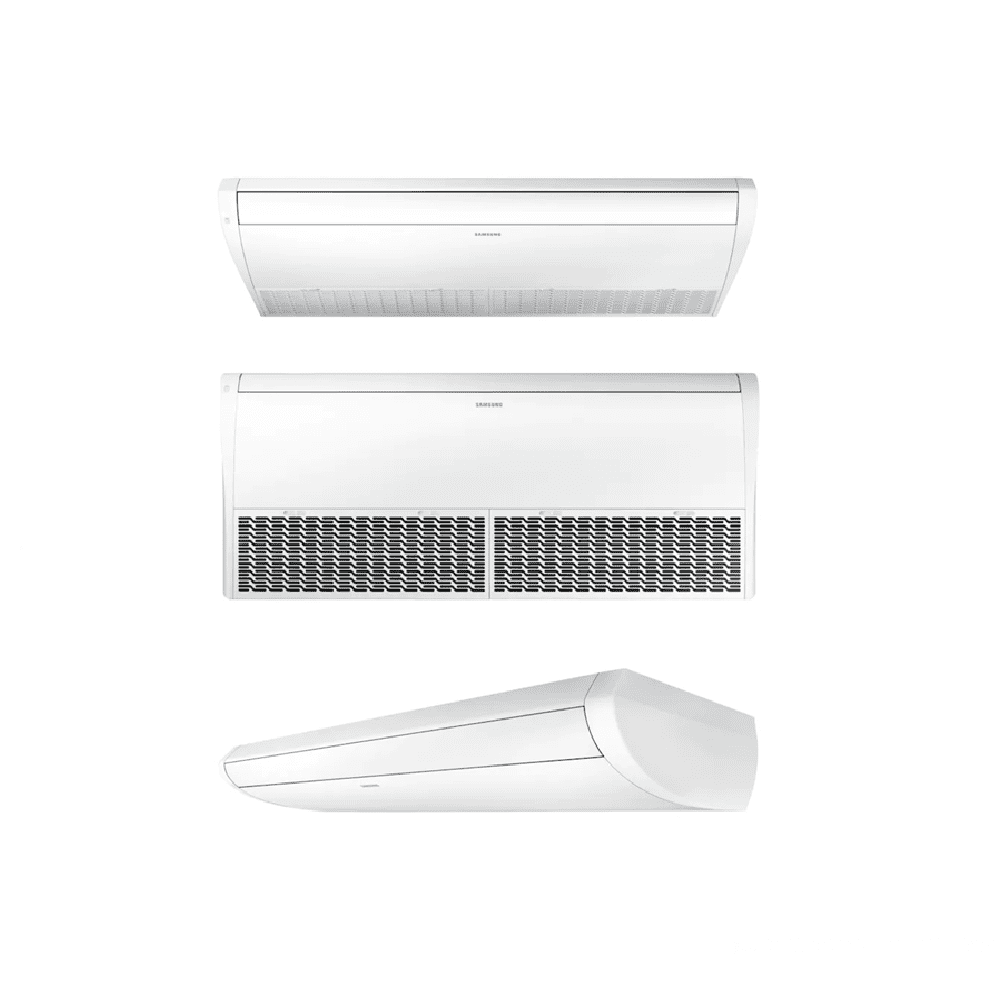

• 1 × Samsung Under Ceiling Indoor Unit AC120RNCDKG/EU
• 1 × Samsung Inverter Heat Pump Outdoor Unit AC120RXADKG/EU (Single Phase)

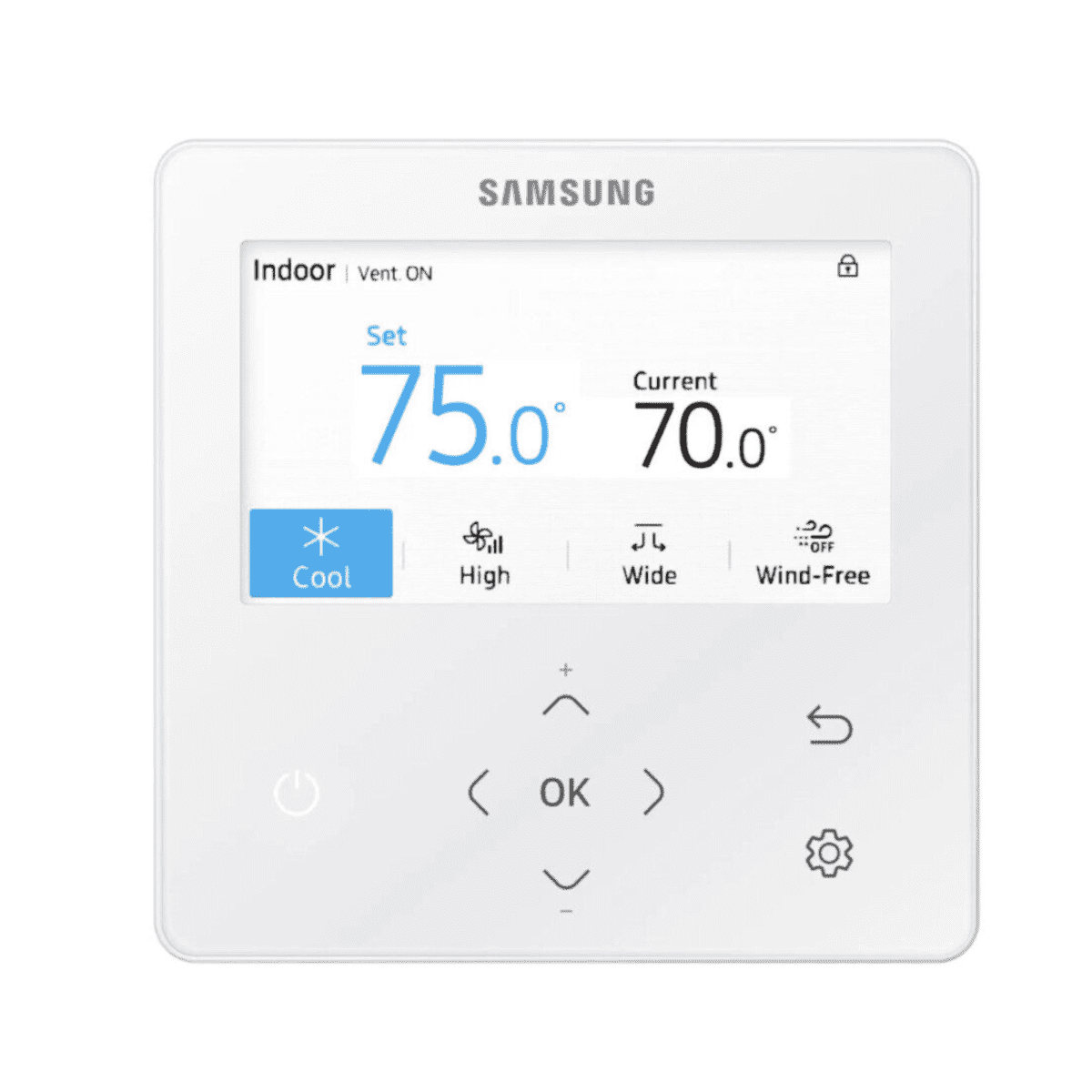

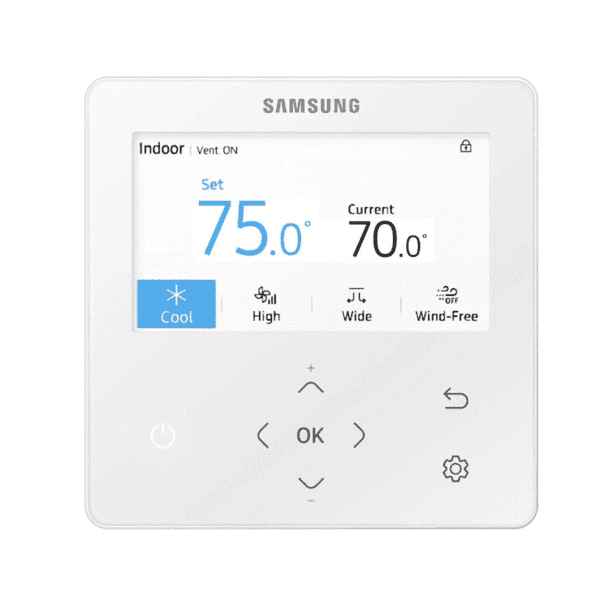

• 1 × LCD Colour Wired Controller (NASA) MWR-WG01JN
• Integrated washable HD40 air filter
• Installation and user documentation
High-Capacity Under Ceiling Heat Pump for Large Commercial Spaces

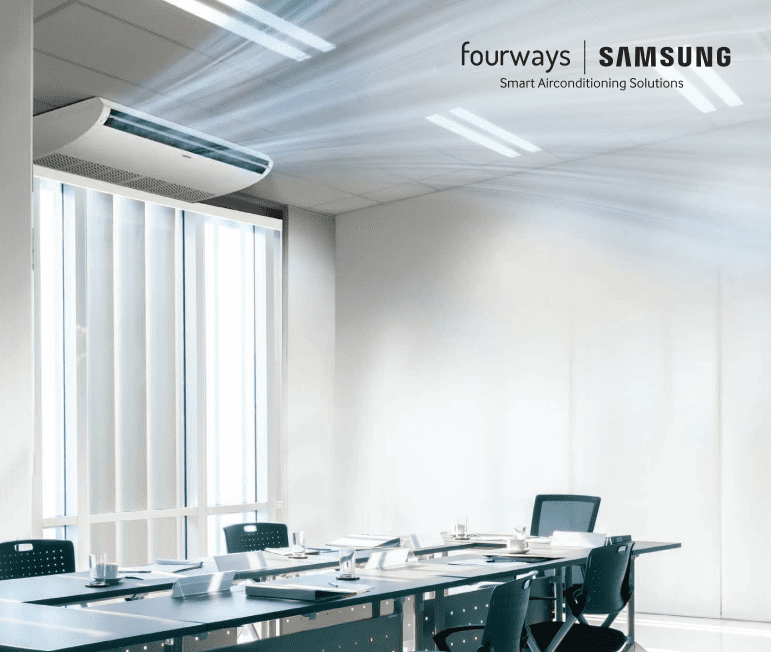

The Samsung Under Ceiling Heat Pump 12.0kW single-phase system is designed for commercial environments where suspended ceilings are not available and a high-capacity solution is required without the need for three-phase power. Installed directly beneath the ceiling, the unit delivers strong horizontal airflow, making it ideal for high-ceiling spaces such as retail units, gyms, workshops, showrooms and open-plan commercial interiors.
Samsung’s Digital Inverter technology precisely modulates compressor output to match real-time demand, improving energy efficiency while maintaining stable indoor temperatures. The enlarged blade and enhanced fan design allow air to be projected over long distances of up to 15 metres, ensuring even temperature distribution throughout large spaces.
The supplied wired controller enables full control of fan speed, airflow direction and operating modes, with the option to restrict user access. This helps prevent unauthorised adjustments and supports effective energy management in shared commercial environments. The system uses R32 refrigerant, offering reduced environmental impact alongside reliable year-round heating and cooling performance.
Key Product Features:
• Single-phase under-ceiling air conditioning system
• Suitable for buildings without false ceilings
• Long-throw airflow up to 15 metres
• Enlarged blade and enhanced fan for high air volume with reduced noise
• Digital inverter compressor for efficient, stable operation
• Heat pump functionality for year-round heating and cooling
• Horizontal airflow with auto-swing function
• Wired controller with fan speed and mode control
• Controller lock function to restrict unauthorised user adjustments
• Long-life washable HD40 air filter supplied as standard
• Optional SmartThings Wi-Fi control via interface
• Uses R32 refrigerant with lower environmental impact
Technical Specifications:
Cooling Capacity: 12.0kW (3.5–13.5kW)
Heating Capacity: 13.2kW (3.8–16.5kW)
Energy Efficiency (Cooling): A+
Energy Efficiency (Heating): A+
SEER: 5.9
SCOP: 4.0
Indoor Airflow (High / Medium / Low): approx. 500 / 400 / 333 l/s
Indoor Sound Pressure (High / Medium / Low): approx. 44 / 41 / 37 dB(A)
Indoor Unit Dimensions (W × H × D): 1,650 × 235 × 675 mm
Outdoor Unit Dimensions (W × H × D): 940 × 998 × 330 mm
Refrigerant Type: R32
Pipe Connections: Liquid 3/8", Gas 5/8"
Maximum Pipe Length: 50 m
Maximum Height Difference: 30 m
Power Supply: 220–240V / 1Ph / 50Hz
Fuse Rating: 30A
Optional Accessories & Controls:
• MWR-WG01JN – LCD Colour Wired Controller (NASA)
• MWR-SH11N – Touch Simplified Wired Remote Controller
• MIM-H04EN – Wi-Fi Receiver 2.0 for SmartThings Control
• MRW-TA – Remote Temperature Sensor
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
