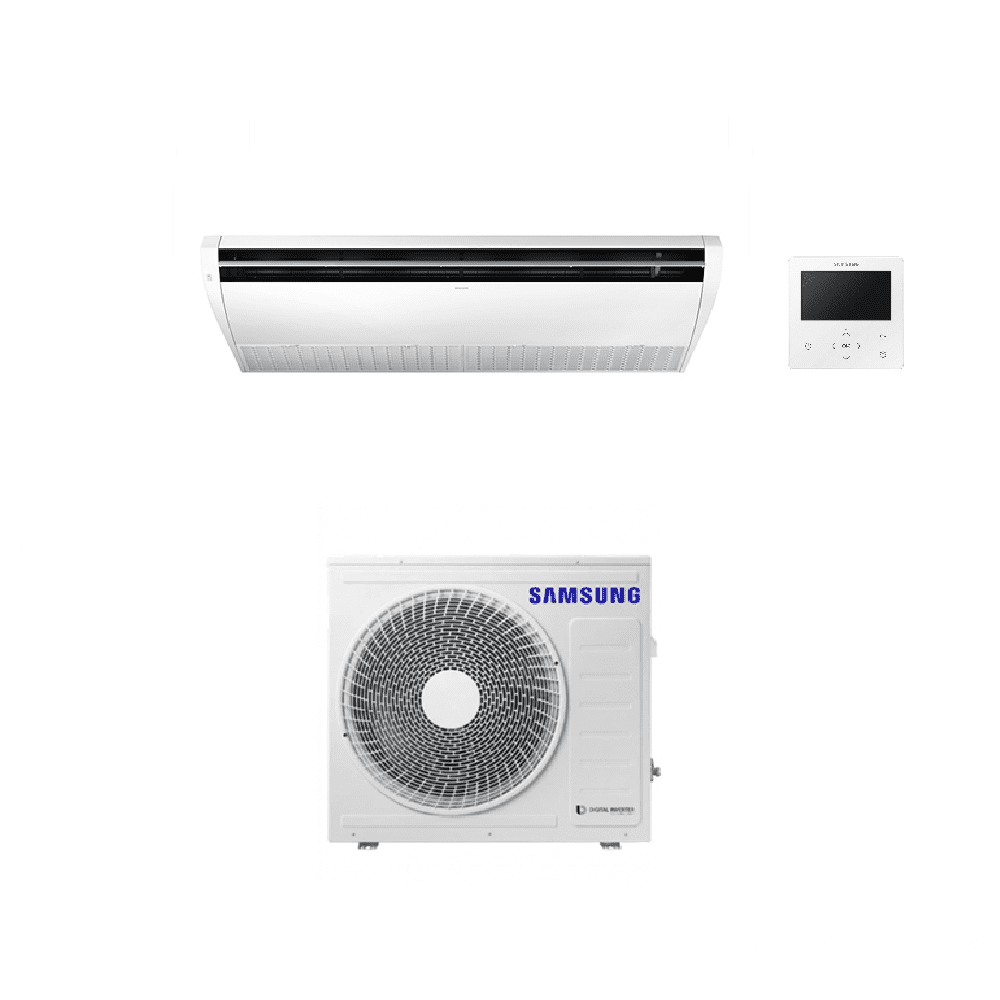

This Kit Includes:
• 1 × Samsung Outdoor Unit AC100RXADKG/EU (10.0kW Cooling / 11.2kW Heating, 1-Phase)

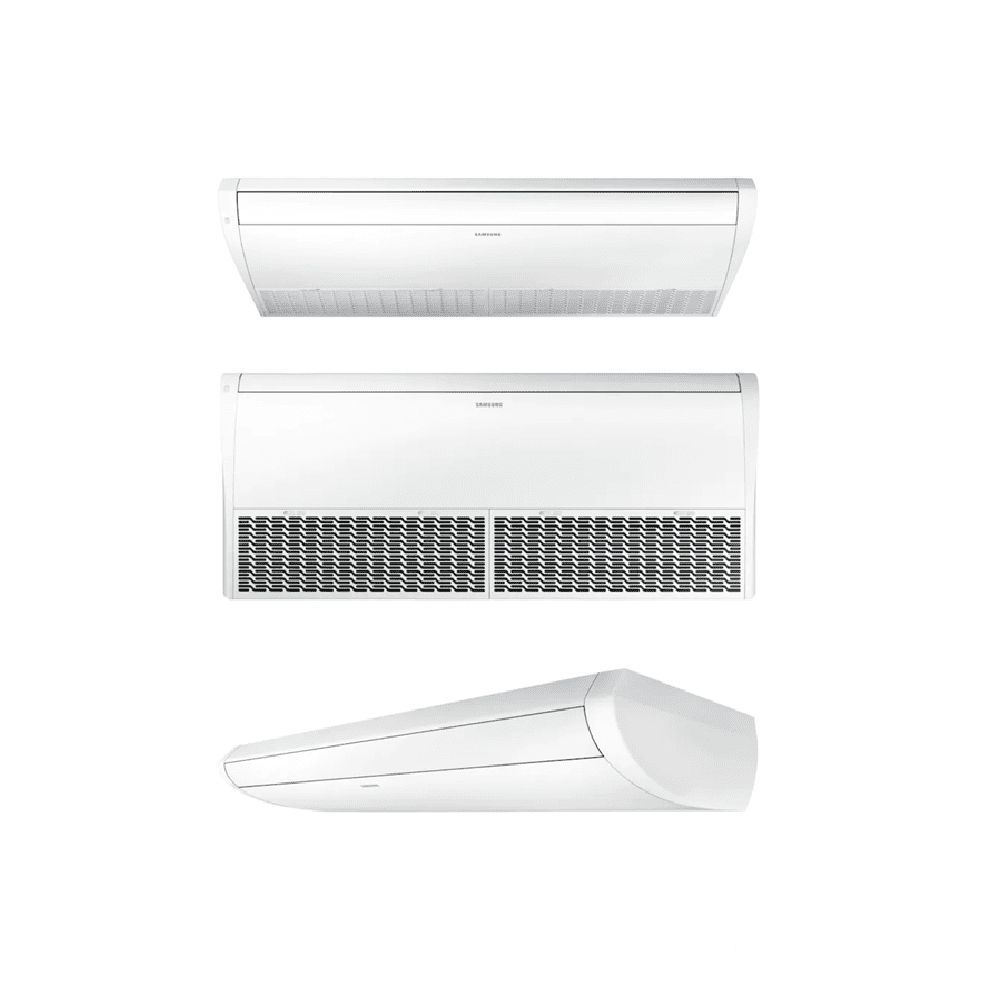

• 1 × Samsung Large Ceiling Suspended Indoor Unit AC100RNCDKG/EU

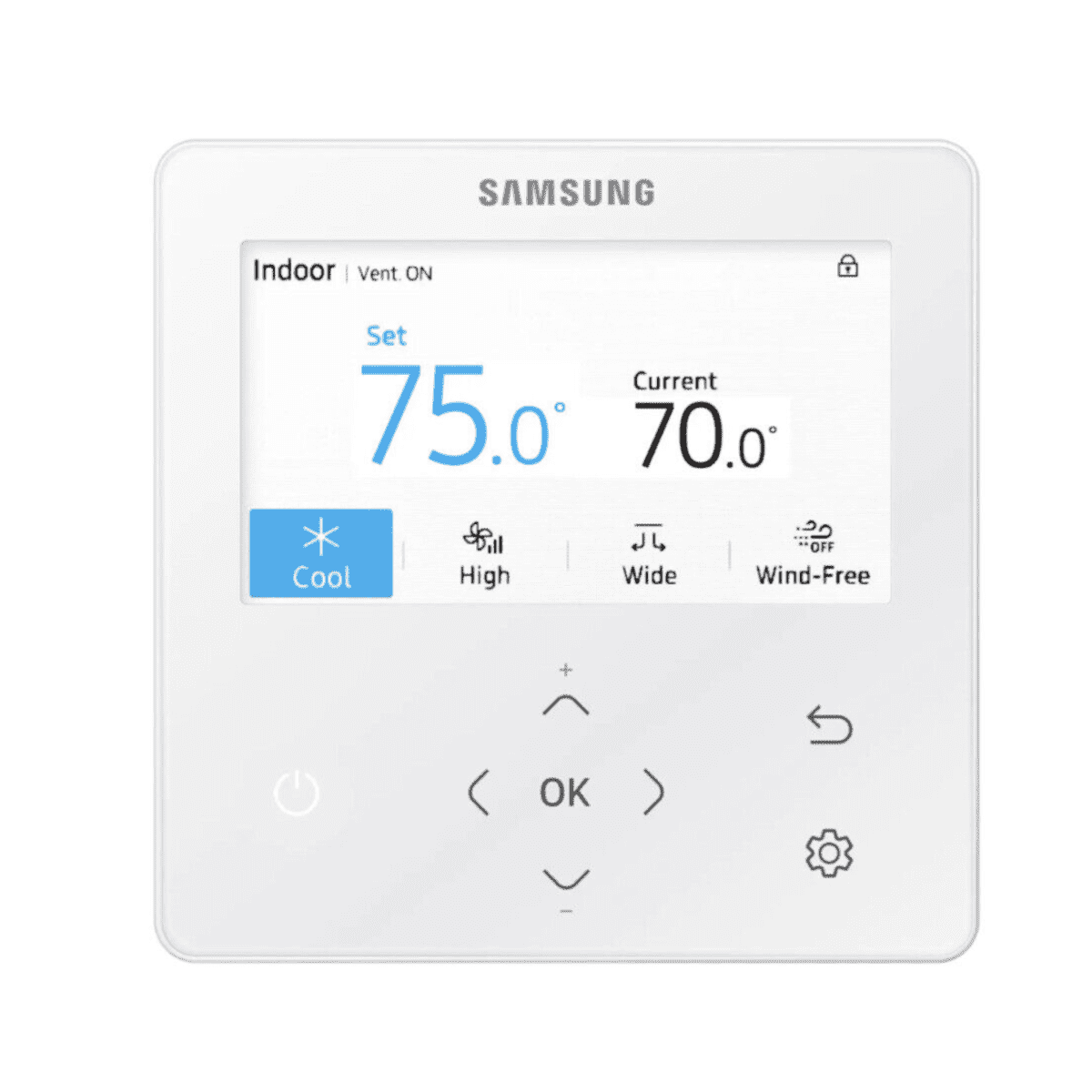

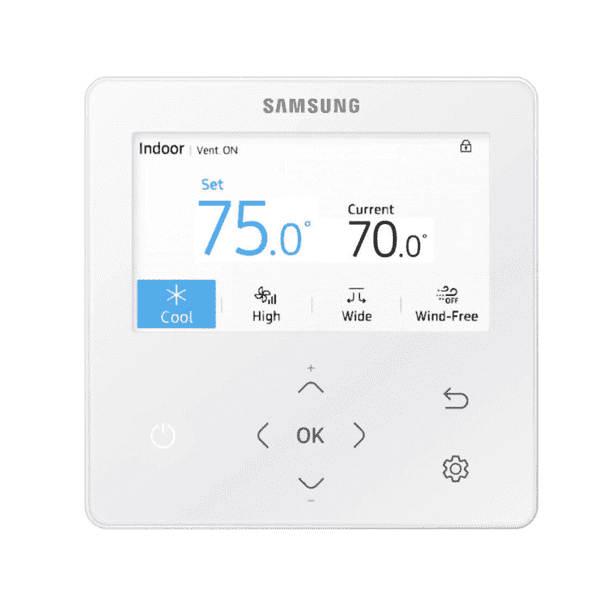

• 1 × LCD Colour Wired Controller (NASA) MWR-WG01JN
• 1 × Washable HD40 Permanent Air Filter
• Installation & User Documentation
High-Capacity Ceiling Suspended Air Conditioning for Large Open Spaces
The Samsung Large Ceiling Suspended 10.0kW commercial split system is designed for buildings where suspended ceilings are not available and powerful, evenly distributed airflow is required. Ideal for high-ceiling environments such as warehouses, gyms, workshops, retail units and open commercial spaces, this system delivers strong, consistent cooling and heating performance all year round.

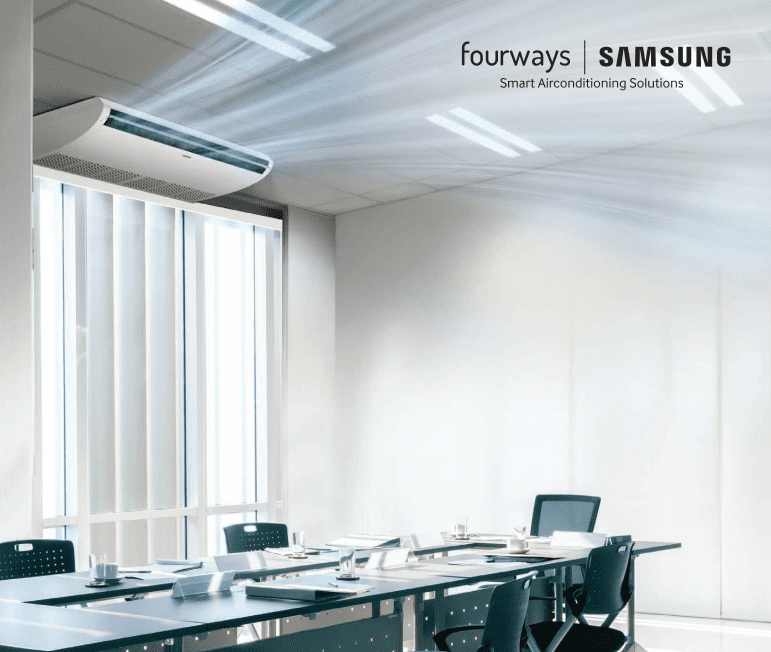

Mounted directly beneath the ceiling, the unit distributes air horizontally using a wide adjustable blade and auto-swing function to improve comfort across large areas. Fan speed and airflow direction can be easily controlled via the supplied wired controller, allowing installers or facilities managers to fine-tune comfort levels while maintaining energy efficiency.
To prevent unauthorised adjustments, the controller can be configured to restrict user access, helping avoid excessive heating or cooling and supporting controlled energy usage in shared commercial environments.
Key Product Features:
• Ceiling suspended installation for spaces without false ceilings
• Ideal for high ceiling and large open-plan rooms
• Powerful horizontal airflow with adjustable blade
• Auto-swing function for improved air distribution
• Digital Inverter technology for efficient operation
• Wired controller supplied with access restriction capability
• Long-life washable HD40 air filter included
• Quiet operation relative to output capacity
• Optional Wi-Fi control via SmartThings interface
• Uses environmentally friendly R32 refrigerant
• Suitable for retail, industrial and commercial applications
Technical Specifications:
Outdoor Unit: AC100RXADKG/EU
Indoor Unit: AC100RNCDKG/EU
Cooling Capacity: 10.0kW (3.0–12.0kW)
Heating Capacity: 11.2kW (2.2–15.5kW)
SEER: 6.1 (A++)
SCOP: 4.0 (A+)
Indoor Airflow (H/M/L): 433 / 383 / 317 l/s
Indoor Sound Pressure (H/M/L): 42 / 38 / 34 dB(A)
Outdoor Sound Pressure (Cooling/Heating): 52 / 54 dB(A)
Indoor Dimensions (W × H × D): 1,650 × 235 × 675 mm
Outdoor Dimensions (W × H × D): 940 × 998 × 330 mm
Net Weight (Indoor): 42.0 kg
Net Weight (Outdoor): 75.0 kg
Refrigerant: R32
Pipe Connections: Liquid 3/8" / Gas 5/8"
Max Pipe Length: 50 m
Max Height Difference: 30 m
Power Supply: 220–240V / 1Ph / 50Hz
Fuse Rating: 30A
Optional Accessories & Controls:
• MWR-WG01JN – LCD Colour Wired Controller (NASA)
• MWR-SH11N – Touch Simplified Wired Remote Controller
• MIM-H04EN – Wi-Fi Receiver 2.0 for SmartThings Control
• MRW-TA – Remote Temperature Sensor
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
