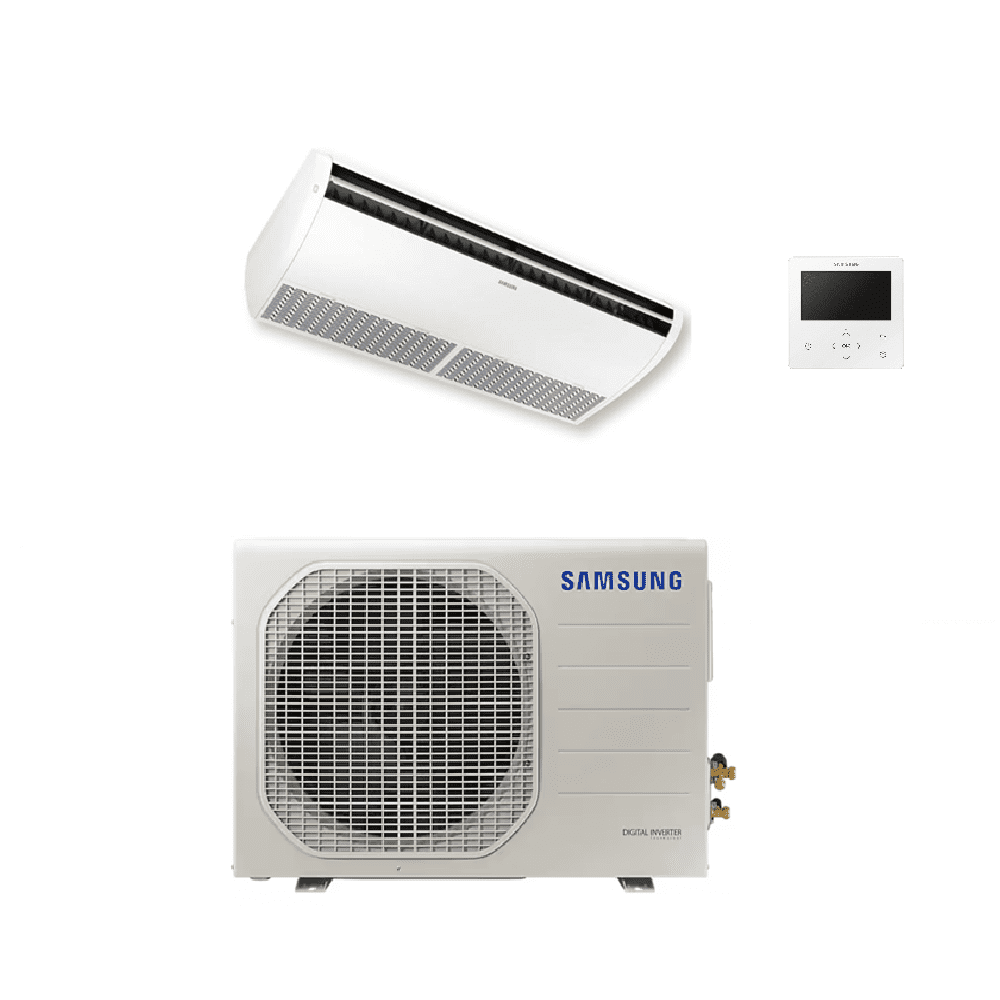

This Kit Includes:

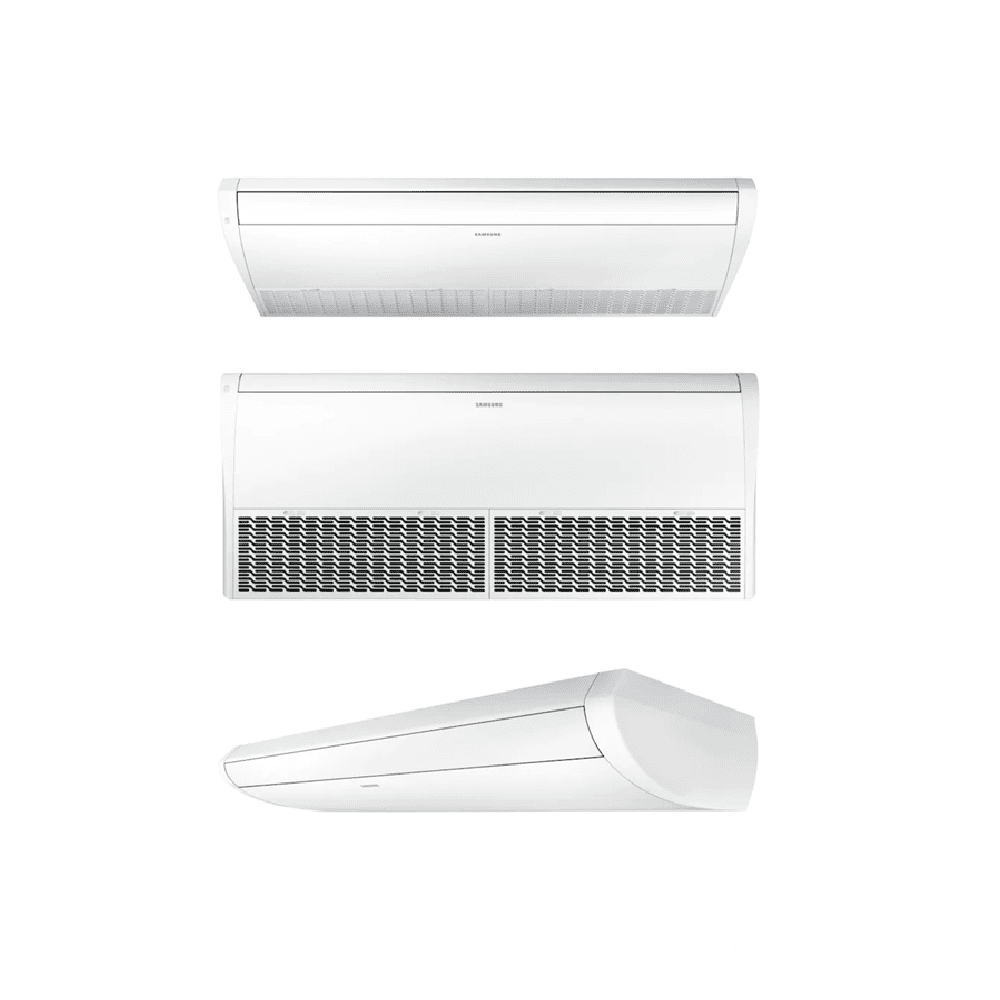

• 1 × Samsung Under Ceiling Indoor Unit AC071RNCDKG/EU
• 1 × Samsung Inverter Heat Pump Outdoor Unit AC071RXADKG/EU (Single Phase)

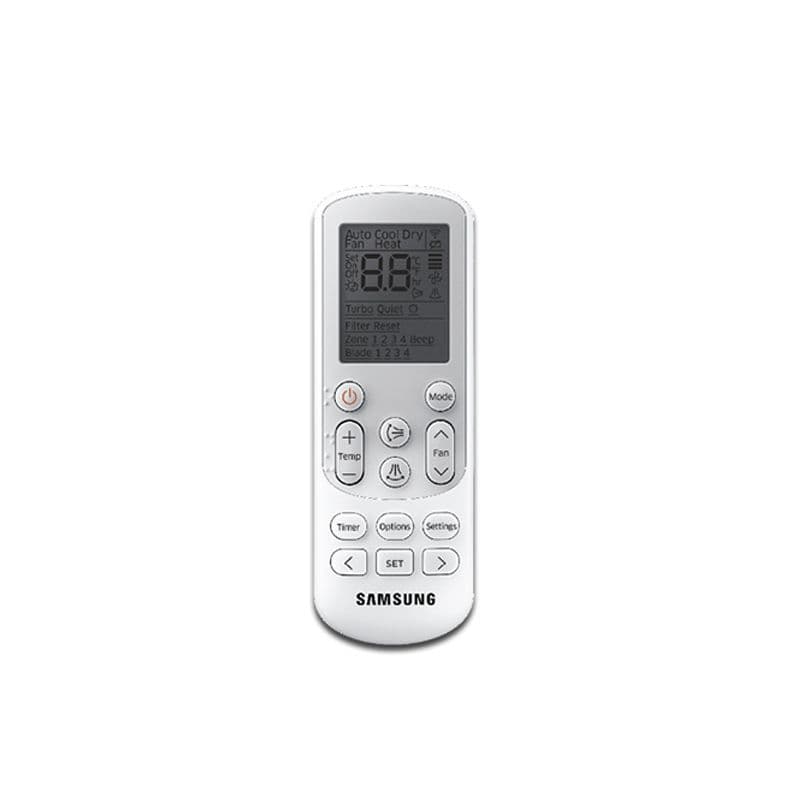

• 1 × Wireless Remote Controller MR-EH01
• Integrated washable air filter
• Installation and user documentation
Compact Under Ceiling Heat Pump for Medium Commercial Spaces

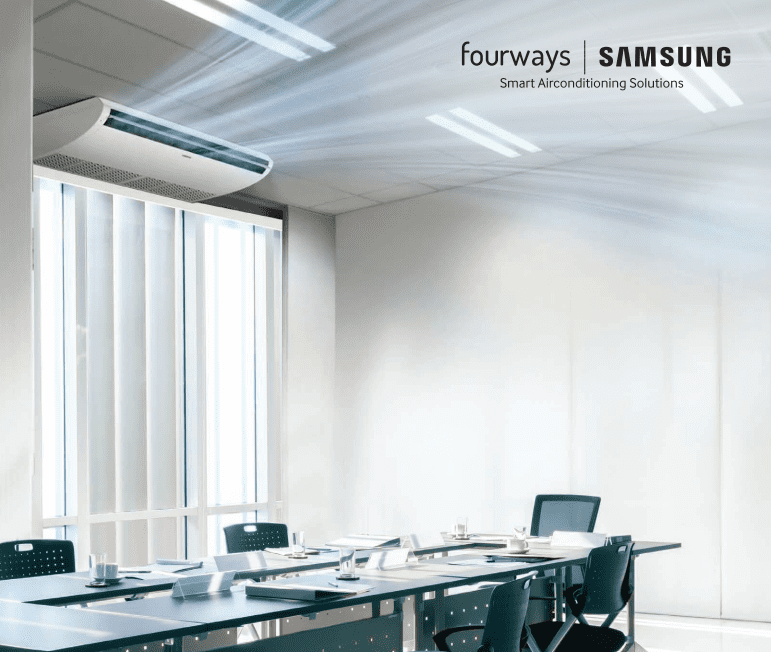

The Samsung Under Ceiling Heat Pump 7.1kW system is designed for medium-sized commercial environments where wall-mounted units are unsuitable and suspended ceilings are not available. Installed directly beneath the ceiling, the unit delivers wide horizontal airflow, providing consistent temperature control across open floor areas.
Ideal for retail units, offices, classrooms, cafés, studios and light industrial spaces, this system combines Samsung’s inverter heat pump technology with R32 refrigerant to deliver efficient, reliable year-round cooling and heating. The under-ceiling design maximises usable wall space while maintaining a clean, unobtrusive appearance within the room.
Supplied with a wireless remote controller as standard, users can easily adjust fan speed, airflow direction and operating modes to maintain comfort while avoiding unnecessary energy consumption.
Key Product Features:
• Under-ceiling mounted air conditioning system
• Suitable for buildings without false ceilings
• Ideal for medium commercial and light industrial spaces
• Digital inverter compressor for efficient, stable operation
• Heat pump functionality for cooling and heating
• Horizontal airflow distribution for even comfort
• Wireless remote controller supplied as standard
• Adjustable fan speed and airflow direction
• Quiet operation relative to output capacity
• Uses R32 refrigerant with lower environmental impact
Technical Specifications:
Cooling Capacity: 7.1kW (1.5–8.7kW)
Heating Capacity: 8.0kW (1.9–9.0kW)
Energy Efficiency (Cooling): A+
Energy Efficiency (Heating): A
SEER: 5.6
SCOP: 3.9
Indoor Unit Dimensions (W × H × D): approx. 1,000 × 235 × 675 mm
Outdoor Unit Dimensions (W × H × D): approx. 880 × 798 × 310 mm
Refrigerant Type: R32
Pipe Connections: Liquid 1/4", Gas 5/8"
Maximum Pipe Length: 50 m
Maximum Height Difference: 30 m
Power Supply: 220–240V / 1Ph / 50Hz
Fuse Rating: 25A
Optional Accessories & Controls:
• MWR-WG01JN – LCD Colour Premium Wired Controller (NASA)
• MWR-SH11N – Touch Simplified Wired Remote Controller – WindFree™ (NASA)
• AR-CH01E – 360° / WindFree™ Wireless Solar Remote Controller (SPLIT/DVM)
• MIM-H04EN – Wi-Fi Receiver 2.0 for NASA SPLIT/DVM Indoor Units
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
