This Kit Includes:

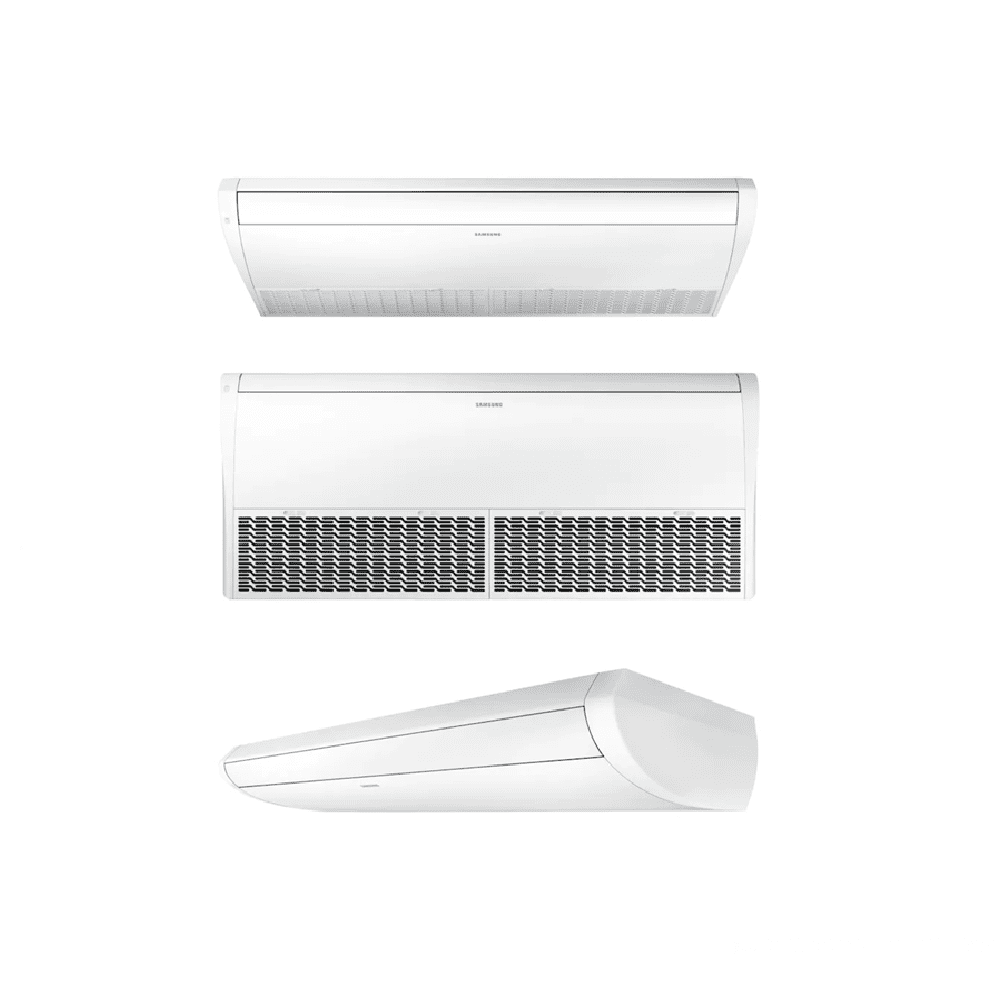

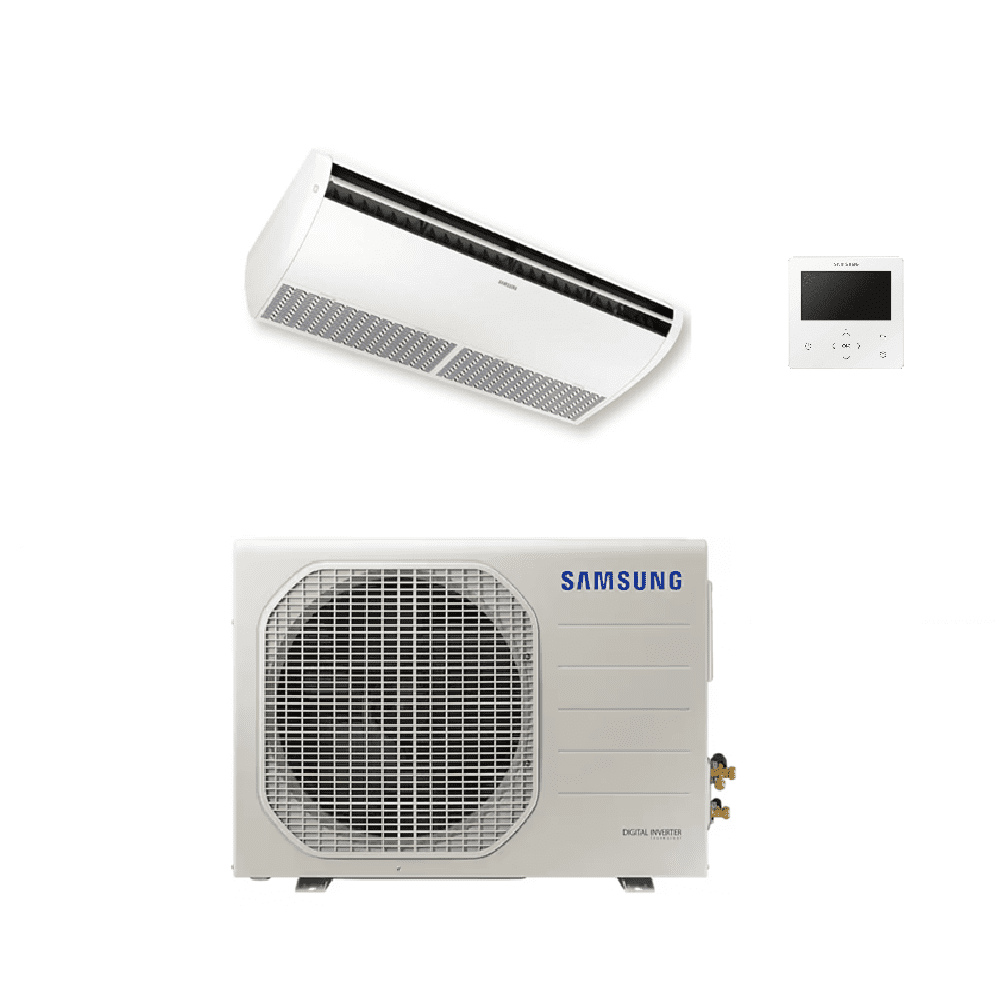

• 1 × Samsung Under Ceiling Indoor Unit AC052RNCDKG/EU
• 1 × Samsung Inverter Heat Pump Outdoor Unit AC052RXADKG/EU (Single Phase)

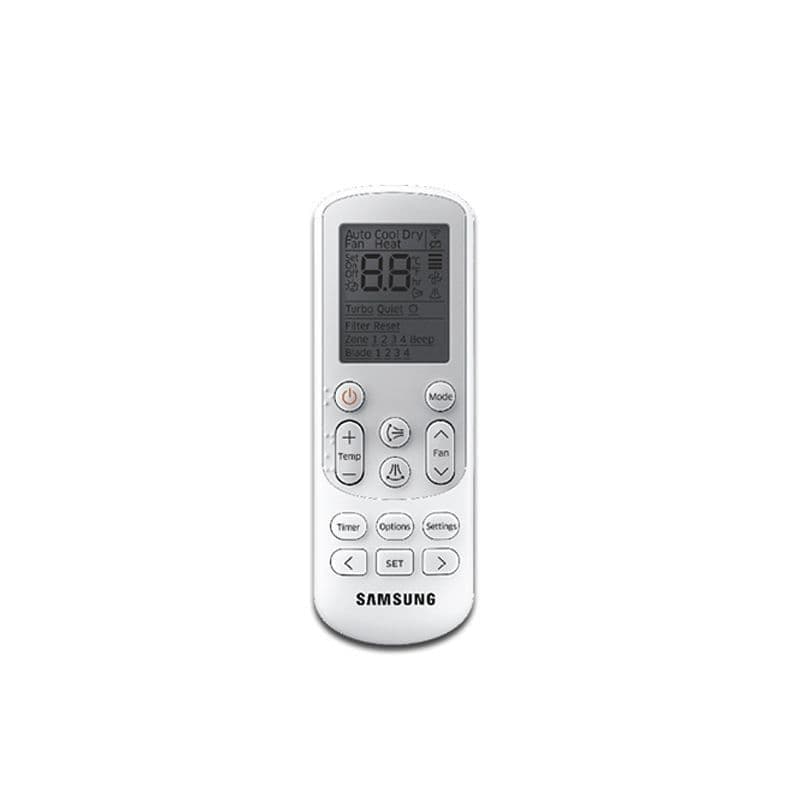

• 1 × Wireless Remote Controller MR-EH01
• Integrated washable air filter
• Installation and user documentation
Compact Under Ceiling Heat Pump for Commercial & Light Industrial Spaces

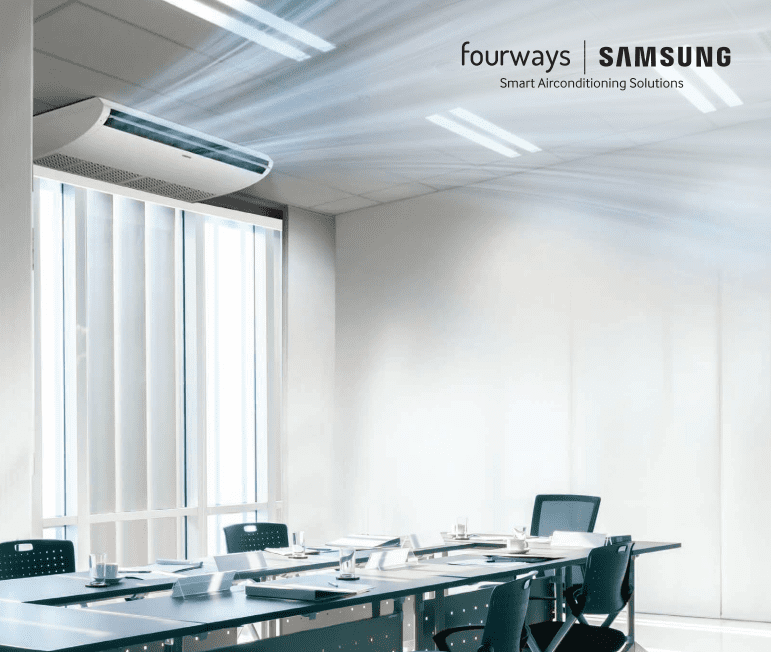

The Samsung Under Ceiling Heat Pump 5.0kW system is a compact, efficient air conditioning solution designed for commercial spaces where wall-mounted units are unsuitable and suspended ceilings are not available. Mounted directly beneath the ceiling, the unit delivers horizontal airflow across the occupied space, providing reliable temperature control without intruding into usable wall areas.
Ideal for shops, offices, classrooms, cafés, workshops and small commercial environments, this system combines Samsung’s inverter heat pump technology with environmentally responsible R32 refrigerant to deliver efficient year-round cooling and heating. The streamlined under-ceiling design allows for flexible installation while maintaining a clean, unobtrusive appearance.
Supplied with a wireless remote controller as standard, users can easily adjust fan speed, airflow direction and operating modes, ensuring comfort is maintained throughout the day with minimal energy waste.
Key Product Features:
• Under-ceiling mounted air conditioning system
• Suitable for spaces without false ceilings
• Compact design ideal for small to medium commercial rooms
• Digital inverter compressor for efficient, stable operation
• Heat pump functionality for cooling and heating
• Horizontal airflow distribution for even comfort
• Wireless remote controller supplied as standard
• Adjustable fan speed and airflow direction
• Quiet operation relative to output capacity
• Uses R32 refrigerant with lower environmental impact
Technical Specifications:
Cooling Capacity: 5.0kW (1.2–6.5kW)
Heating Capacity: 6.0kW (1.7–7.7kW)
Energy Efficiency (Cooling): A++
Energy Efficiency (Heating): A
SEER: 6.4
SCOP: 3.9
Indoor Unit Dimensions (W × H × D): approx. 1,000 × 235 × 675 mm
Outdoor Unit Dimensions (W × H × D): approx. 790 × 548 × 285 mm
Refrigerant Type: R32
Pipe Connections: Liquid 1/4", Gas 1/2"
Maximum Pipe Length: 30 m
Maximum Height Difference: 20 m
Power Supply: 220–240V / 1Ph / 50Hz
Fuse Rating: 20A
Optional Accessories & Controls:
• MWR-WG01JN – LCD Colour Premium Wired Controller (NASA)
Provides advanced wired control with clear colour display, ideal for commercial installations requiring precise temperature and operating mode management.
• MWR-SH11N – Touch Simplified Wired Remote Controller – WindFree™ (NASA)
A sleek, touch-based wired controller offering intuitive operation and simplified user interaction, suitable for professional environments.
• AR-CH01E – 360° / WindFree™ Wireless Solar Remote Controller (SPLIT/DVM)
Wireless solar-powered remote controller designed for ease of use and reduced battery waste, compatible with Samsung split and DVM systems.
• MIM-H04EN – Wi-Fi Receiver 2.0 for NASA SPLIT/DVM Indoor Units
Enables SmartThings connectivity for remote monitoring and control via smartphone, allowing scheduling, energy monitoring and system optimisation.
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
