Introduction

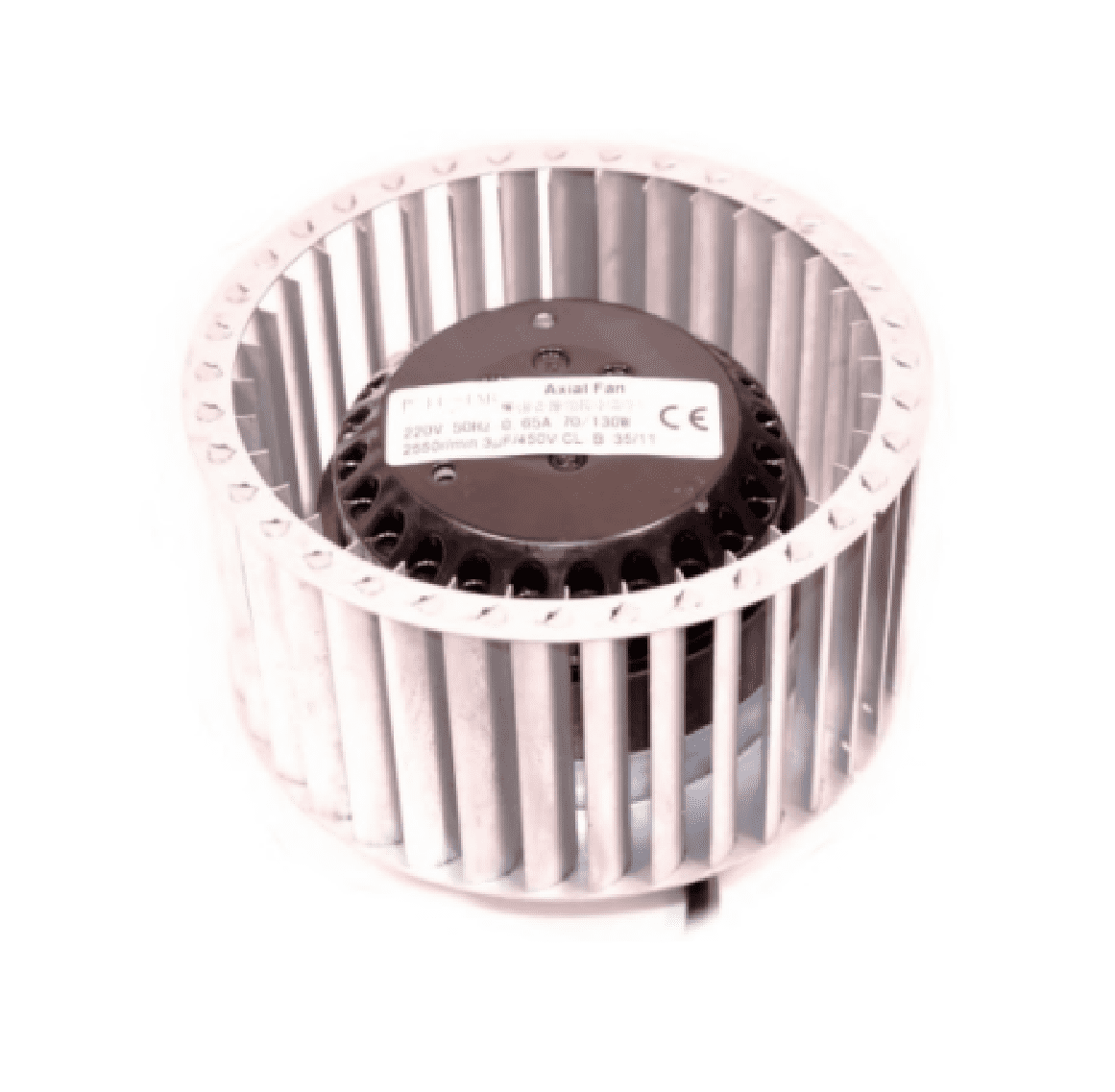

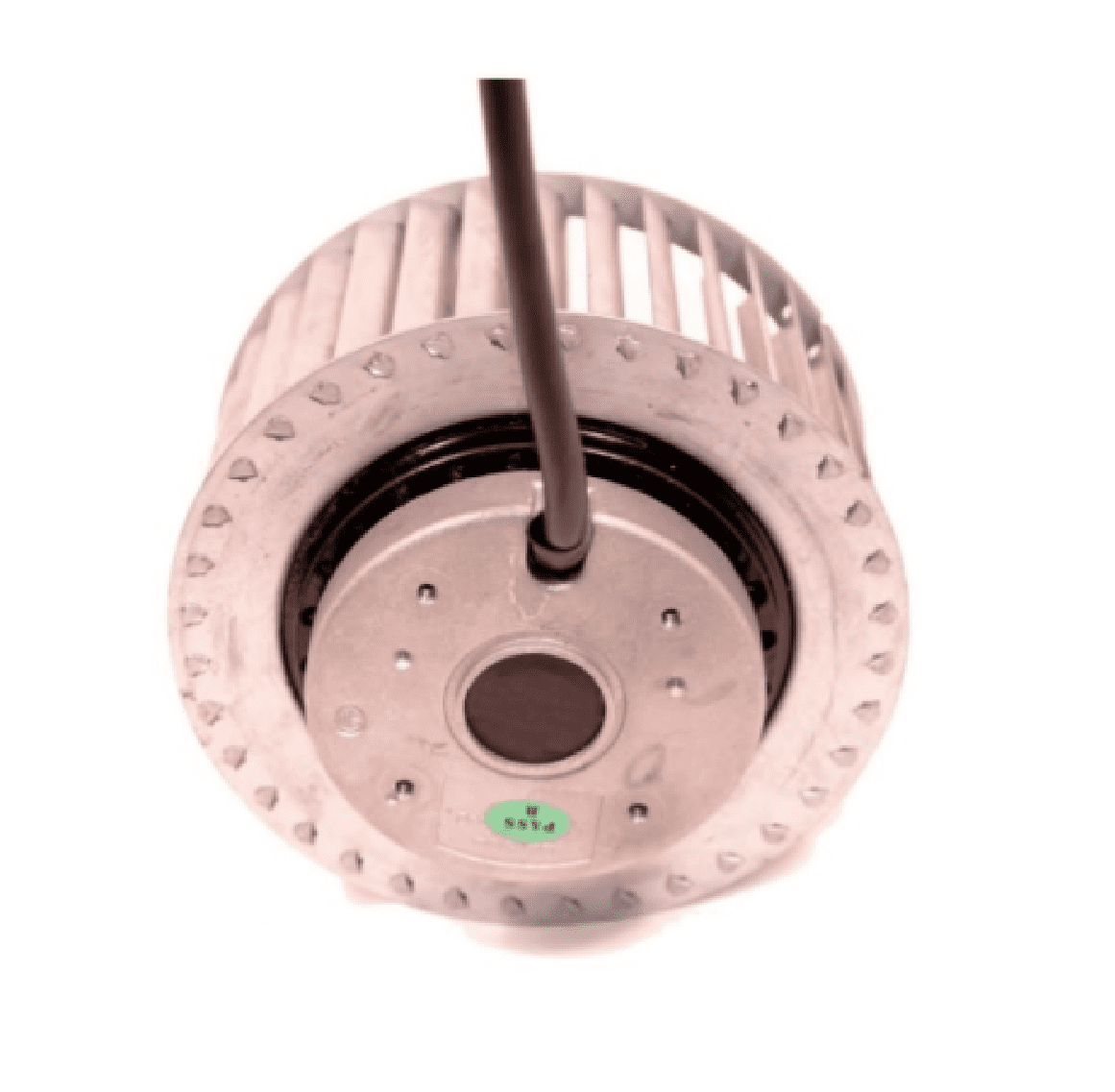

The PSP FCI-2-250/100-1 Forward Curved Fan is a reliable centrifugal fan designed for HVAC systems, air handling units and commercial ventilation applications. Featuring a forward curved impeller and a robust PSC motor, this unit delivers stable airflow and consistent performance under continuous operation. Its compact and durable construction makes it ideal for integration into ducted systems and OEM equipment.

Key Product Features

250mm forward curved centrifugal fan
230V~50Hz/60Hz single phase PSC motor
Forward curved impeller for efficient airflow
Single speed operation
Totally enclosed motor design
Sealed for life ball bearings
Class B insulation with IP54 protection
Continuous duty rating
Compact design for AHU and OEM integration
Designed to blow air through ducted systems

Technical Specification

Model: FCI-2-250/100-1
Brand: PSP
Fan Type: Forward Curved Centrifugal Fan
Wheel Diameter: 250mm
Wheel Height: 100mm
Voltage: 230V~50Hz/60Hz
Phase: 1PH
Motor Type: PSC
Speeds: Single
Motor Protection: IP54
Insulation Class: Class B
Bearing Type: Sealed Ball Bearings
Temperature Range: -30°C to +60°C

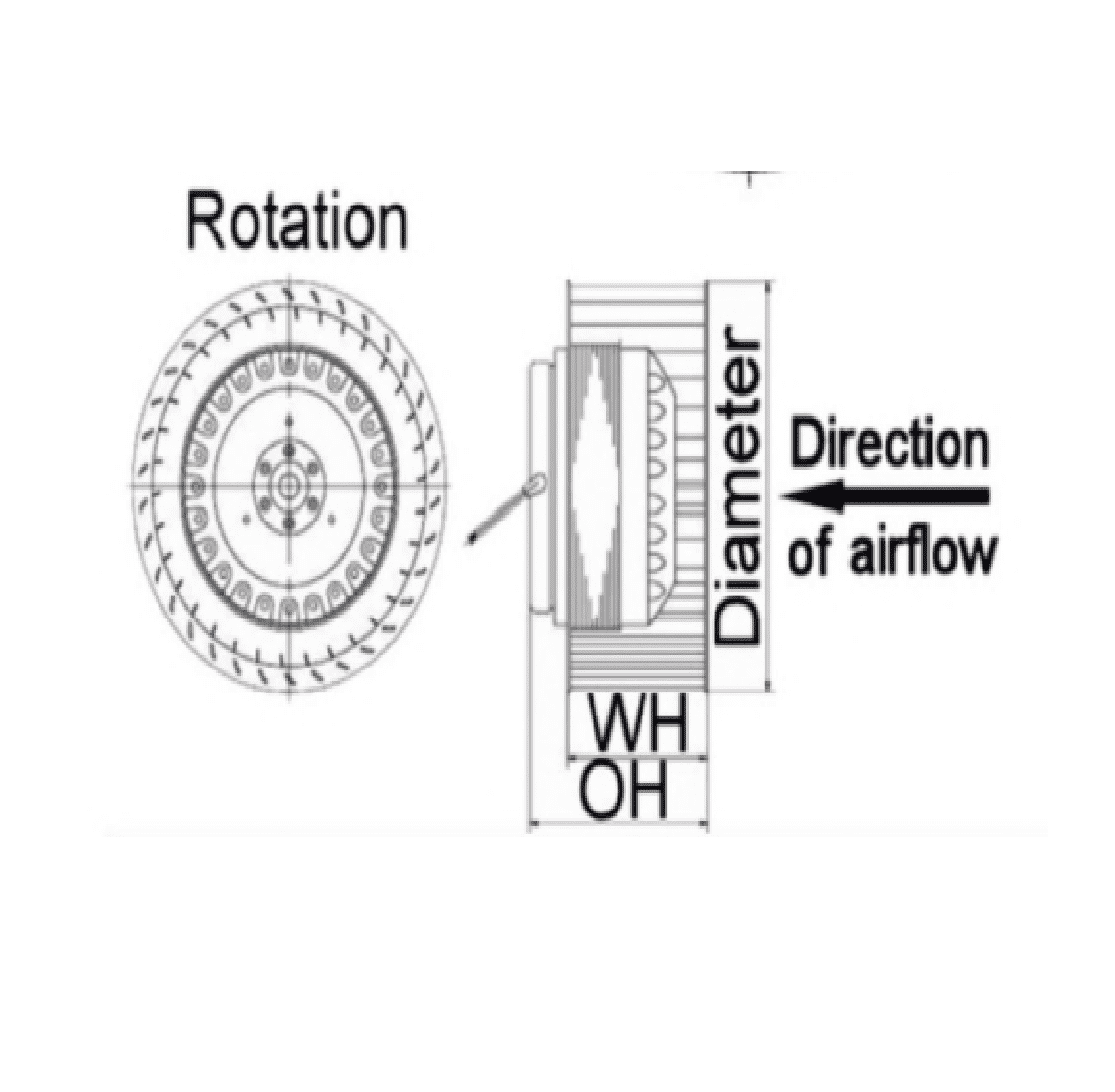

Rotation: CW

Applications

Air handling units
HVAC systems
Commercial ventilation
Fan coil units
OEM equipment

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
