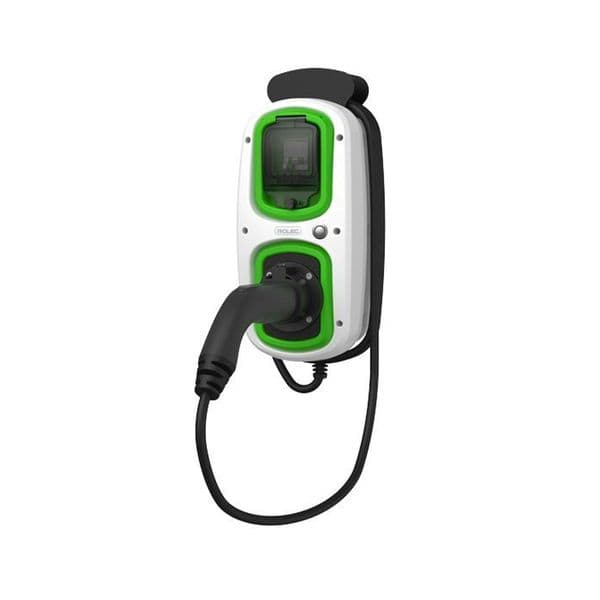

Rolec EVWP2140 Type 2 WallPod EV Charging Unit With 5M Tethered Lead 32A 7.2Kw 230V~50Hz
The EVWP2140 Wallpod EV is a low-cost, UK Manufactured, entry level charging unit, designed to offer full Mode 3 fast charging to every Electric Vehicle (EV/PHEV) on the market today. This charging unit has been specifically designed for domestic and commercial locations including offices, factories, restaurants, hotels, sports venues, etc. The Wallpod EV charging stations are specially designed to withstand several hours of use on a daily basis in a tough environment.
Key Product Features:
- CODE: EVWP2140
- IEC 61851-1 Mode 3 fast charging
- J1772 (Type 1) or IEC 62196 (Type 2) 5m tethered lead & lead holder
- Charging speeds - 3.6kW (16A) & 7.2kW (32A)
- Built-in overload and fault current protection (RCBO)
- Built-in LED charging status indicator
- OLEV Grant Fundable under the Electric Vehicle Home-charge Scheme
- Certificated by the BSI as safe to use in the domestic environment
- Easy to install and maintain
- IP65 Weatherproof & UV stabilised housing
- Corrosion resistant
- Fire retardant components and housing
- Impact resistant design
- CE/EU Certified
Technical Specification:
- CODE: EVWP2140
- IEC 61851-1 Mode 3 fast charging
- J1772 (Type 1) or IEC 62196 (Type 2) 5m tethered lead & lead holder
- Charging speeds - 3.6kW (16A) & 7.2kW (32A)
- Input voltage: 230V AC (single phase)
- Output: 7.2kW - 32A
- Charger/Socket type: Type 2 Tethered lead
- Lead length: 5 Metres (approx. 4.5M External)
- Charge protocol: Mode 3
- Dimensions (W x H x D): 179mm x 415.5mm x 142mm
- Not OLEV Grant Eligible
- Cable terminals: 16mm earth
- External 40A 30mA Type A RCBO & Built-In 6mA DC Sensitive Device
- product certifications- CE/ CB
OPTIONS & ACCESSORIES:
Key switch control charging
Lockable door to switchgear
Built-in class 1 MID compliant kWh meter
Built-in time clock providing charge time management
Corporate branding (colours, logo badge, etc.)
Amp-Selector key switch (switches between 16A or 32A)
Charge-By-Solar switch (switches between 6A, 13A, 16A or 32A)
Charge point signage
Wall mounted charging gun holster
PDF Data:
