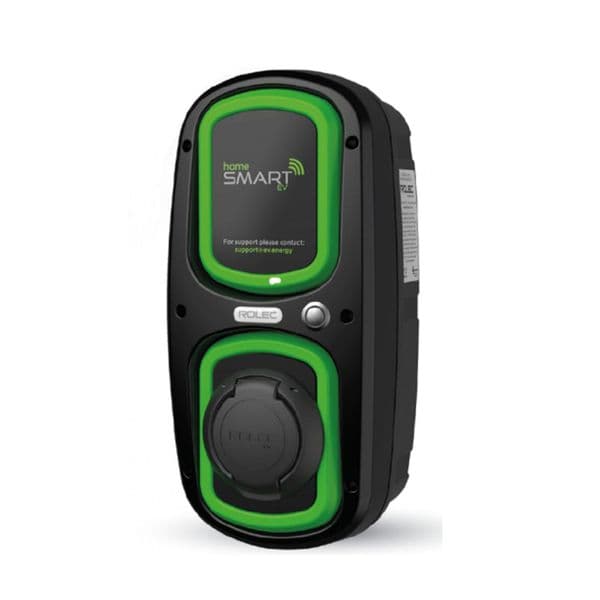

Rolec EVHS2020 WallPod HomeSmart GPRS Type 2 With MC Consumer Unit UEV Charging 32A 7.2Kw 230V~50Hz
The WallPod:EV HomeSmart is a smart charging unit which has been designed to provide the user with a simple, mobile phone
interactive EV charging solution for the home. The EV driver can control the charging activity of their WallPod EV HomeSmart unit using their mobile phone, as well as allowing them to monitor / record all their charging activity, data and history. Available with a Type 2, Mode 3 charging socket offering either 3.6kW (16amp) or 7.2kW (32amp) charging speeds. The Wallpod EV charging stations are specially designed to withstand several hours of use on a daily basis in a tough environment.
Key Product Features:
• Smart charging (see smart features)
• IEC 61851-1 Mode 3 fast charging
• IEC 62196 (Type 2) charging socket
• Charging speeds - 3.6kW (16A) & 7.2kW (32A)
• Supplied with external overload and fault current protection (Type A RCBO)
• Built-in DC sensitive protective device
• Built-in LED charging status indicator
• Built-in Class 1 MID compliant kWh meter
• Built-in Modem and roaming sim
• Built-in GPRS communication antenna
• OLEV Grant Fundable under the Electric Vehicle Homecharge Scheme
• Certificated by the BSI as safe to use in the domestic environment
• IP65 Weatherproof & UV Stabilised
• Corrosion resistant, fire retardant & impact resistant design
• certified
• OCPP compatible
Technical Specification:
|
Charging Access
|
Free to use
|
|
Charging Mode
|
3
|
|
Charging Power
|
7.2kW
|
|
Colour
|
Black/Green
|
|
Compliance
|
BSI Certificated to BS EN 60335-1 – (safety certificate)
|
|
Current Rating
|
32A
|
|
Depth
|
142mm
|
|
Dimensions
|
(H)465 mm x (W)179 mm x (D)142 mm
|
|
Ev Type
|
IEC 62196 (Type 2)
|
|
Frequency
|
50/60 Hz
|
|
Guarantee
|
3 Years
|
|
Height
|
465mm
|
|
IP Rating
|
IP65
|
|
Lockable
|
No
|
|
Mounting
|
Wall
|
|
Number of Ways
|
1
|
|
Operating Temperature Range
|
-30 - 50°C
|
|
Output Type
|
Type 2 Socket
|
|
Packaging Types
|
Each
|
|
Product Range
|
Rolec WallPod EV HomeSmart
|
|
Socket Protection
|
External 30mA RCBO and Built in 6mA Sensitive Device
|
|
Standards
|
EN 60695, EN 60592, EN 61000, EN 61851
|
|
Status Indicator
|
LED
|
|
Suitable For
|
Home
|
|
Unspsc
|
39121406
|
|
Voltage Rating
|
230V
|
|
Weight
|
2.07kg
|
|
Width
|
179mm
|
|
kW Rating
|
7.2kW
|
OPTIONS & ACCESSORIES:
Corporate branding (colours, logo badge, etc.)
EV charging cables (Type 1 to Type 2 or Type 2 to Type 2)
