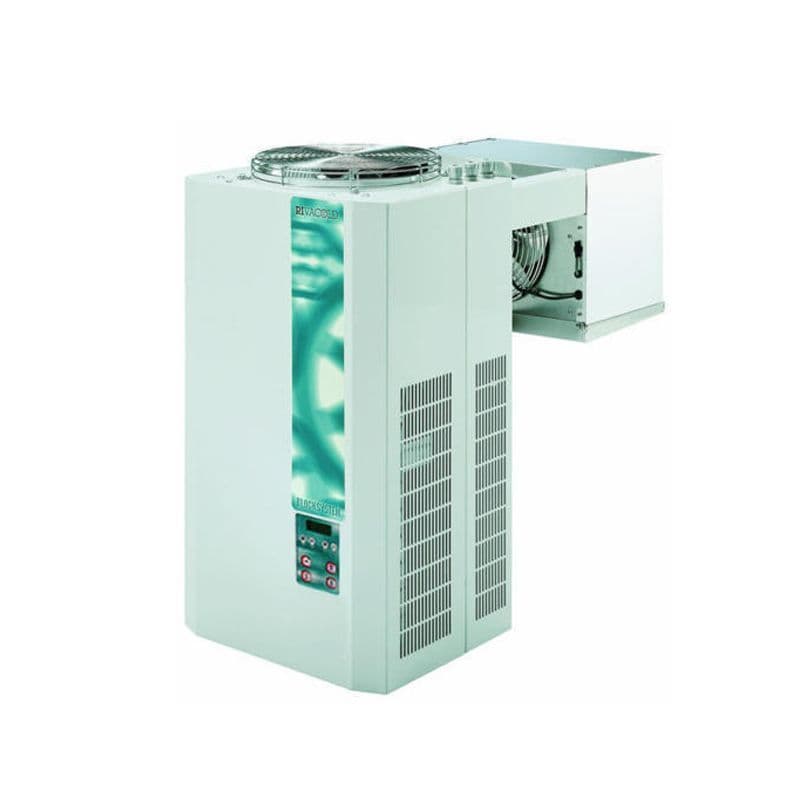

RivaCold FTM028G001 Refrigeration Monoblock Wall Mounted Chiller R452A 1504W 220-240/1/50Hz
The Rivacold packaged Monobloc R452A chiller units are ready to use and have been specially developed for small cold rooms The Rivacold Minibloc units are quickly installed and give the best product storage conditions in terms of temperature and hygrometry. The Rivacold Monoblock unit's are built only from high reliability components. Self-supporting casing in zinc-plated metal sheet, which is coated with epoxy powder. The front panel is easy to remove in order to guarantee an easy access to the components and a fast maintenance. Hermetic compressors with thermal motor protection running on the latest refrigerants available. The electronic control panel can be programmed according to different user requirements. The Rivacold packaged Block-system is contained in one compact housing, consisting of a condensing unit, evaporator and an electrical control panel. This solution enables the user a product which is easy to use and install with the maximum of installation versatility.
FA/FT Range for wall installation:
The FA versatility is highlighted in the dual mounting mode: saddle version (FA range) or plug-in insulating panel fitted version (FT range). Capillary expansion. Off cycle defrosting (HBP), and hot gas defrosting (MBP, LBP).
Refrigerating Capacity Table (watt) :
Ta= Ambient air temp
Tc= Power used related to temperature and size of roof
Ta / Tc -5oC 0oC 5oC
25oC 2375 (25.5 m3) 2769 (31.6 m3) 3182 (47.2 m3)
32oC 2166 (15.4 m3) 2527 (23.9 m3) 2906 (34.2 m3)
43oC 1810 (12.4 m3) 2116 (16.0 m3) 2440 (25.2 m3)
Key Product Features:
- Plug in insulation style installation
- Automatic defrosting with programmable run, duration and frequency settings"Off cycle defrosting
- (HBP), and hot gas defrosting (MBP, LBP)."
- Integral evaporating condensing water tray, or condensing water direct discharge
- Electronic control panel
- Cold room light with 2,5m long cable
- Door micro switch with 2,5m long cable
- Door heater cable for LBP items with 2,5m long cable
- High pressure switch
- Evaporating water tray
- Power supply cable (L=2,5m)
Refrigerating System Technical Data:
Code FTM028G001
Type Compact
Mounting Wall
Range FT
Version Plug-in
Expansion Capillary
Application MBP
Gas R452A
Net Weight 84.5 kg
PED 0
Defrost Hot Gas
Compressor
Type Hermetic
Voltage 220-240/
Power Consumption 1504 W
Current Consumption 3.8 A
Condenser
Fans No 1
Diameter 300 mm
Air Flow 1206 m3/h
Unit Cooler
Fans No 2
Diameter 200 mm
Air Flow 900 m3/h
Air Throw 5 m
