Introduction

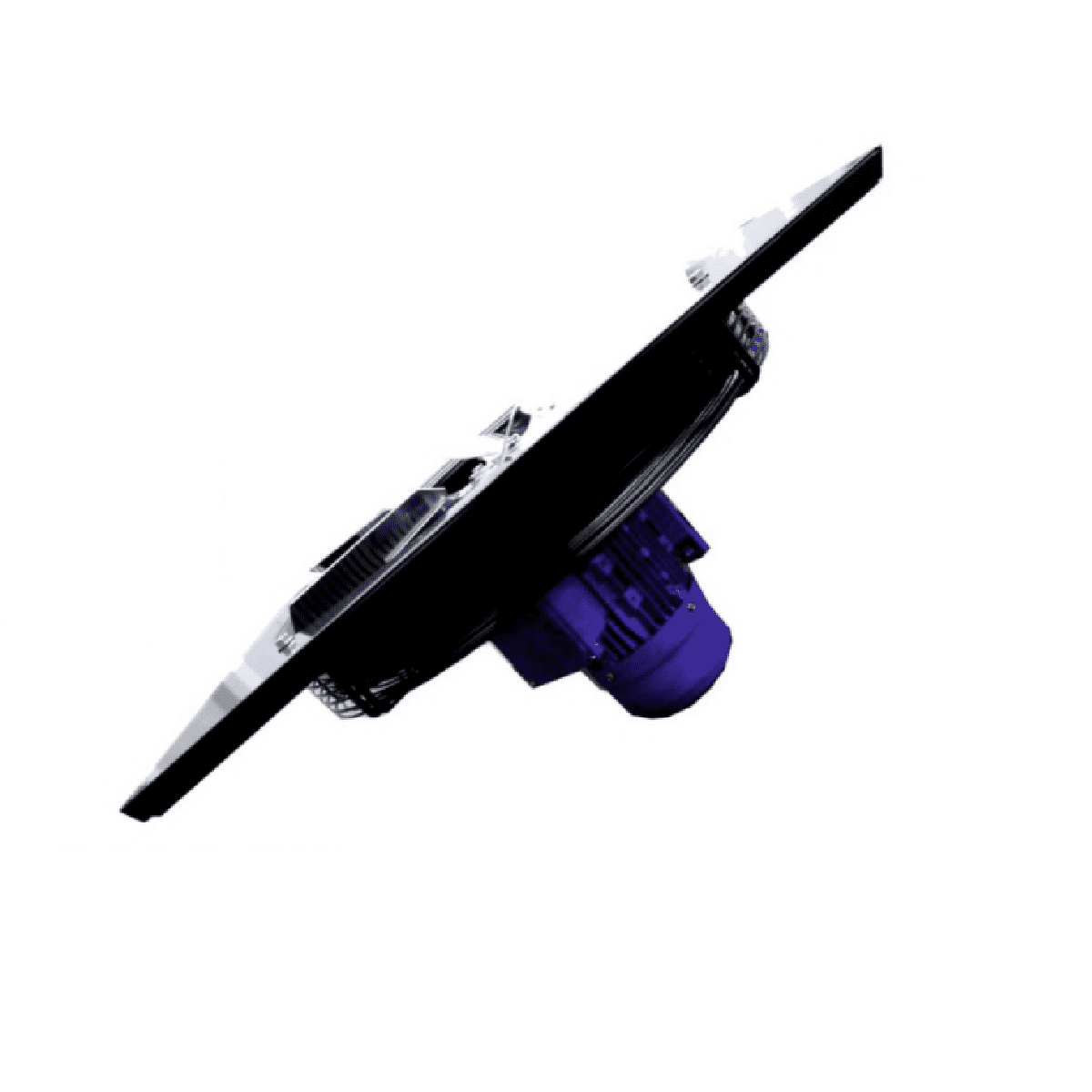

The PSP PMAHD3-350S2-0.18 is a 350 mm three-phase plate-mounted axial fan designed for industrial and commercial air movement applications. Fitted with an S-series impeller and a robust 380-415 V ECM motor, it offers high efficiency and long-term reliability for extraction, cooling and process ventilation. Built for continuous duty, it delivers stable airflow and quiet operation in demanding environments.

Key Product Features

• Three-phase 380-415V~50Hz/60Hz ECM motor

• S-series impeller for smooth, balanced air movement

• Rugged plate-mounted housing for industrial use

• IP44 protection and Class F insulation

• Dual-rated for sucking and blowing applications

• Sealed-for-life bearings reduce maintenance

• Operational temperature range –25 °C to +60 °C

• Quiet and efficient for continuous ventilation

• Ideal for factories, production areas and HVAC systems

Disclaimer

Prices are subject to change. Specifications may vary depending on configuration.
