Introduction

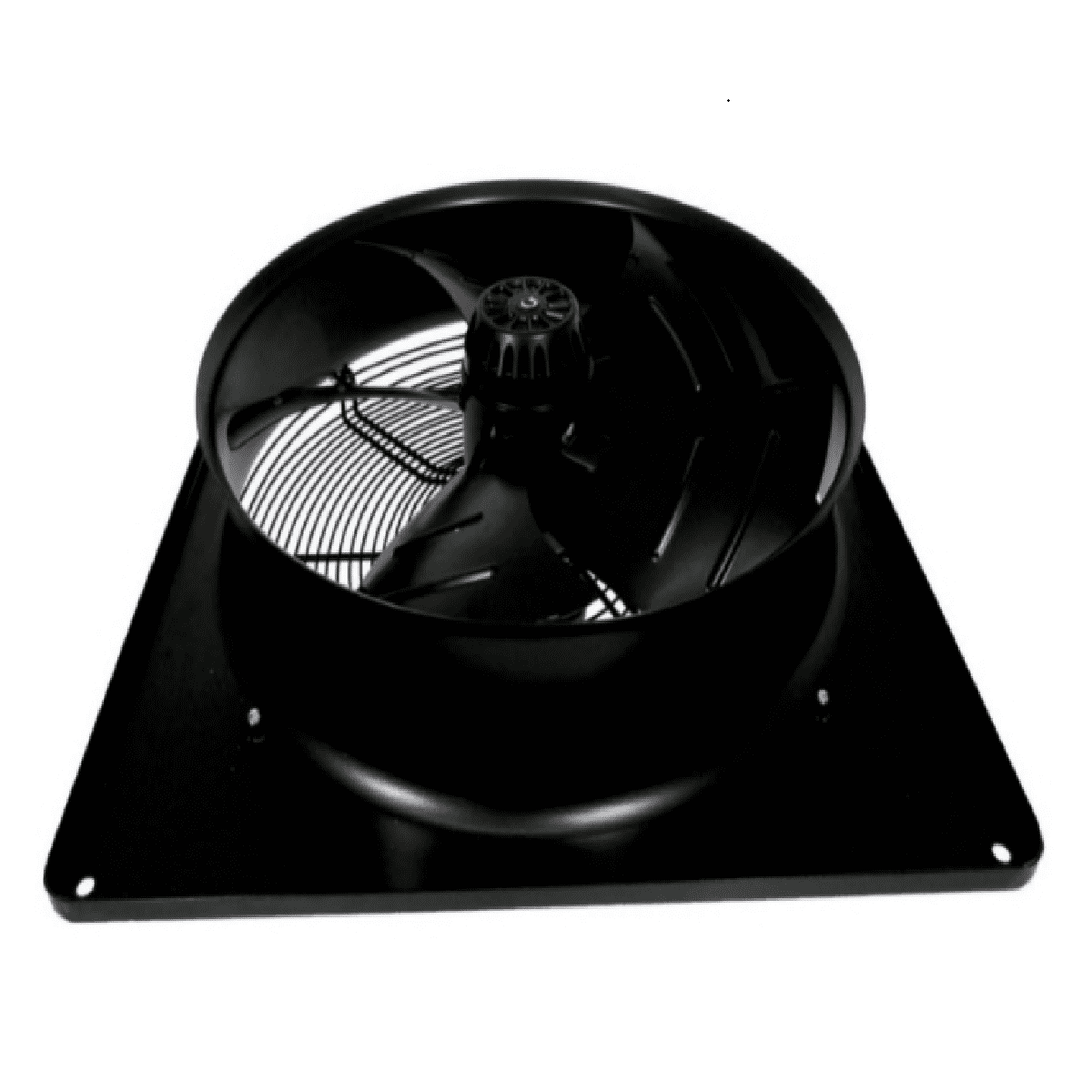

The PSP PMA1-350B4-1 is a plate mounted axial fan designed for efficient air supply and circulation in larger commercial and industrial ventilation systems. Operating on a single-phase 230V~50Hz/60Hz supply, this model features a PSC motor and a robust plate-mounted construction for straightforward wall and panel installation. With a low-speed motor, it provides quieter operation while maintaining stable airflow performance. Built with sealed-for-life ball bearings and a totally enclosed motor, it ensures reliable, low-maintenance operation in continuous-duty environments. This version is configured for blowing airflow, making it ideal for fresh air supply and cooling applications.
Key Product Features
Single-phase 230V~50Hz/60Hz PSC motor
Plate mounted axial fan design for straightforward installation

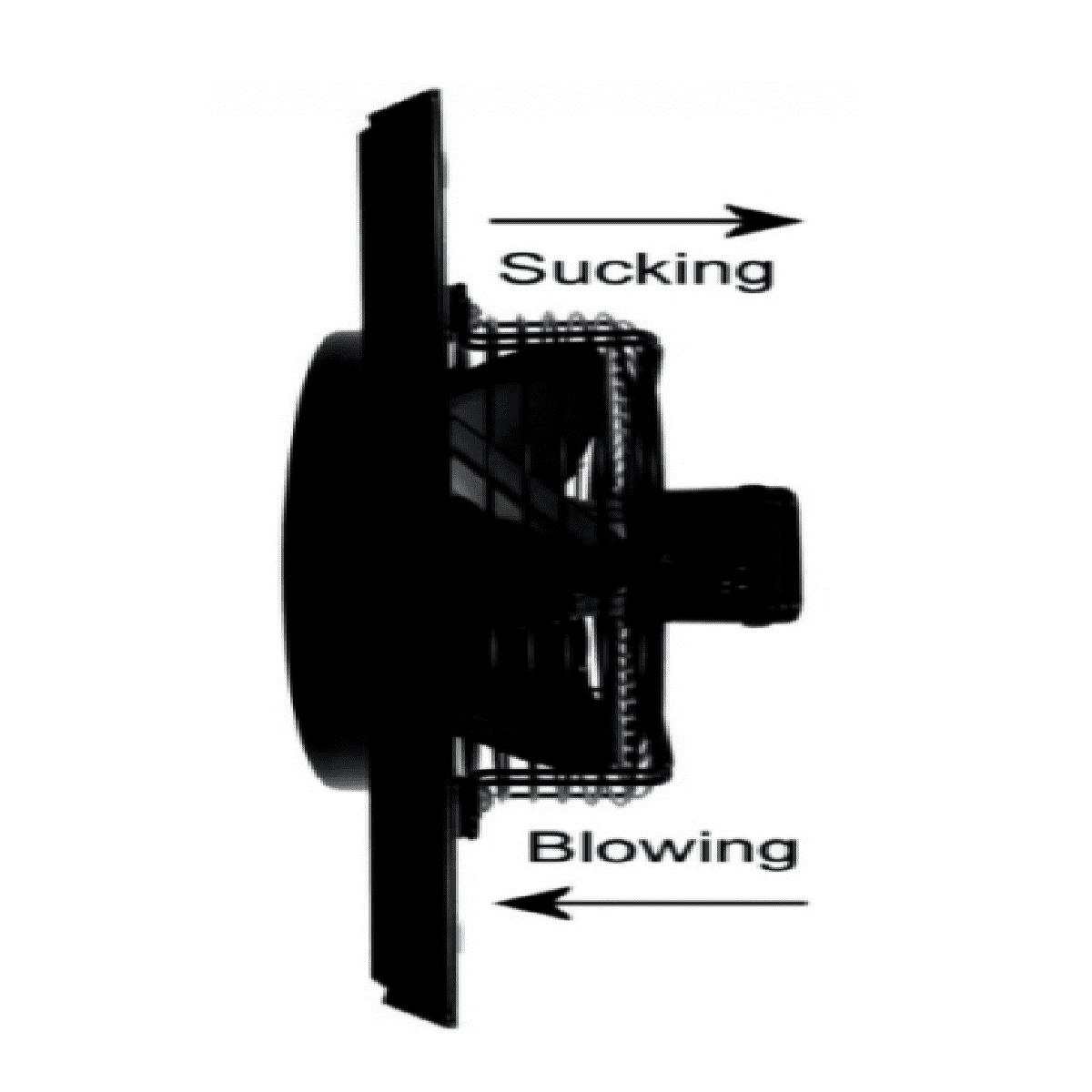

Blowing airflow configuration for supply air applications
350mm blade diameter
Motor speed: 1400 RPM
Totally enclosed motor construction
IP54 motor protection rating
Class F insulation for enhanced durability
Sealed-for-life ball bearings
Continuously rated air-over-motor design
Operating temperature range from –40°C to +60°C
Lower speed operation for reduced noise levels
Suitable for wall mounting, panel mounting and OEM ventilation systems
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
