The PSP PMA1-300B-EC-2 is a high-performance plate-mounted axial fan with an ECM motor, specifically designed to provide efficient blowing airflow in medium to large-scale ventilation applications. Its variable-speed control, enhanced by the PSRC-EC Potentiometer, ensures precise airflow management, making it ideal for use in HVAC systems, cooling units, and air extraction systems. This fan’s robust construction and energy-efficient operation ensure long-lasting, reliable performance in industrial and commercial environments.
Why Choose the PSP PMA1-300B-EC-2?
The PSP PMA1-300B-EC-2 is a powerful solution for ventilation systems requiring high-efficiency airflow. With the ECM motor, it offers superior energy savings, while the PSRC-EC Potentiometer enables flexibility in adjusting airflow to meet system demands. Its durable construction and IP44 rating provide reliable operation in harsh environments, while the sealed-for-life bearings reduce maintenance, making it ideal for continuous use in demanding applications.
Key Product Features:
- ECM Motor: Delivers energy-efficient performance, reducing operational costs.
- Variable Speed Control with PSRC-EC Potentiometer: Provides adjustable airflow to suit varying system needs.
- Single Phase Operation: Compatible with standard electrical setups at 230V~50Hz/60Hz.
- IP44 Enclosure Rating: Provides protection against dust and water ingress, making it suitable for industrial use.
- Sealed for Life Bearings: Maintenance-free bearings for long-term operation with minimal downtime.
- Compact Design: Easily integrates into existing systems, saving space while maintaining performance.
- Temperature Range: Operates within a range of -25°C to +60°C, providing versatility across different environments.

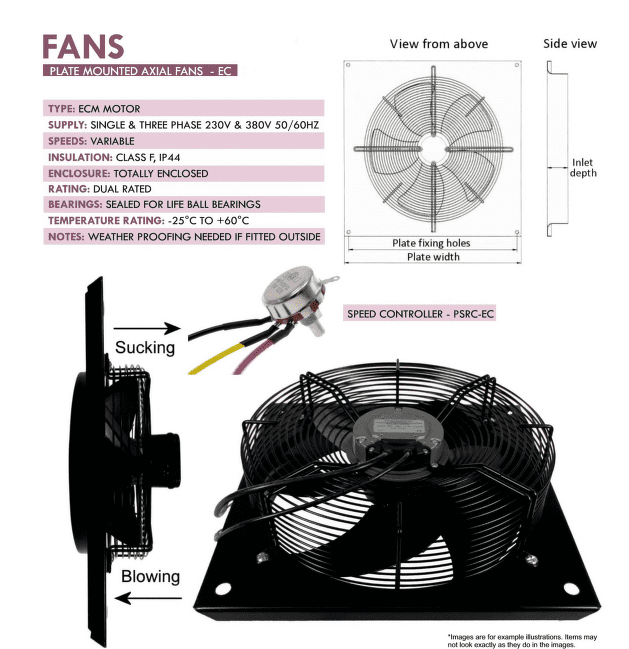

Technical Specifications:
- Part Number: PMA1-300B-EC-2
- Phase Supply: 1PH
- Blade Diameter: 300 mm
- Motor RPM: 3150
- Inlet Diameter: 310 mm
- Plate Width: 360 mm
- Plate Fixing Holes: 310 mm
- Inlet Depth: 50 mm
- Power Supply: 230V~50Hz/60Hz
- Insulation Class: Class F
- Enclosure Type: Totally Enclosed, IP44
- Temperature Rating: -25°C to +60°C
- Airflow Type: Blowing
