Introduction

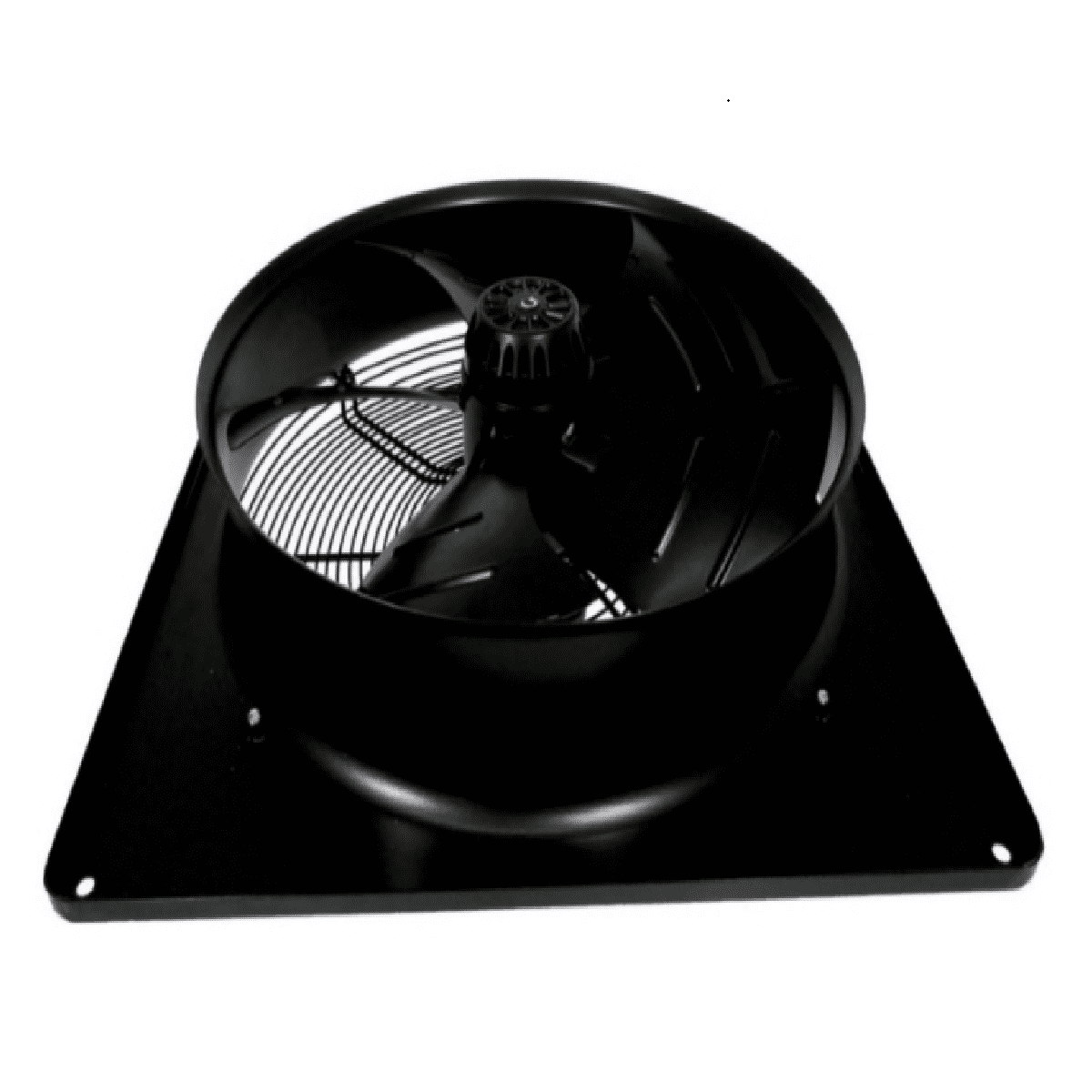

The PSP PMA1-250S4-1 is a plate mounted axial fan designed for dependable air extraction in commercial and industrial ventilation systems. Operating on a single-phase 230V~50Hz/60Hz supply, this model features a PSC motor and a durable plate-mounted construction, making it ideal for wall and panel installations. With a lower speed motor compared to higher RPM variants, it offers quieter operation while maintaining effective airflow. Built with sealed-for-life ball bearings and a totally enclosed motor, it ensures reliable, low-maintenance performance in continuous-duty environments. This version is configured for sucking airflow, making it ideal for extraction and exhaust applications.
Key Product Features
Single-phase 230V~50Hz/60Hz PSC motor
Plate mounted axial fan design for easy installation

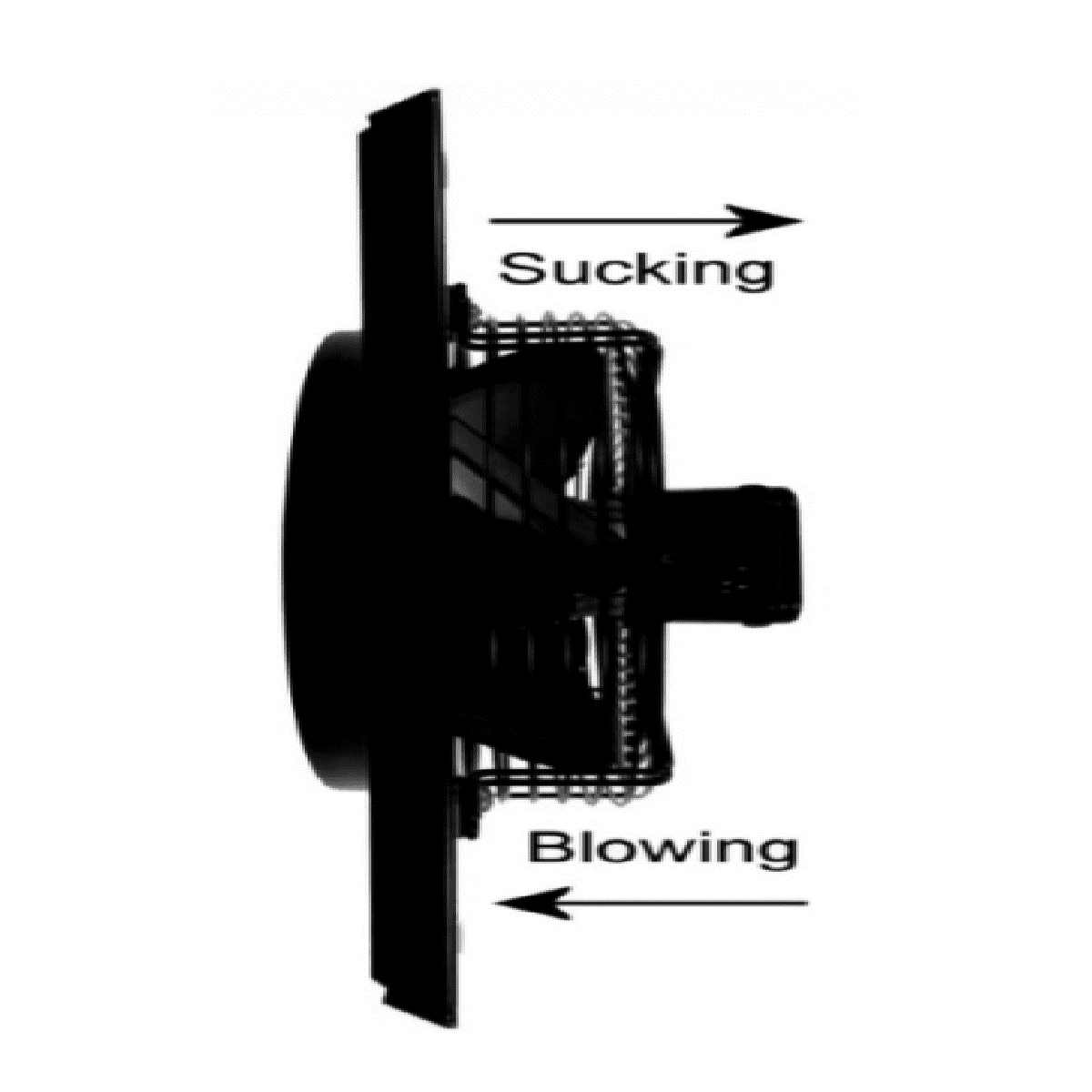

Sucking airflow configuration for extraction applications
250mm blade diameter
Motor speed: 1400 RPM
Totally enclosed motor construction
IP54 motor protection rating
Class F insulation for enhanced durability
Sealed-for-life ball bearings
Continuously rated air-over-motor design
Operating temperature range from –40°C to +60°C
Lower speed operation for reduced noise levels
Suitable for wall mounting, panel mounting and OEM ventilation systems
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
