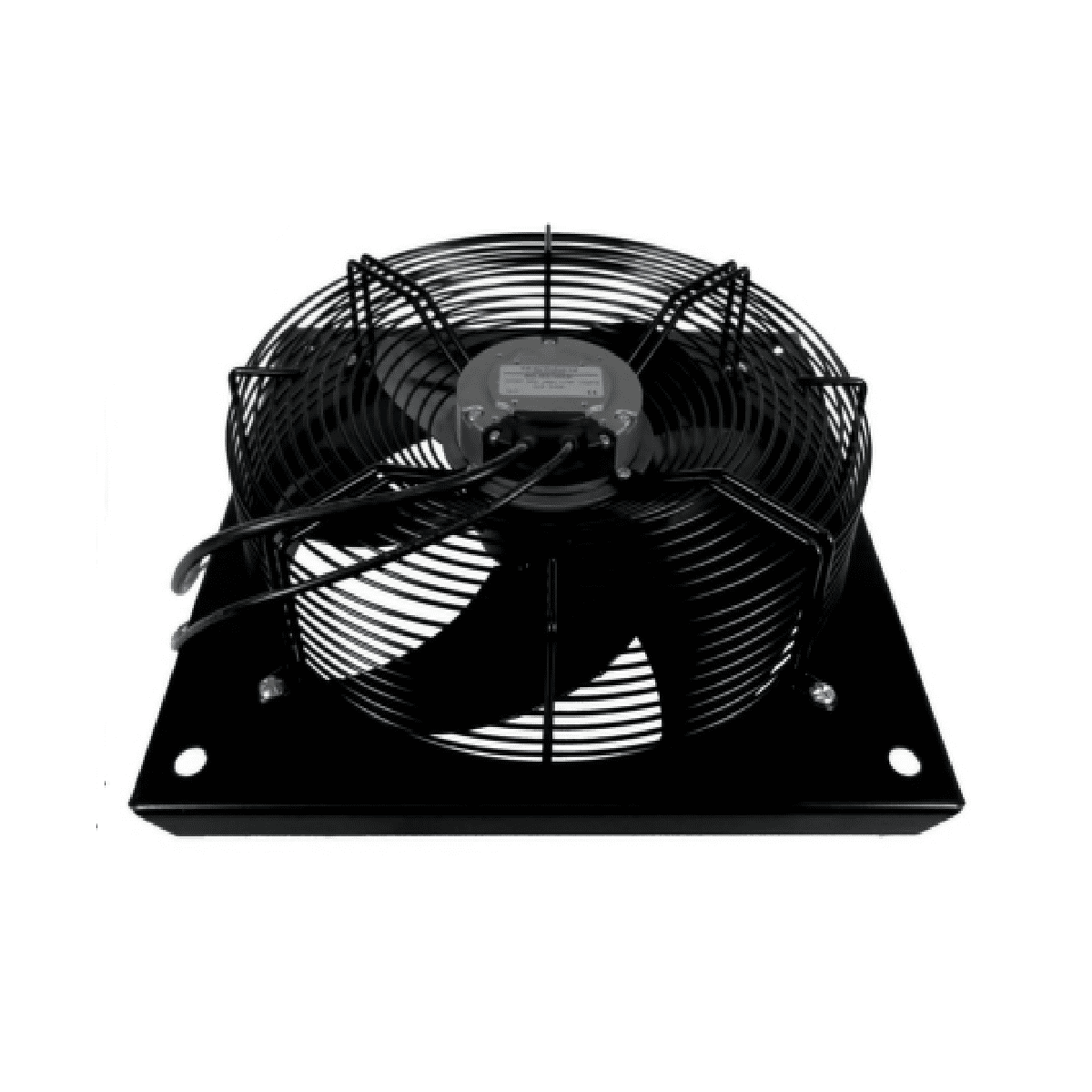

The PSP PMA1-250B-EC-2 is a high-performance plate-mounted axial fan with an ECM motor, specifically designed to provide efficient blowing airflow in small to medium-scale ventilation applications. Its variable-speed control offers precise airflow management, making it ideal for use in HVAC systems, cooling units, and air extraction systems. With its robust construction and energy-efficient operation, this fan ensures long-lasting, reliable performance for industrial and commercial environments.
Why Choose the PSP PMA1-250B-EC-2?
The PSP PMA1-250B-EC-2 provides an efficient and reliable airflow solution for small to medium-scale ventilation systems. Its ECM motor ensures energy efficiency, while the variable-speed control, enhanced by the PSRC-EC Potentiometer, offers flexibility to adjust the airflow to suit specific system requirements. Its durable construction and IP44 rating make it a reliable choice for industrial environments. Additionally, its sealed-for-life bearings offer low maintenance, making it an ideal solution for long-term use in HVAC systems, cooling applications, and general ventilation.
Key Product Features:
- ECM Motor: Provides energy-efficient performance and reduced power consumption.
- Variable Speed Control with PSRC-EC Potentiometer: Allows for adjustable airflow to meet varying system requirements.
- Single Phase Operation: Compatible with standard electrical setups at 230V~50Hz/60Hz.
- IP44 Enclosure Rating: Ensures protection against dust and water ingress, suitable for industrial use.
- Sealed for Life Bearings: Maintenance-free bearings for dependable, long-term operation.
- Compact Design: Easy to integrate into existing systems without compromising space.
- Temperature Range: Operates within a range of -25°C to +60°C, ensuring versatility in different environments.

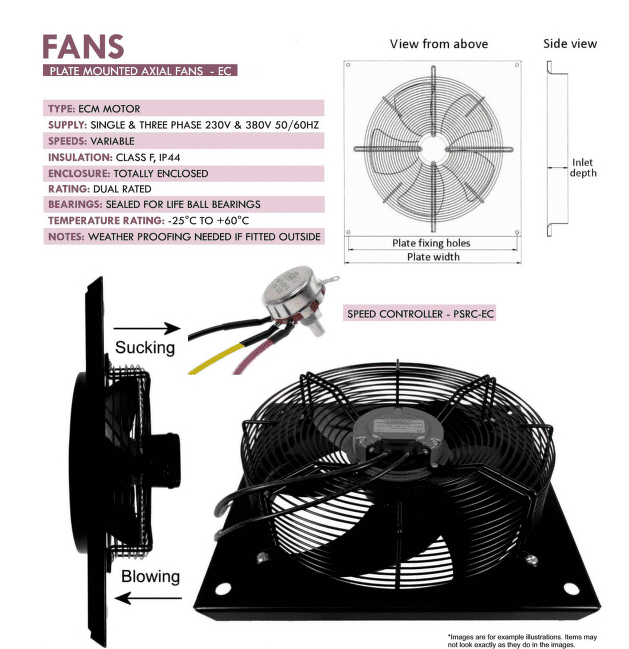

Technical Specifications:
- Part Number: PMA1-250B-EC-2
- Phase Supply: 1PH
- Blade Diameter: 250 mm
- Motor RPM: 3150
- Inlet Diameter: 260 mm
- Plate Width: 310 mm
- Plate Fixing Holes: 260 mm
- Inlet Depth: 45 mm
- Power Supply: 230V~50Hz/60Hz
- Insulation Class: Class F
- Enclosure Type: Totally Enclosed, IP44
- Temperature Rating: -25°C to +60°C
- Airflow Type: Blowing
Disclaimer:
Images are for example illustrations. Items may not look exactly as they do in the images.
